Renogy RNG-INVT-1000-12V-C-US User Manual

6
Included Components

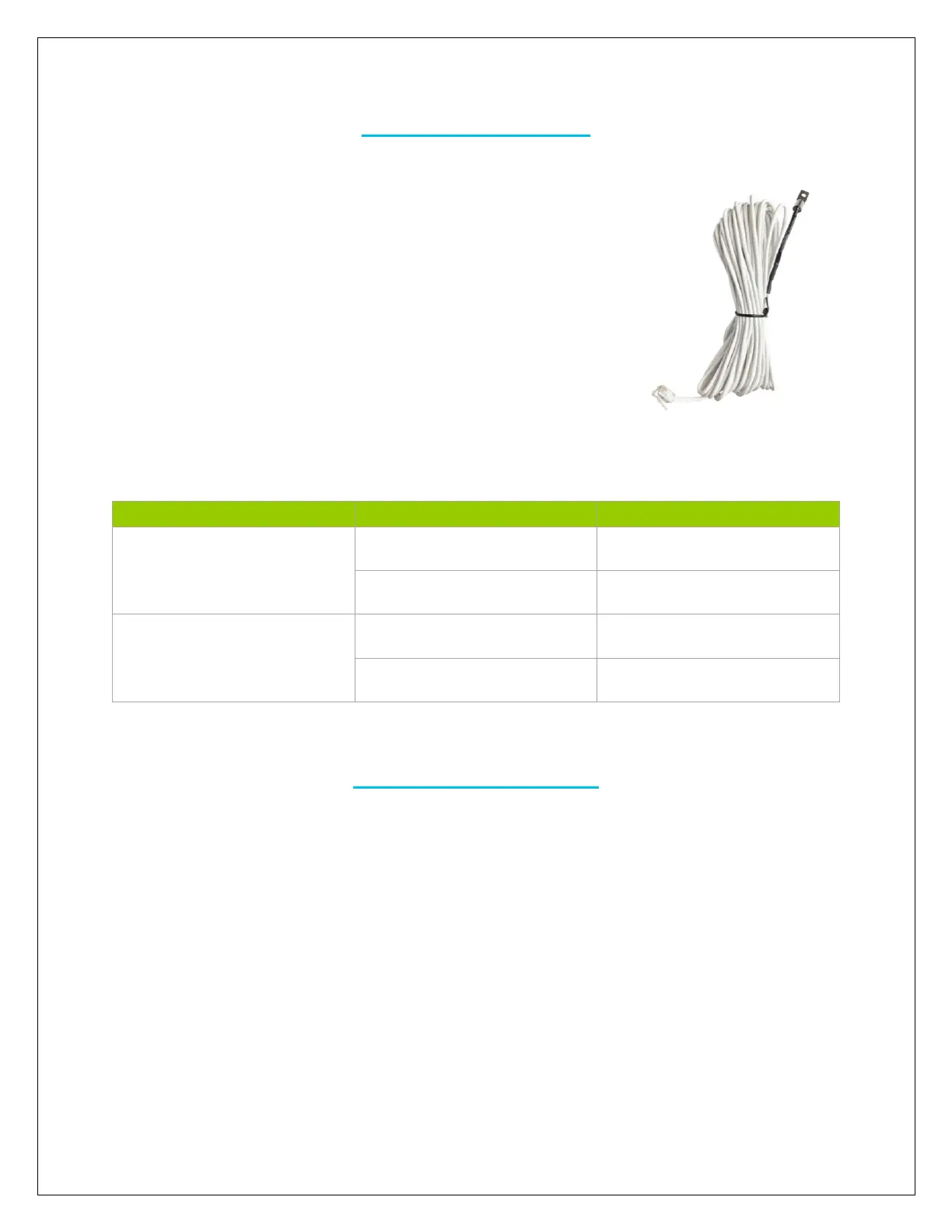

Battery Temperature Sensor (BTS)
Renogy inverter chargers come equipped with a battery
temperature sensor that will help prolong the battery life. The
temperature sensor allows the inverter charger to continuously
adjust the charging voltage based on the battery temperature.
The charging voltage will be reduced by 0.1V for every degree
of temperature above 104℉. The battery temperature sensor
should be installed on all battery banks as it ensures that the
battery receives the proper voltage. The sensor mounts on the
side of the battery.
Condition
Temperature on BTS
Operation
Charger Mode
BTS ≥ 122℉
Charger will turn off
BTS ≤ 104℉
Charger will turn on
Inverter Mode
104℉ ≤ BTS ≤ 122℉
Low voltage set point
deceased by 0.5V
BTS ≥ 122℉
Over temperature fault
Additional Components
Additional component can be purchased for extra functionality.
LCD Remote Control Module (RCM)
The inverter-chargers feature a remote LCD port for connecting this additional switch
panel. It will have the same functionality as the main panel located on the inverter-
charger such as “off”, “power saver off”, or “power saver on”. Additionally, the LCD RCM
displays input and output AC/DC voltage, output frequency, alarm notifications, and
battery status.
When connecting the LCD RCM, it will connect in parallel to the inverter charger’s main
switch board. This means to turn the inverter on, both the LCD RCM and the inverter
charger switch board need to be in the off position first. Whichever board switches first,
will power the inverter charger.
