Renovator Multi-Tool - Changing the Angle of the Attachment Tools

17
90
o
LEFT
90
o
RIGHT
45
o
LEFT
45
o
RIGHT
STRAIGHT
Typical Application: set the tool blade on an angle which will allow easier
access to the work area.
• Follow the ‘Connecting Tool Attachment’ instructions on page 16.
• Set the tool angle before replacing and tightening the bolt and washer.

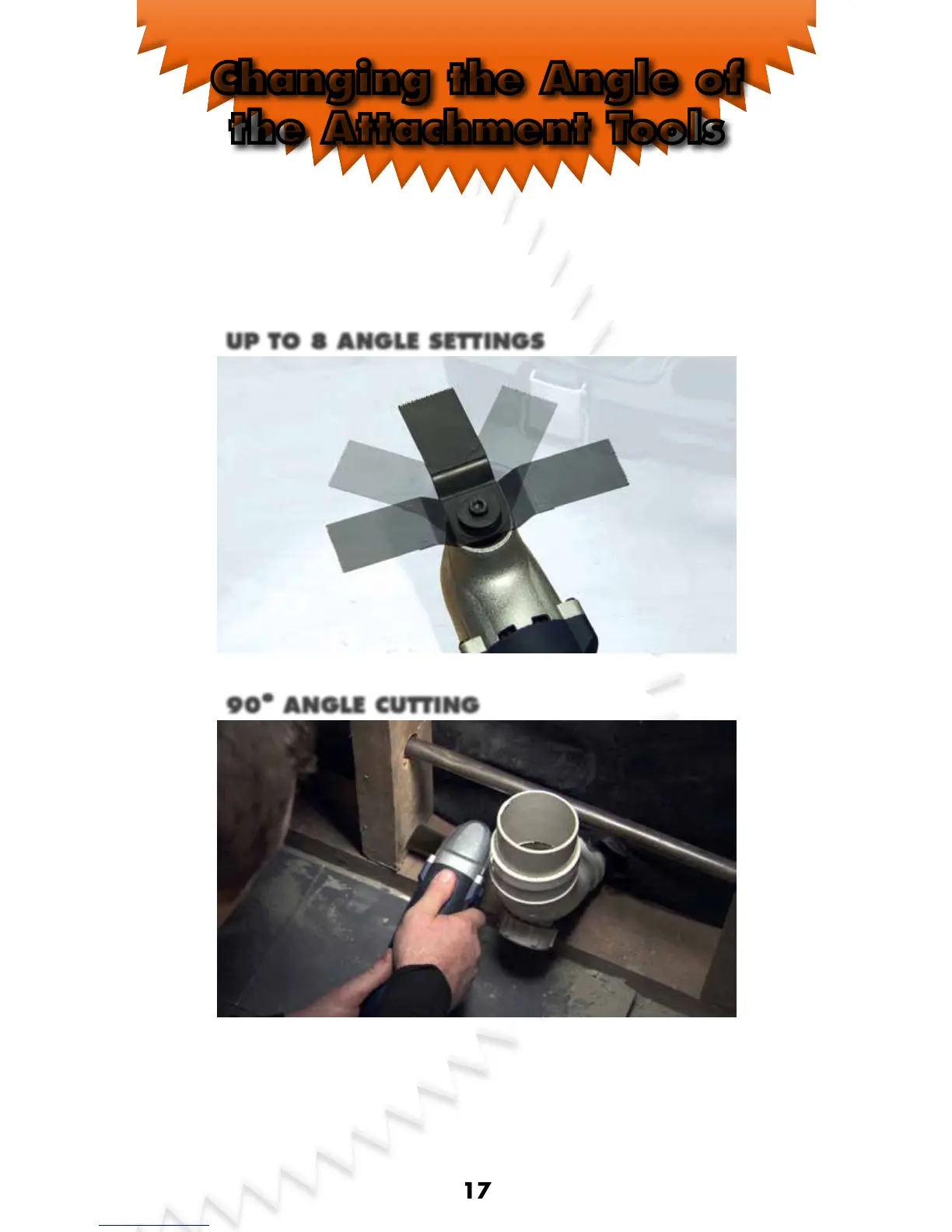

UP TO 8 ANGLE SETTINGS
90
o
ANGLE CUTTING
Changing the Angle of
the Attachment Tools
