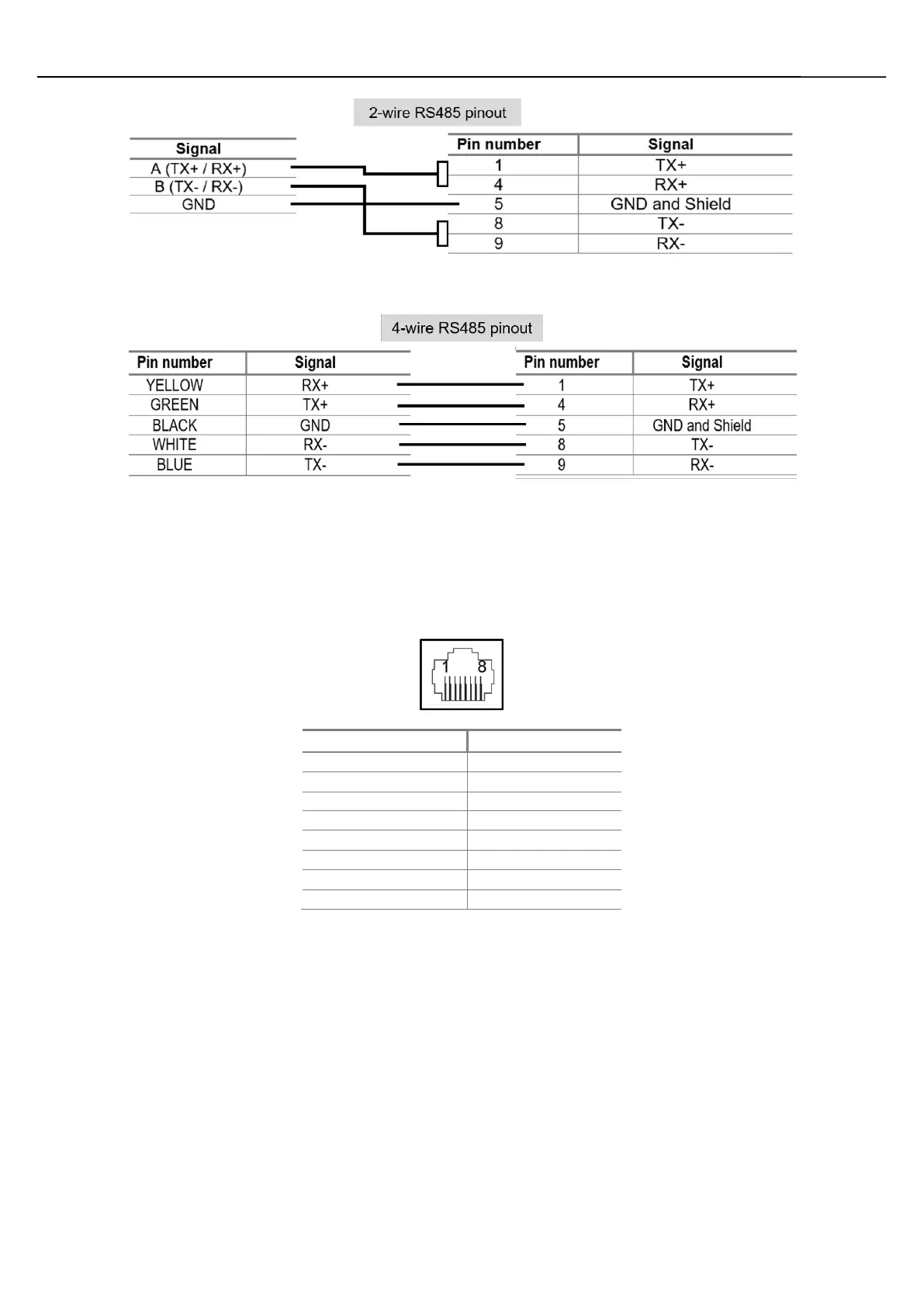

Ethernet Port
FP2 with I/Os series support Ethernet port as an ordering option. It’s having standard shielded RJ45 female
jack with built-in speed and indication LED’s.
Pin number
Signal
1
TX+
2
TX-
3
RX+
4
NC
5
NC
6
RX-
7
NC
8
NC
