Y Type Cable

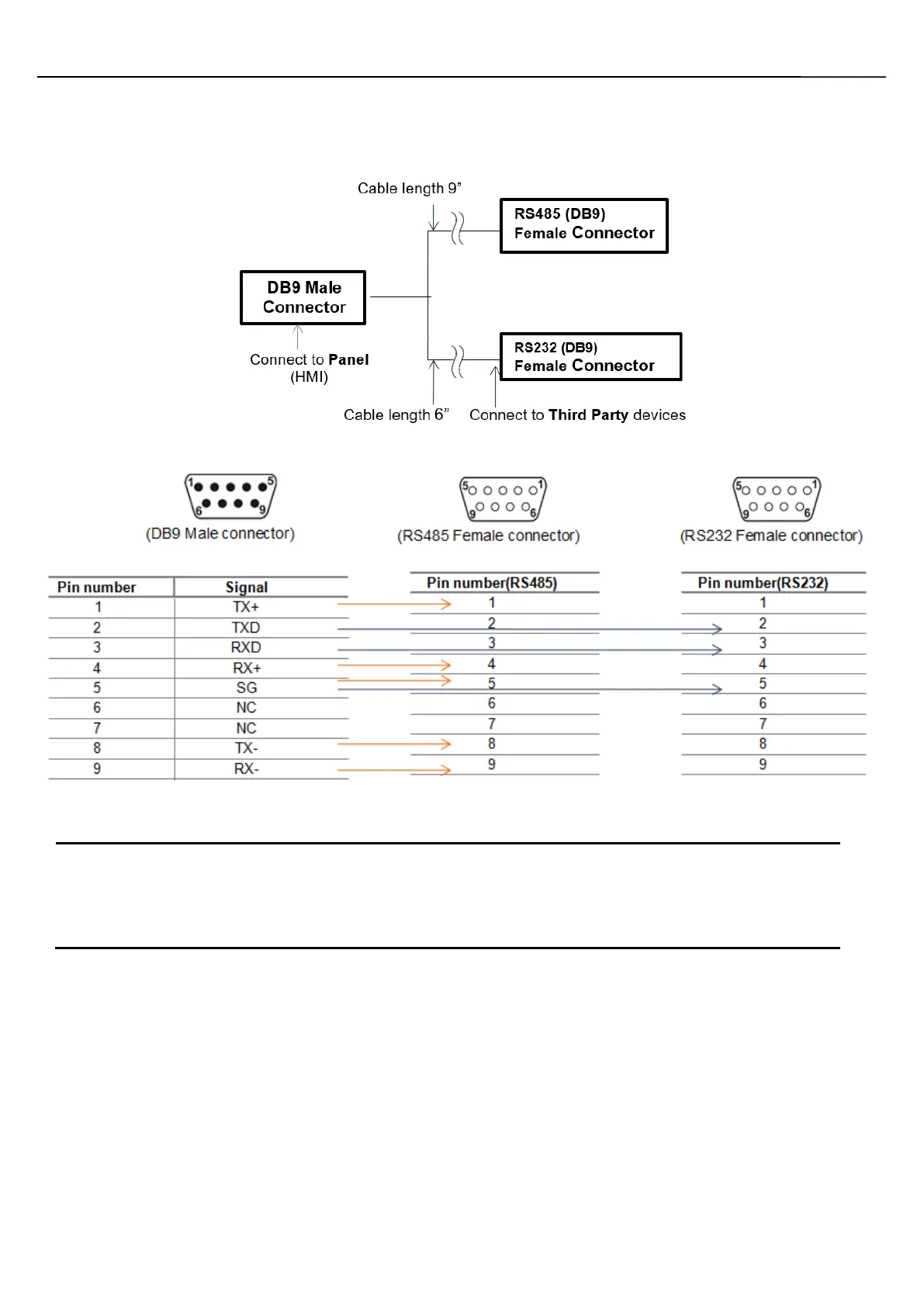

Special “Y” cable for the FP unit (two communication levels on one port).
ATTENTION
ATTENTION: DB9 port
 The 4.3” models have only one DB9 port that supports RS232 and RS485 signal
levels on different pins.
 If the user wants to connect different devices, on RS232 and RS485 levels,
simultaneously with 4.3” HMI, then he must use ‘Y’ type cable.
