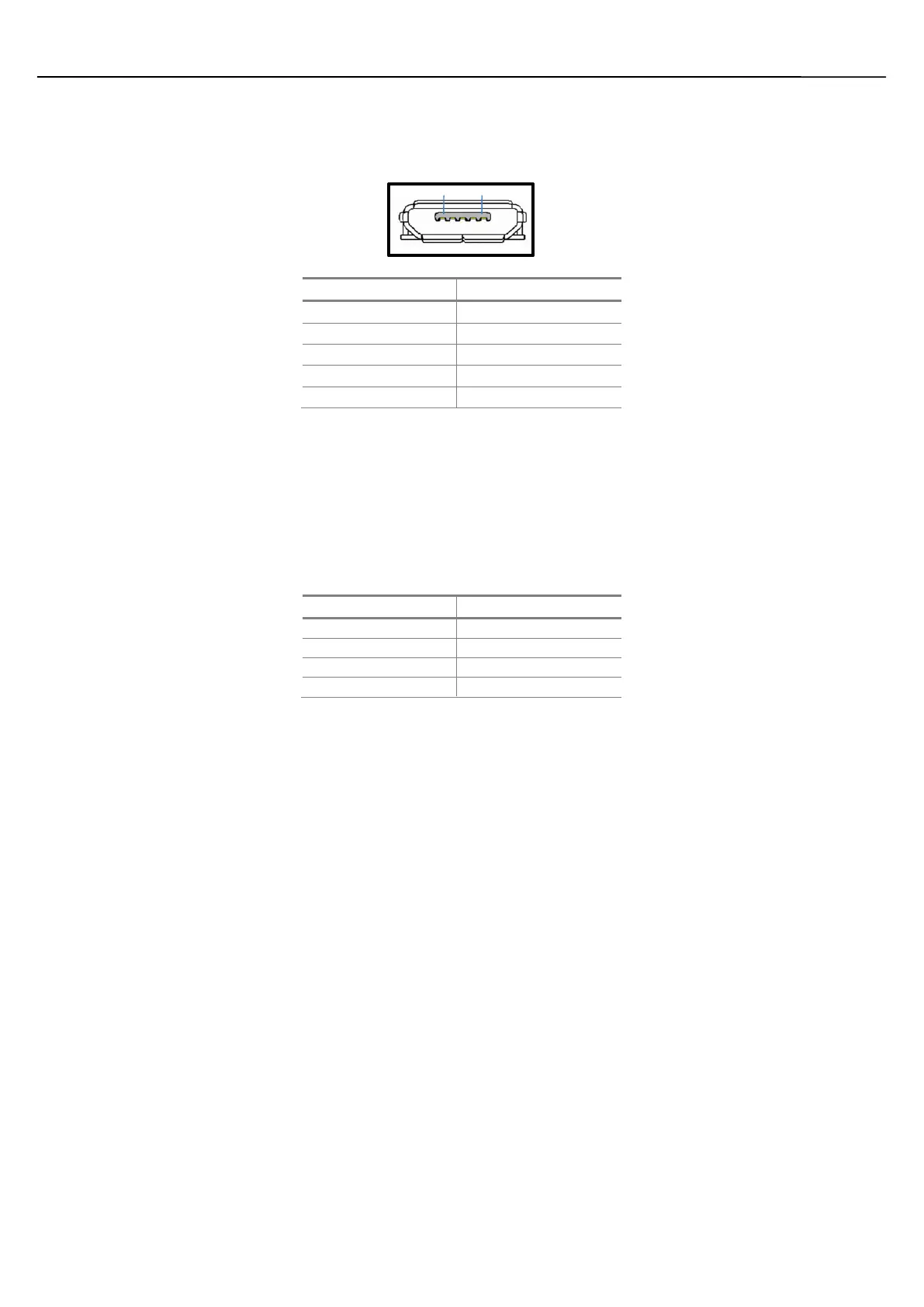

USB Device Port
FP2 with I/Os products support a Micro USB compliant with USB 2.0 specification port for programming and
monitoring.
Pin number
Signal
1
VCC
2
D-
3
D+
4
NC
5
GND
USB Host Port
FP2 with I/Os products support a USB Host compliant with USB 2.0 specification port. USB Host can
handle only USB memory stick devices and can source current up to 150mA only.
The connector used: Standard USB Type a Female connector.
Pin number
Signal
1
VCC
2
D-
3
D+
4
GND
Currently USB Host can be used for Upload and Download of Application/ Firmware only. Upload and
Download of Data Logging or Recipe over USB is not supported.
