Reolink Argus 2 Quick Start Guide

Press the button to release the
plate from the security mount.
Step 1 Step 2
Step 3
Step 4
Step 5
28 English 29English
Step 1 Step 2 Step 3
Step 4 Step 5 Step 6

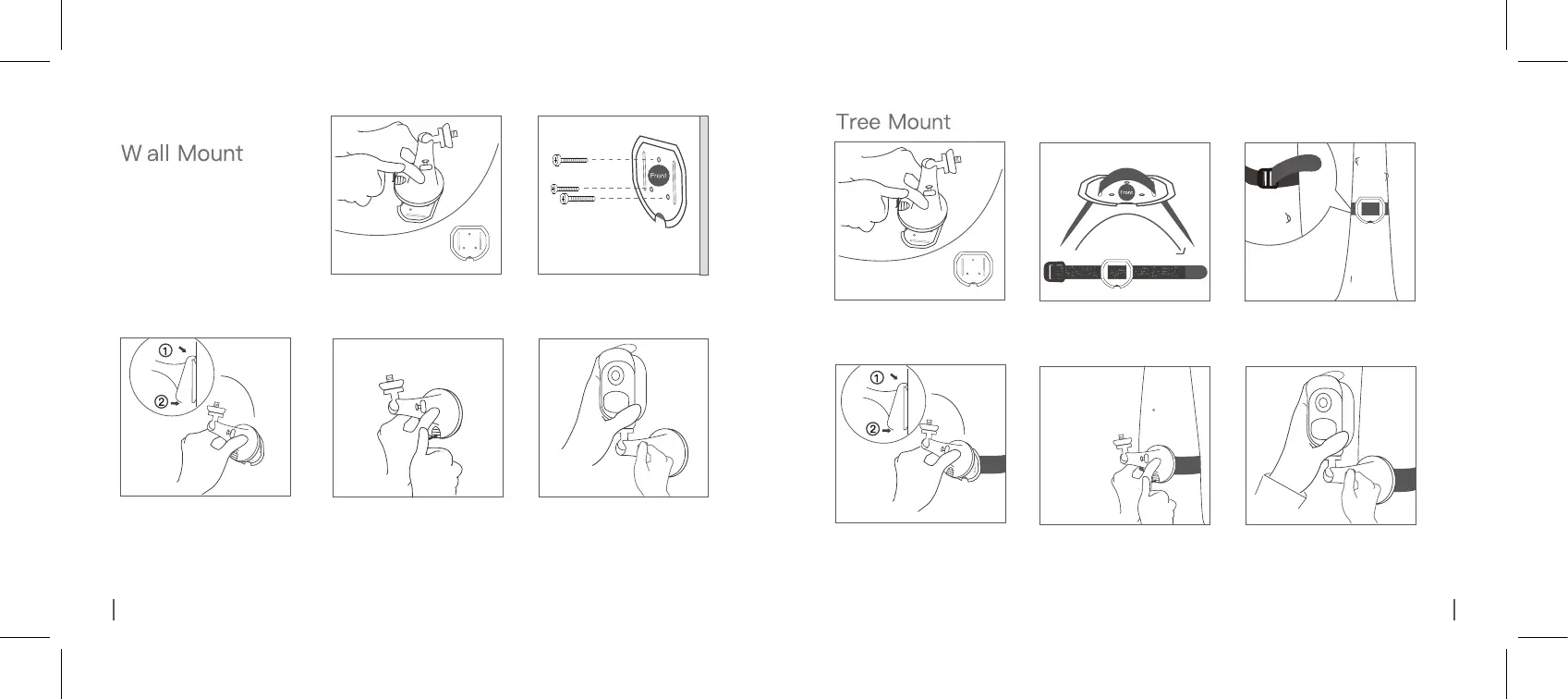

How to Install
Screw the camera, adjust its direction
and tighten the knob to fix it.
Screw the camera, adjust its direction
and tighten the knob to fix it.
Press the security mount button
until its plate clicks into the mount.
Thread the hook & loop strap
through the slots.
Press the button to release the
plate from the security mount.
Fasten the warp strap to the tree.
Latch the security mount on its plate
(Make sure the top edge of the backing
plate is inserted into the mount.)
Screw the security mount plate
into the wall.
Press the security mount button
until its plate clicks into the mount.
Latch the security mount on its
plate.(Make sure the top edge of
the backing plate is inserted into
the mount.)

Reolink Argus 2 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Form factor	-
Weatherproof	Yes
Mounting type	Desk/Wall
Product color	Black, White
Protection features	Freeze resistant, Heat resistant, Waterproof
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/2.8 \
Compatible memory cards	MicroSD (TransFlash)
Night vision distance	10 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Battery life	0.5 year(s)
Battery voltage	3.63 V
Battery capacity	5200 mAh
Power source type	Battery
Battery technology	Lithium
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Mobile operating systems supported	Android, iOS
Number of cameras	1
Detection angle	120 °
Detection distance	9 m
Security algorithms	WEP, WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	59 mm
Width	65 mm
Height	119 mm
Weight	350 g
