Reolink Argus Eco User Manual

Reolink Wireless Battery-powered Camera
10
Charge the Battery
Reolink Argus 2/Argus Pro has its rechargeable battery which is removable, and
there is a micro USB port for charging on the back of the battery.
The charger is a USB adapter (DC 9/5 Volts, not included in the box) which is
commonly used for smartphones. A micro USB cable is included in the box.
Here we’ll guide you to charge Reolink Argus 2/Argus Pro by using the following
three different methods.

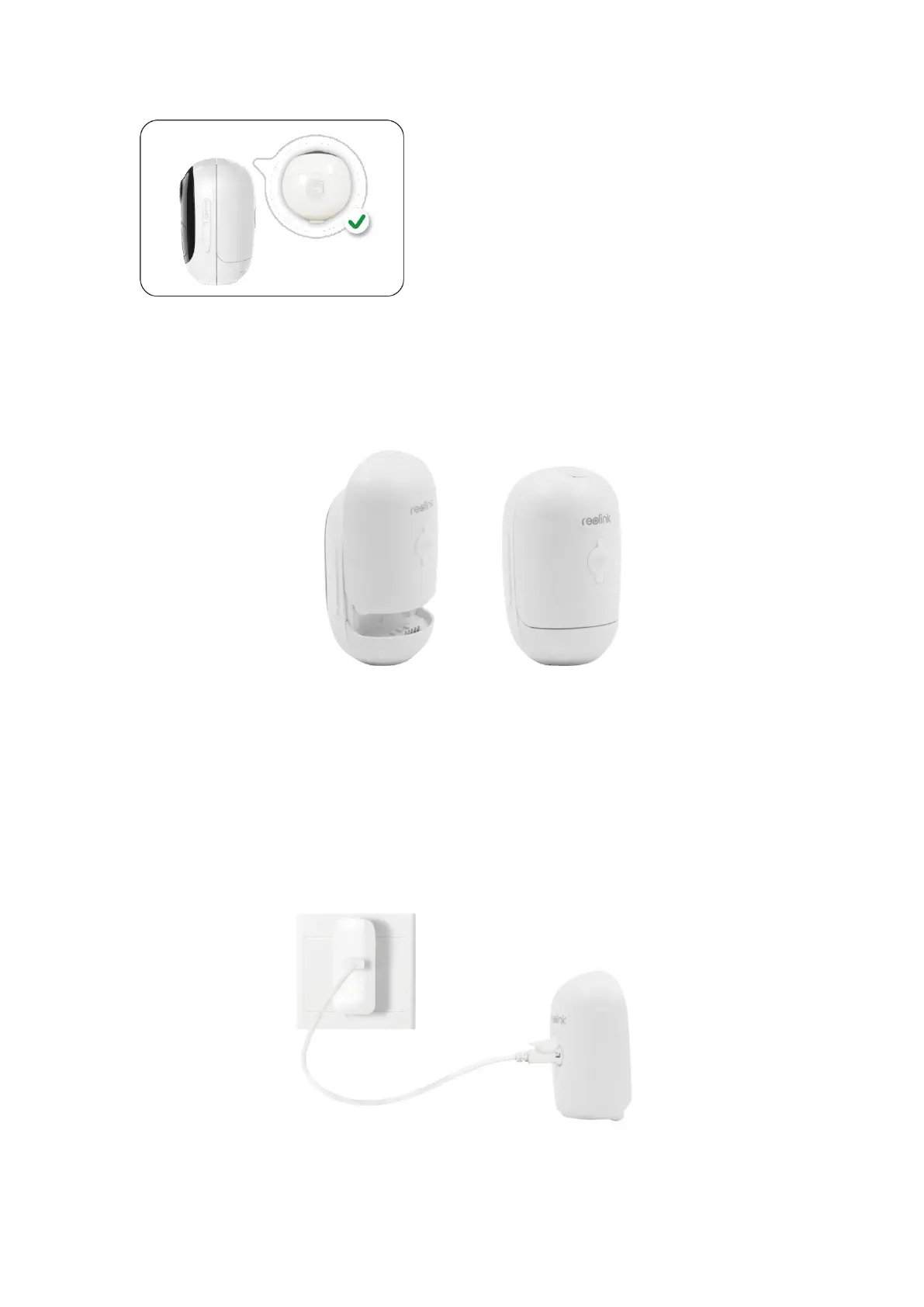

Method 1: Pull out the battery and open the charging port, then connect the
battery with the USB adapter via a USB cable and plug it into the electrical outlet.
To remove the battery from
the camera, please pull the
button on the top of the
battery and slide it upwards.

Reolink Argus Eco Specifications

Video

video resolution	1080p HD at 15 frames/sec
field of view	100° diagonal
night vision range	10 m (33 ft)

PIR Detection & Alerts

PIR detection distance	up to 10 m (33 ft)
PIR detection angle	100° horizontal
audio alert	customized voice-recordable alerts

General

operating temperature range	-10°C to 55°C (14°F to 131°F)
weather resistance	IP65 certified weatherproof
size	71 x 186 mm

Weight and Dimensions

weight	320 g (11.2 oz)
operating frequency	2412MHz—2472MHz
maximum transmitted power	18 dBm
