Reolink Argus Eco User Manual

Reolink Wireless Battery-powered Camera
20

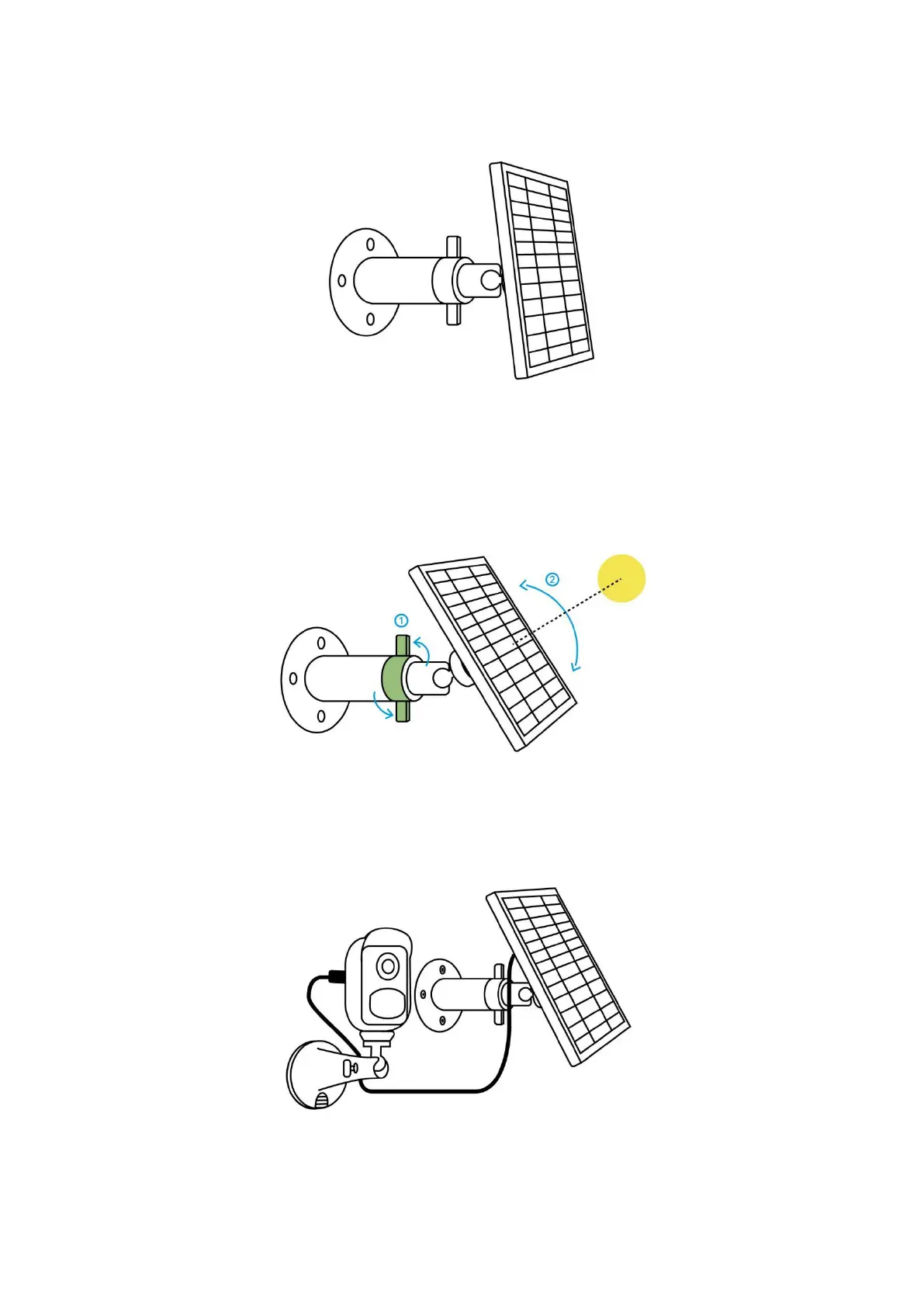

3. Slot the solar panel into the bracket and make sure that it's secure.
4. Loosen the adjusting control on the bracket and adjust the angle of the solar
panel to make it receive direct sunlight exposure, then tighten the adjusting
control to fix the solar panel.
5. Connect the solar panel to a Reolink camera with the micro USB cable.

Reolink Argus Eco Specifications

Video

video resolution	1080p HD at 15 frames/sec
field of view	100° diagonal
night vision range	10 m (33 ft)

PIR Detection & Alerts

PIR detection distance	up to 10 m (33 ft)
PIR detection angle	100° horizontal
audio alert	customized voice-recordable alerts

General

operating temperature range	-10°C to 55°C (14°F to 131°F)
weather resistance	IP65 certified weatherproof
size	71 x 186 mm

Weight and Dimensions

weight	320 g (11.2 oz)
operating frequency	2412MHz—2472MHz
maximum transmitted power	18 dBm
