Reolink Argus Eco User Manual

Reolink Wireless Battery-powered Camera
55
Tips for Improving Detection Alarms
When the camera failed to detect some motion, below tips can help improve the
motion detection accuracy.
1. Adjust the sensitivity level to high.
2. Adjust the installation angel of the camera in the direction crossing the
possible intruder instead of facing him/her so that it can detect motion more
accurately.

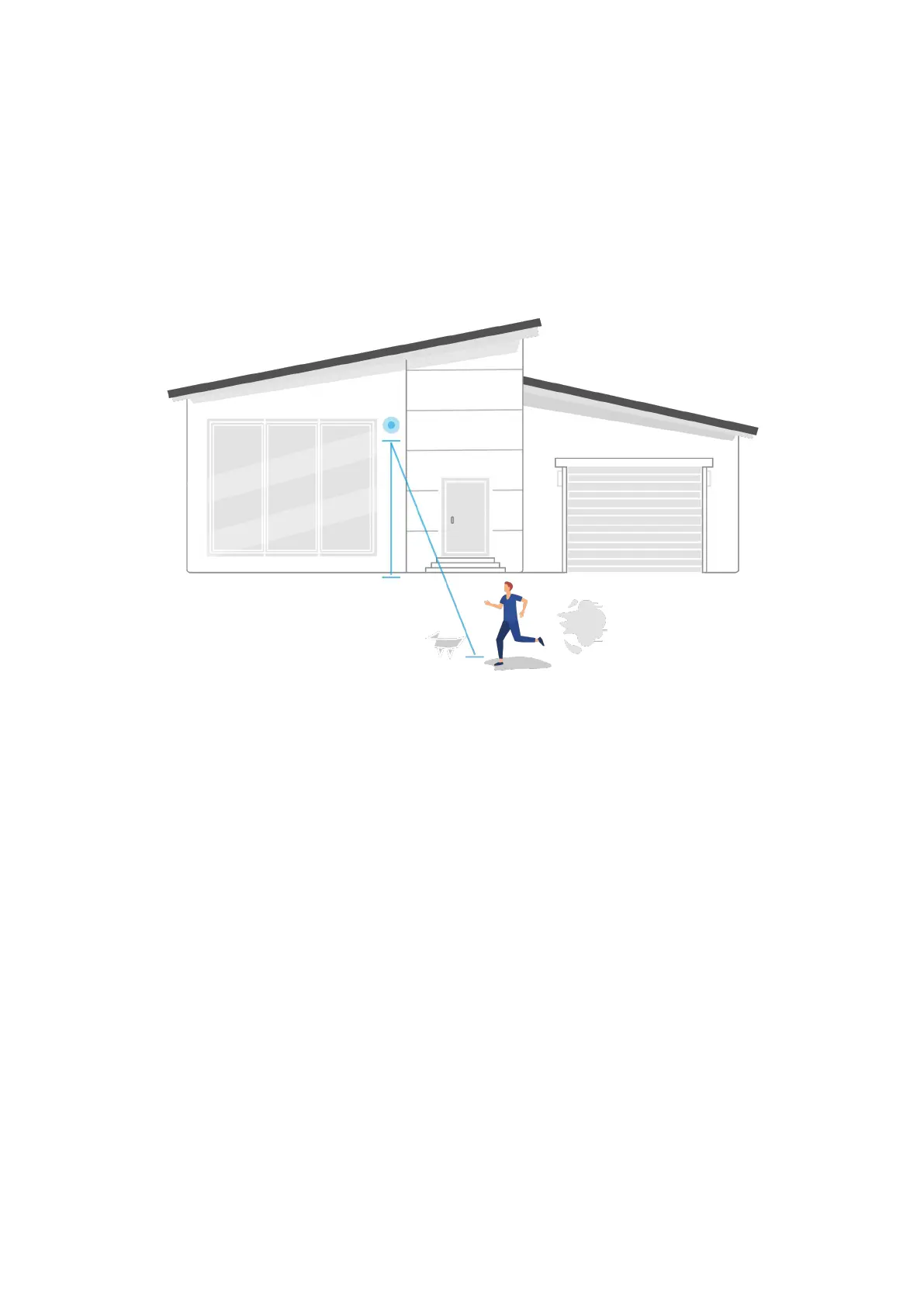

3. Adjust the installation height, it’s suggested to mount camera 2 to 3 meters
from the ground. Mount the camera too low or too high both will cause it hard
to detect alarm.
4. Ensure the detecting target is within the detection range of the PIR sensor.
Ideal monitoring range is from 7ft to 33ft.
Mounting Height:
2-3 Meters
PIR Detecting Distance:

Reolink Argus Eco Specifications

Video

video resolution	1080p HD at 15 frames/sec
field of view	100° diagonal
night vision range	10 m (33 ft)

PIR Detection & Alerts

PIR detection distance	up to 10 m (33 ft)
PIR detection angle	100° horizontal
audio alert	customized voice-recordable alerts

General

operating temperature range	-10°C to 55°C (14°F to 131°F)
weather resistance	IP65 certified weatherproof
size	71 x 186 mm

Weight and Dimensions

weight	320 g (11.2 oz)
operating frequency	2412MHz—2472MHz
maximum transmitted power	18 dBm
