Reolink Argus Eco User Manual

Reolink Wireless Battery-powered Camera
71

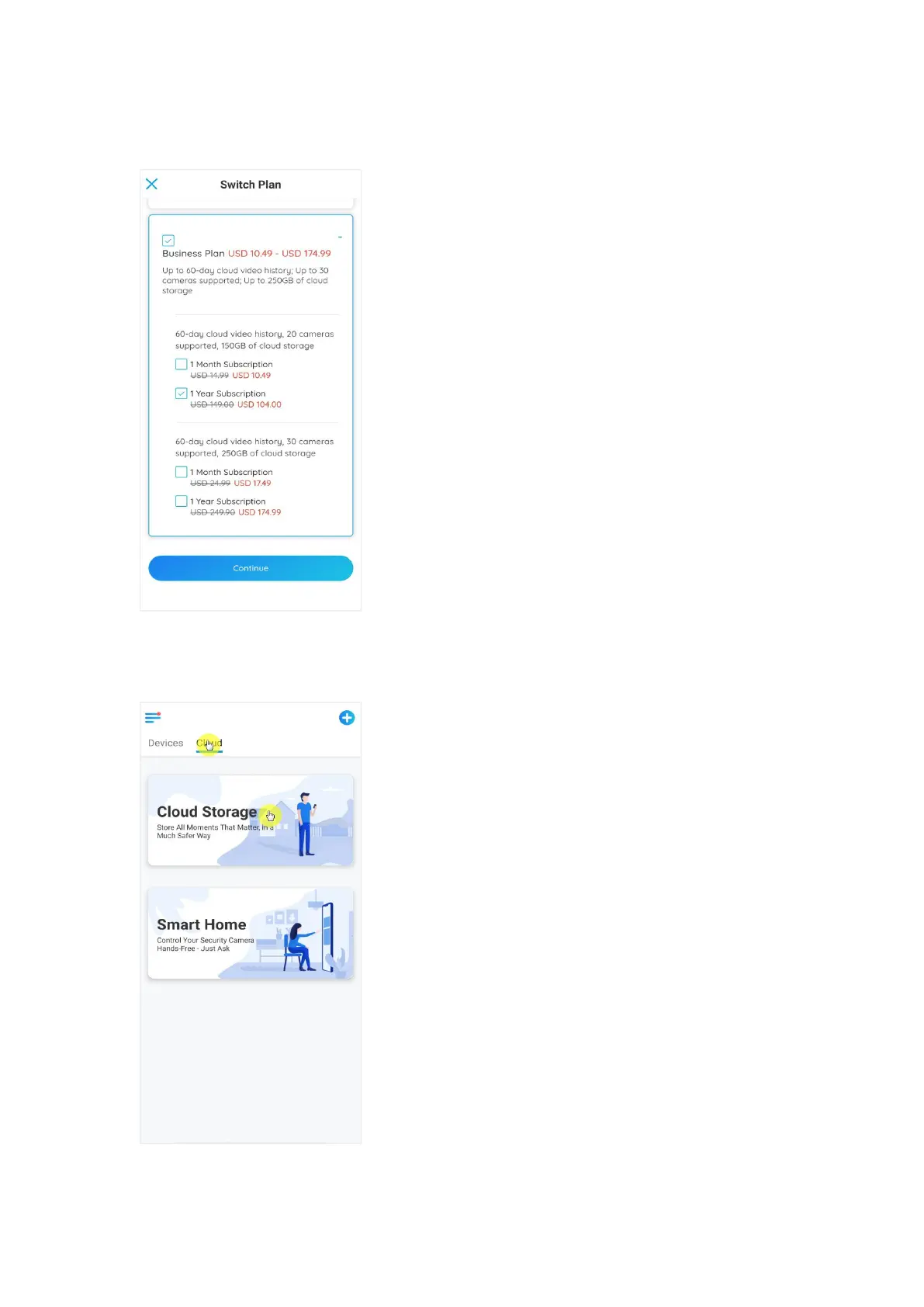

3. Choose the plan you want to upgrade to, then tap Continue to checkout. Once
upgraded, all cameras currently bound will be updated to the new plan.
Playback and Download the Cloud Recording
Via Reolink App
1. Tap Cloud Storage, and it’ll show uploaded recordings autocratically.
2. Select the device and date to find the recordings you want to play back, then

Reolink Argus Eco Specifications

Video

video resolution	1080p HD at 15 frames/sec
field of view	100° diagonal
night vision range	10 m (33 ft)

PIR Detection & Alerts

PIR detection distance	up to 10 m (33 ft)
PIR detection angle	100° horizontal
audio alert	customized voice-recordable alerts

General

operating temperature range	-10°C to 55°C (14°F to 131°F)
weather resistance	IP65 certified weatherproof
size	71 x 186 mm

Weight and Dimensions

weight	320 g (11.2 oz)
operating frequency	2412MHz—2472MHz
maximum transmitted power	18 dBm
