Reolink Keen Ranger PT User Manual

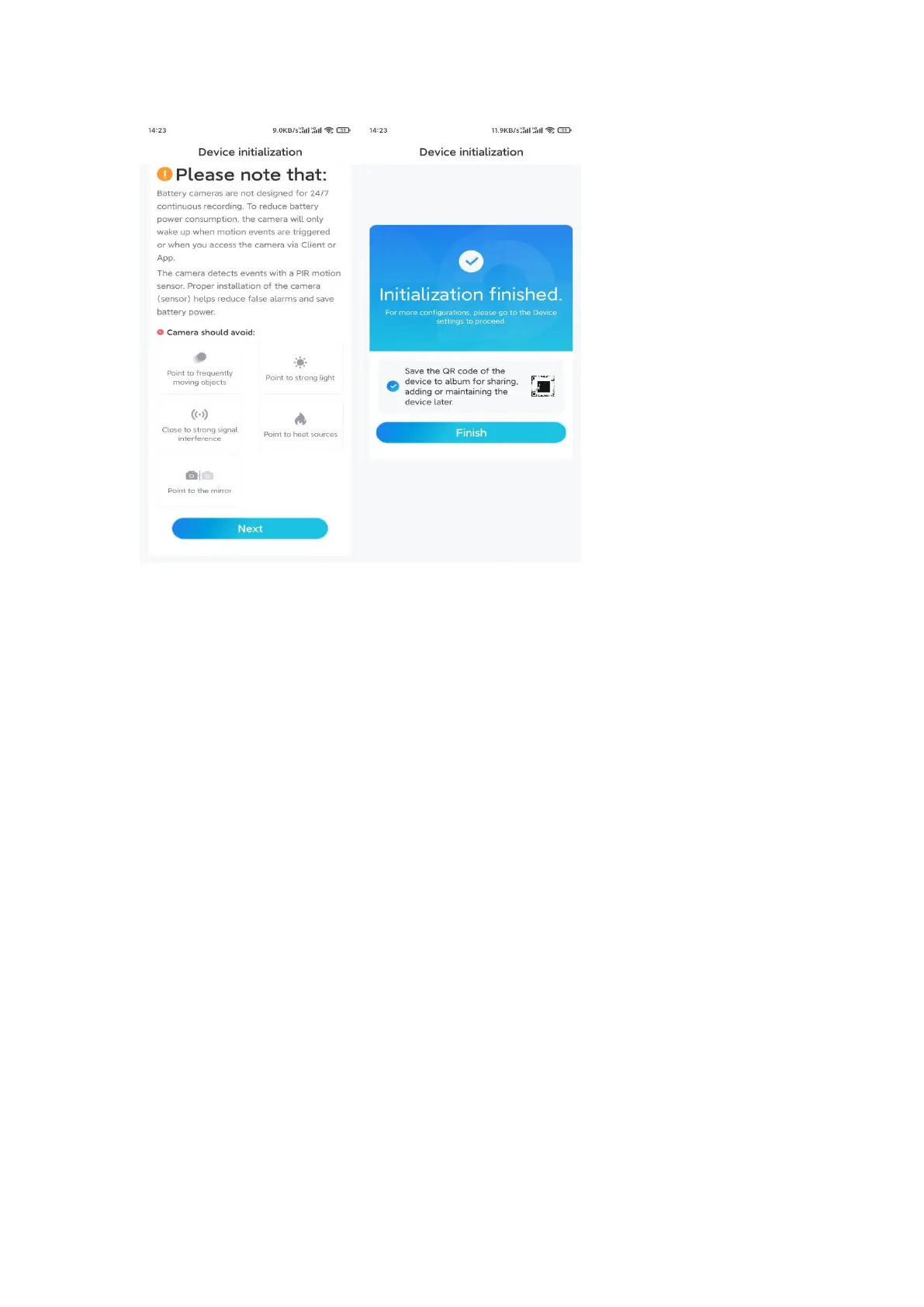

Now the initialization is finished and you can move it to the position you want. Here
is an article to choose a good position for the camera.
Install the Camera
We offer you guides on three different scenes in which the camera could be
installed. Check out them respectively.
 For outdoor use, the camera MUST be installed upside down for better
waterproof performance and better PIR motion sensor’s efficiency.
 Install the camera 2-3 meters (7-10 ft) above the ground. This height maximizes
the detection range of the PIR motion sensor.
 For better motion detection performance, please install the camera angularly
Step 1. Put the cover on the camera. Make sure that the hole on the cover aligns
with the antenna post and the charging port, as shown in the picture.

Reolink Keen Ranger PT Specifications

General

Type	IP security camera
Day/night mode	Yes
Placement supported	Outdoor
Connectivity technology	Wireless
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Pan range	0 - 355 °
Tilt angle range	0 - 140 °
Total megapixels	4 MP
Maximum resolution	2560 x 1440 pixels
Video formats supported	H.265
DC output current	2 A
DC output voltage	5
Power source type	Battery, Solar
Wi-Fi	-
4G standard	LTE-FDD
3G standards	WCDMA
Mobile network generation	4G
LED type	IR
Infra-red wavelength	940 nm
Night vision distance	10 m
Number of illumination LEDs	12
Audio system	2-way
Number of cameras	1
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	16 x
Alert notification type	E-mail, Push notification
Operating temperature (T-T)	-10 - 55 °C
Form factor	Dome
Mounting type	Wall/Pole
Product color	Camouflage
International Protection (IP) code	IP64

Weight and Dimensions

Width	98 mm
Height	112 mm
Weight	485 g
