Reolink RLC-510A User Manual

Reolink PoE Camera
User Manual
44

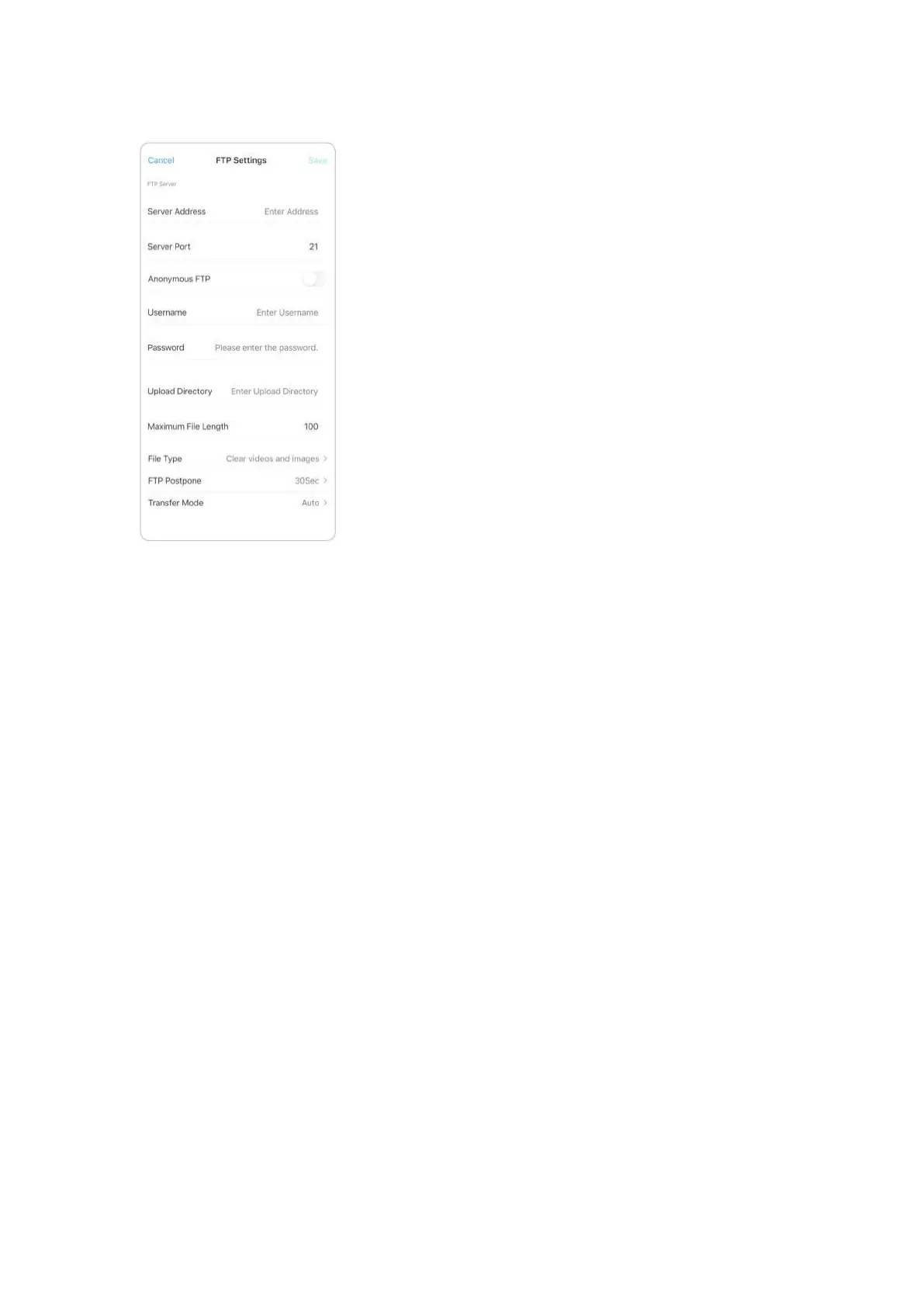

Step 2. Complete the information required and click Save to save all the settings.
Server Address: Type in the address of your FTP server and FTP Port. The default
FTP Port for Reolink products is 21.
User Name and Password: Enter the User Name and Password of your FTP server.
If there is no username and password required, please enable Anonymous FTP.
Upload Directory: Set an upload directory for device video recording. You may also
leave it blank.
Maximum File Length: You can enter the file length here.
File Type: Choose to upload both video and picture or picture only.
FTP Postpone: Set the record time limit after a motion is detected. This option is
only available when File Type is Video and FTP Schedule is Motion.
Transfer Mode: This option consists of Auto, PORT, and PASV three modes. We
recommend you choose the Auto option.
Record with Audio
Tap on Advanced and then find Record Audio, tap to enable record audio option.
Then the camera will record audio in video recordings.

Reolink RLC-510A Specifications

General

Form factor	Bullet
Weatherproof	Yes
Mounting type	Ceiling/wall
Product color	White
Housing material	Aluminum
International Protection (IP) code	IP66
Sensor type	CMOS
Number of sensors	-
Optical sensor size	1/2.7 \
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Number of lenses	1
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	30 m
Number of illumination LEDs	18
Total megapixels	5 MP
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264
Minimum illumination	- lx
DC output current	1 A
DC output voltage	12
Power source type	DC, PoE
Power consumption (typical)	12 W
Wi-Fi	No
Number of users	20 user(s)
Networking standards	IEEE 802.3af
Ethernet interface type	10 Gigabit Ethernet, 100 Gigabit Ethernet
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Mobile operating systems supported	Android, iOS

Weight and Dimensions

Depth	186 mm
Height	67 mm
Weight	425 g
