18C
UPPER
CABLE
X1
25-0273
2X NOT INCLUDED
17MM
10-0017
X1
X1
BLACK
M10X1.50, L50,
10-0476
NYLON INSERT,
M10X1.50, NUT,
10-0421
X1
BLACK
BLACK
X2
10-0445
M10, WASHER,

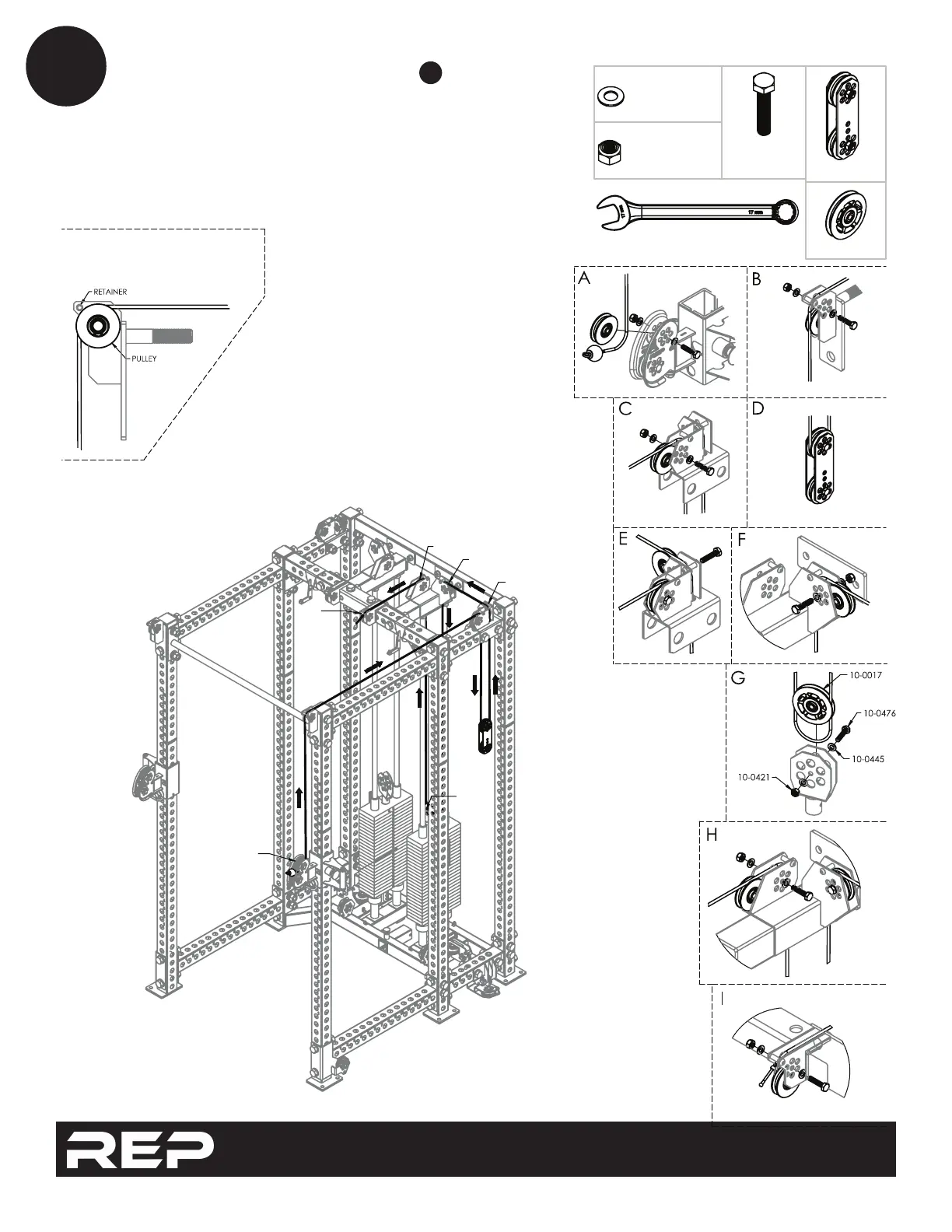

-USING THE CLEARED END FROM , THREAD THE
CABLE THROUGH THE BRACKETS STARTING AT THE
TROLLEY (VIEW A).
-REMOVE HARDWARE AND PULLEYS AS NECESSARY.
LOOSEN CABLE RETAINERS IF PULLEY DOES NOT
SEEM TO FIT, BUT DO NOT REMOVE THEM. 5MM AND
6MM ALLEN WRENCH IS REQUIRED.
18B
IMPORTANT: ENSURE THE CABLE IS
ROUTED BETWEEN THE PULLEY AND
CABLE RETAINER FOR ALL PULLEYS
B
C
E
F
H
I
D
G
A
