20
MOVE WEIGHT SELECTOR PINS (10-0179) INTO HEADPLATES (25-0958).
CHECK BOTH HEADPLATE POSITIONS.
IF THE HEADPLATE IS FLOATING A SMALL AMOUNT (THICKNESS OF A
PLAYING CARD)
IF EITHER HEADPLATE IS NOT AT THE TARGET FLOAT, LOOSEN/TIGHTEN THE
ADJUSTER BOLT ON THE TROLLEY UNTIL THE HEADPLATE REACHES THE
TARGET FLOAT.
NOTE: MINIMUM ADJUSTER BOLT ENGAGEMENT IS 7 FULL TURNS.
IF THE TARGET FLOAT CANNOT BE ACHIEVED, CONFIRM THE CABLE
ROUTING IS CORRECT AND THAT ALL COMPONENTS FIT TIGHTLY TOGETHER.
IF THE HEADPLATE FLOAT IS STILL PRESENT, BUT LESS THAT THE THICKNESS OF
ONE PLATE, IT WILL LIKELY CORRECT ITSELF ONCE THE RACK HAS BEEN
TIGHTENED.
IF EITHER HEADPLATE STILL HAS FLOAT GREATER THAN THE THICKNESS OF
ONE PLATE, PLEASE CONTACT CUSTOMER SUPPORT.

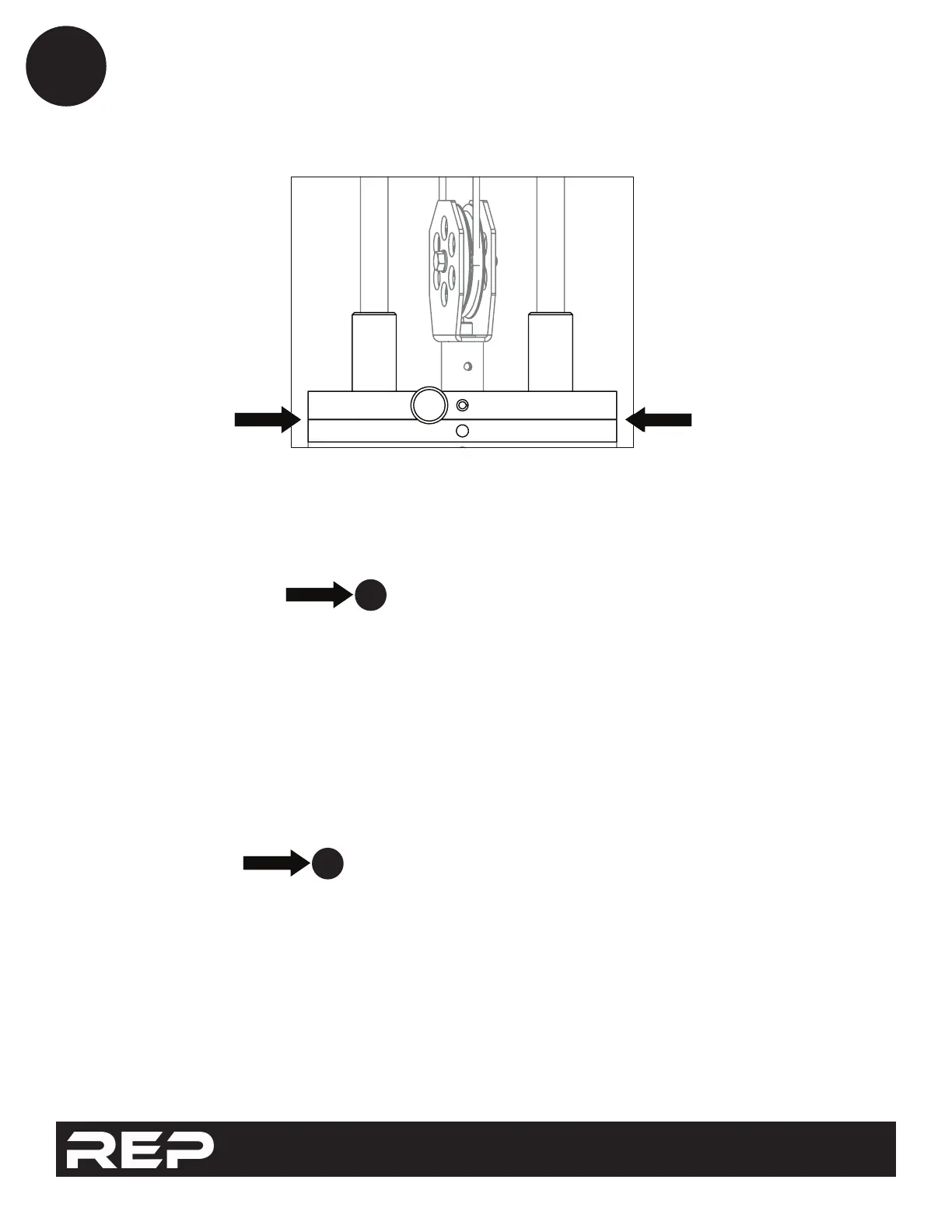

TARGET HEADPLATE FLOAT
21
21
