GUIDE RODS: CLEAN THE GUIDE RODS AND REAPPLY SILICONE SPRAY TO THE
GUIDE RODS EVERY 3 MONTHS OR AS NECESSARY.
CABLE TENSION: OVERTIME THE CABLES WILL STRETCH AND TENSION WILL
REDUCE. TO KEEP IDEAL PERFORMANCE, DO THE FOLLOWING.

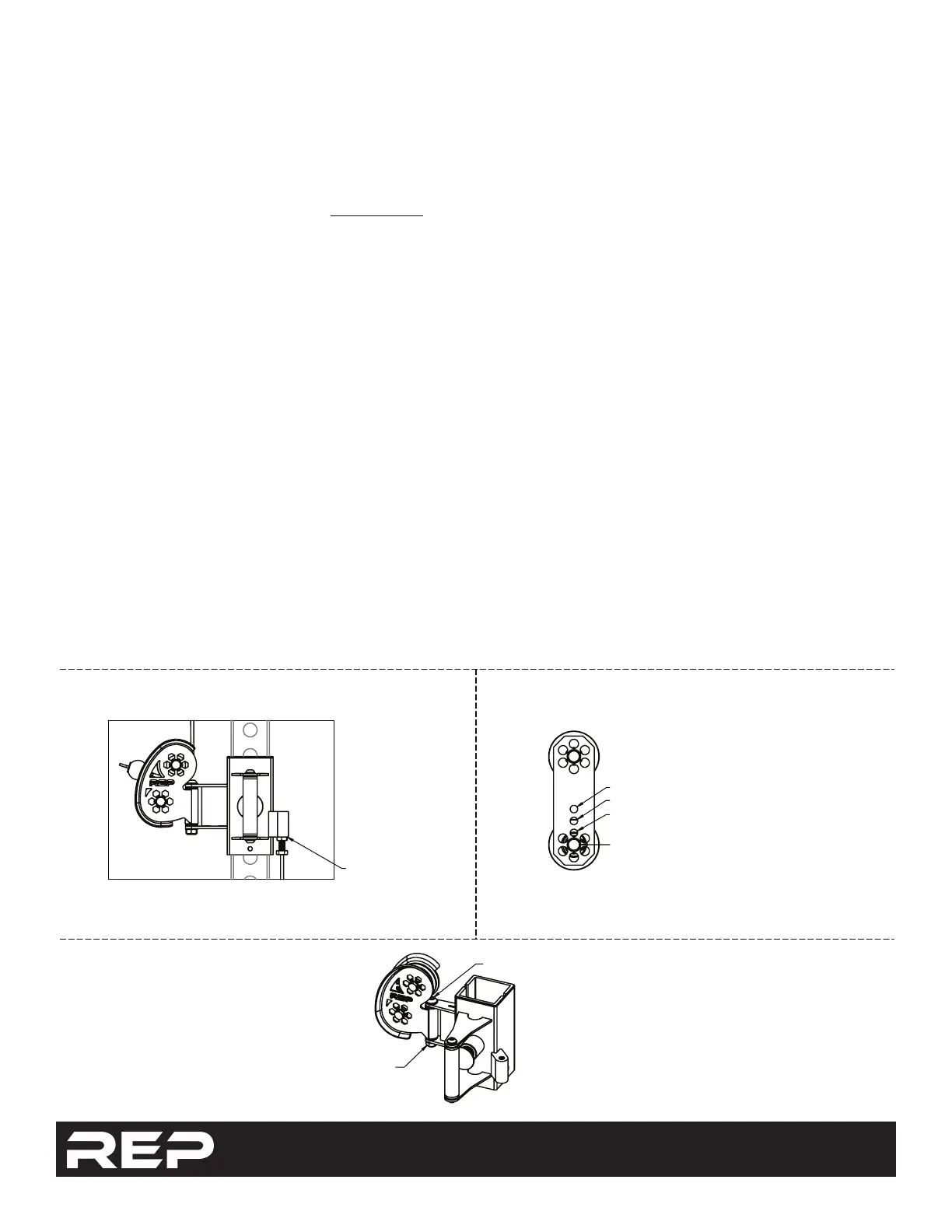

-FOR SMALL ADJUSTMENTS, TIGHTEN THE ADJUSTER BOLT ON THE
TROLLEY. WHEN DONE, TIGHTEN THE JAM NUT (IMAGE 1).
-FOR LARGE ADJUSTMENTS, FULLY LOOSEN THE ADJUSTER BOLT ON THE
TROLLEY AND MOVE THE BOTTOM PULLEY UP ONE POSITION (IMAGE 2).
THEN REINSTALL THE ADJUSTER BOLT ON THE TROLLEY AND TIGHTEN AS
NECESSARY. IF SLACK IS STILL PRESENT, REPEAT THE STEP AT A HIGHER
POSITION
CABLE RUBBING: IF THE TROLLEY SWIVEL BRACKET SEEMS TOO LOOSE OR TIGHT,
THEY CAN BE ADJUSTED. LOOSEN/TIGHTEN AS NECESSARY USING AN 8MM
ALLEN WRENCH AND 19MM WRENCH (IMAGE 3).
MAINTENANCE
1.
2.
3.
8MM DRIVE BUTTON HEAD BOLT
19MM HEX NUT
TIGHTEN JAM NUT
AGAINST TROLLEY
ADDITIONAL POSITION 3
ADDITIONAL POSITION 2
ADDITIONAL POSITION 1
PULLEY COMES PRE-INSTALLED IN THIS POSITION
1. 2.
3.
