34
1. 7”, color graphic TFT display module.
2. Built-in thermal printer.
3. Integrated microphone module for patient talk over (automatically excluded
upon hookup of the external microphone into the appropriate jack connector
(26) located on the back panel).
4. Channel 1 (dB) and 2 (dB) adjustment knobs: the channel 1 adjustment knob
enables channel 1 dB level adjustments and selection of the items on the menu
pages. The channel 2 adjustment knob enables channel 2 dB level adjustments
and selection of the menu page items. Both adjustment knobs enable sound
level controls via the volume control menu page (CONTROLS key 14).
5. F1.....F6 function keys: enable execution of the function displayed on the bottom

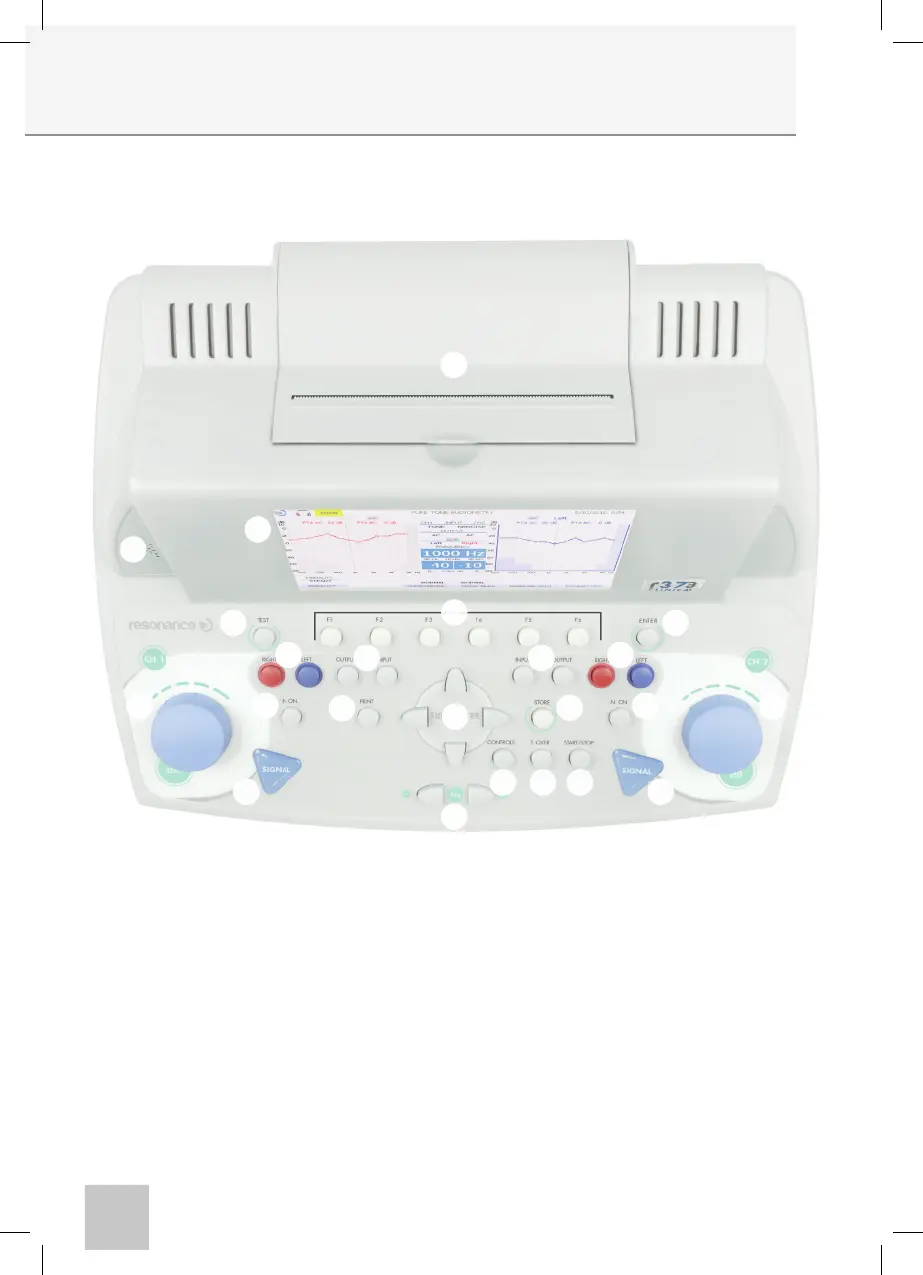

Controls and components
front section
2
9
8
9
11
12
18
17
10
13
161514
4
5
8
6
11
12
4
1
3
7
