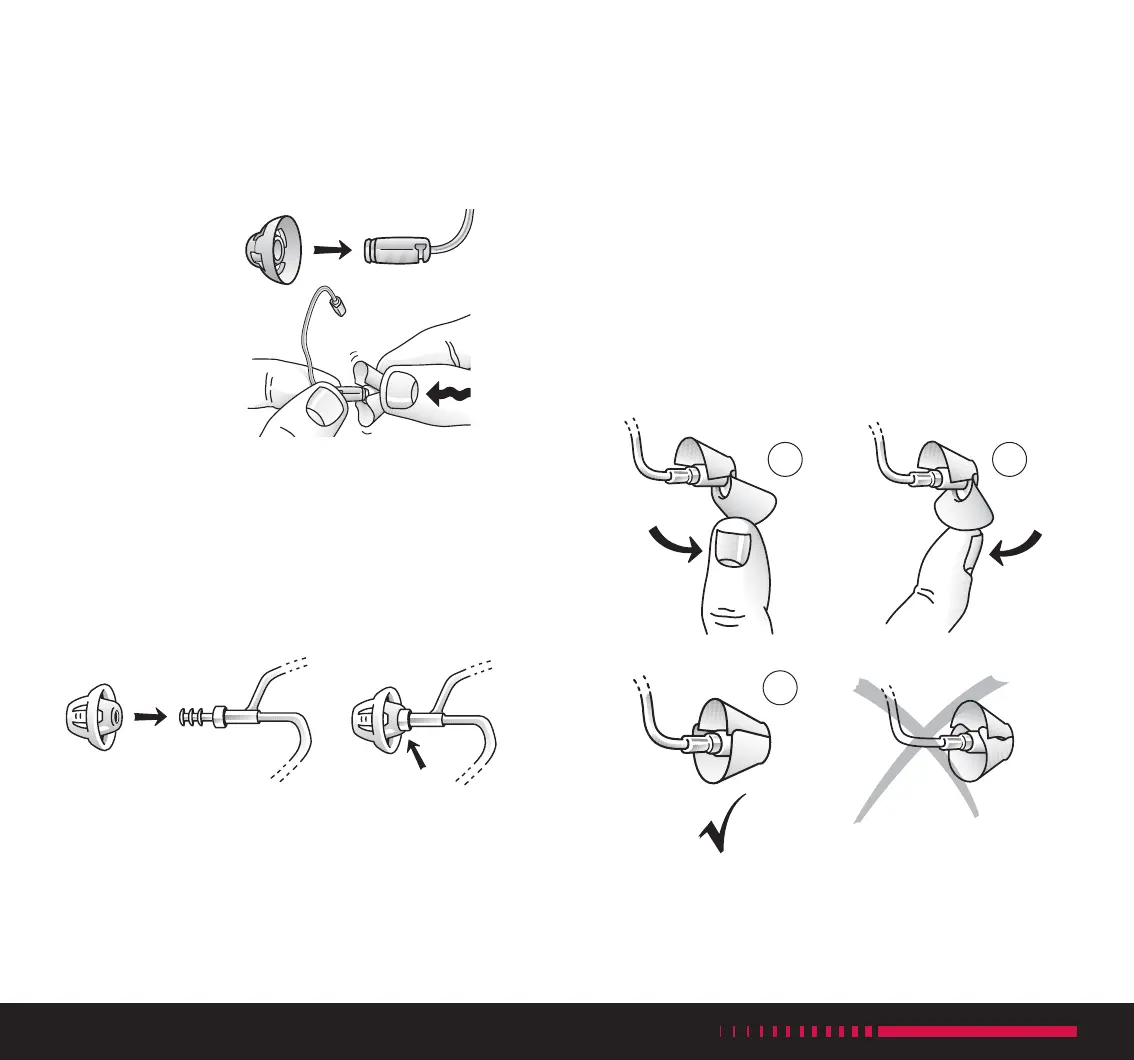

Preparing a Tulip-Dome for insertion
The Tulip-Dome consists of two “leaves” and it is
important that the largest “leaf” is the outermost “leaf”
(fi gure 3).
This can easily be done by pushing the “leaves” away
from the tube with your fi nger (fi gure 1) to make the
large “leaf” bend forward. Then push the large “leaf”
back and it will be placed on top of the smaller “leaf”
(fi gure 2). Now the Tulip-Dome is ready for insertion
(fi gure 3).
Mounting an Open dome or Tulip-Dome
onto an NP/LP receiver tube
A dome is mounted onto the NP/LP receiver tube by
pushing it gently over the receiver at the end of the
tube. Make sure that it is securely fastened.
Mounting an Open dome or Tulip-Dome
onto a Thin Tube or Flex-Tube
A dome is mounted onto the Thin Tube or Flex-Tube
by pushing it over the grooves on the tube. Make sure
that it is securely fastened.
1
2
3
Open dome with
NP/LP receiver tube
Tulip-Dome with
NP/LP receiver tube
