Retrax • 917 S. 46th St., Grand Forks, ND 58201 • 800-206-4070 © Retrax is Retrax Holdings, LLC, 2023
4000-175 IR-RTP-01 Rev. 10.17.23
Page 9 Top
Page 9 Middle
O C
O C
O C
Page 10 Top
Page 10 Bottom Right
Page 10 Bottom Left
18

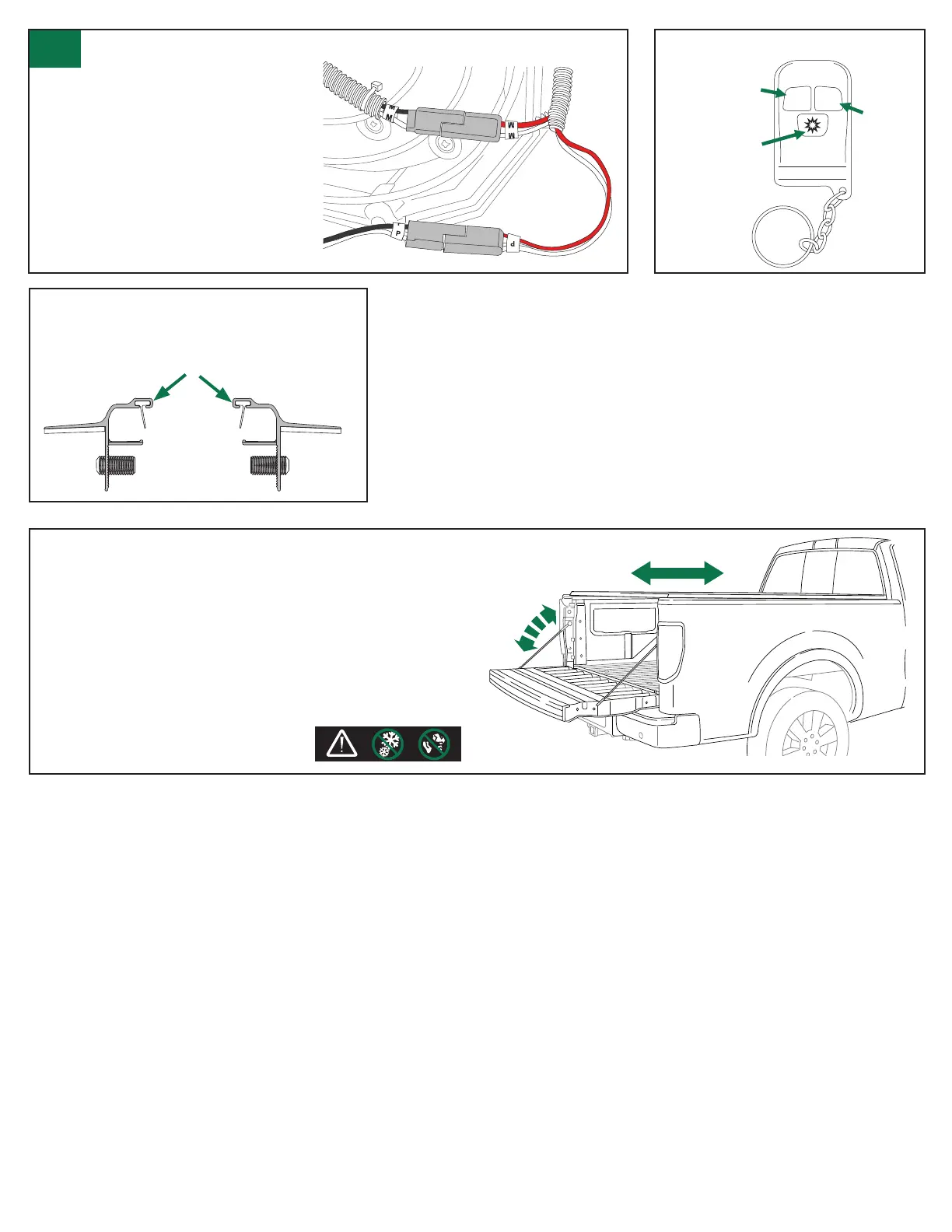

Connect the wiring harness to electronics box and battery:
A. Connect the power harness
to the connector with a white label with
the letter “P” on it for Power. Ensure the
connectors are securely connected.
(Connectors labeled with the letter “M”
for Motor will come attached.)
B. Connect the wires to the battery
and install a fuse (C) in the fuse holder
(B). Connect the RED wire (with the fuse
holder) to the POSITIVE post and the
BROWN wire to the NEGATIVE post.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Page 9 Top
Page 9 Middle
O C
O C
O C
Page 10 Top
Page 10 Bottom Right
Page 10 Bottom Left
For proper cover operation, ensure rails are
positioned correctly (must be parallel). See
steps 14 & 15.
These surfaces must be level.
O C
O C
O C
Page 10 Top
Page 10 Bottom Right
Page 10 Bottom Left
Operation of the POWERTRAX
Hold to open
Press once to
illuminate light
(auto shut o
after 3-5
minutes)
Hold to
close
Remove any snow or
foreign matter before
operating cover.
FINAL NOTES
•
Open and close the cover to ensure that it is rolling without
rubbing or binding.
•
Open and close the tailgate to check for proper movement.
•
On some models, a better t with the tailgate may be obtained
if the rear of the rails are adjusted slightly up or down.
•
Remove all remaining protective lm.
•
Recheck that all of the clamps are tight.
Do this periodically throughout the use of the cover.
•
Check that the rails are level and
spaced evenly, and adjust accordingly.
Remove any snow or
foreign matter before
operating cover.
