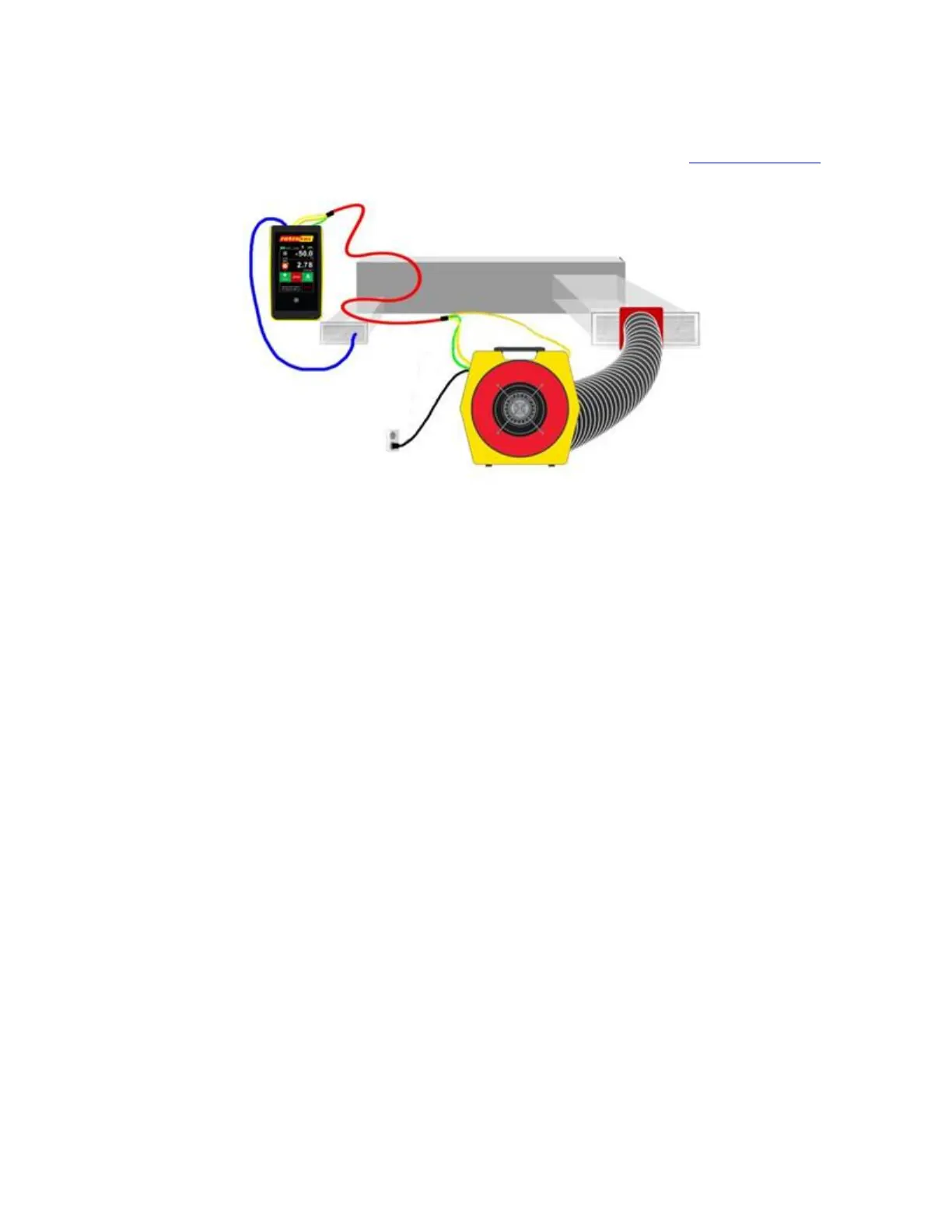

This is a schematic of a duct leakage test. Registers are sealed, the duct tester fan is connected to a

return and the pressure gauge picks up the pressure in the ducts.

Locate the step by step Quick Guide that came with your equipment or access it at www.retrotec.com.

Figure 1: DucTester setup, including tubing locations and necessary connections.
