6.9.2. Blow air out of the ducts for pressurization

The only advantage of pressurizing is that it makes changing Range Rings on the fan easier. If a

pressurization test is needed, simply install the Flex Duct on the outlet side of the fan.

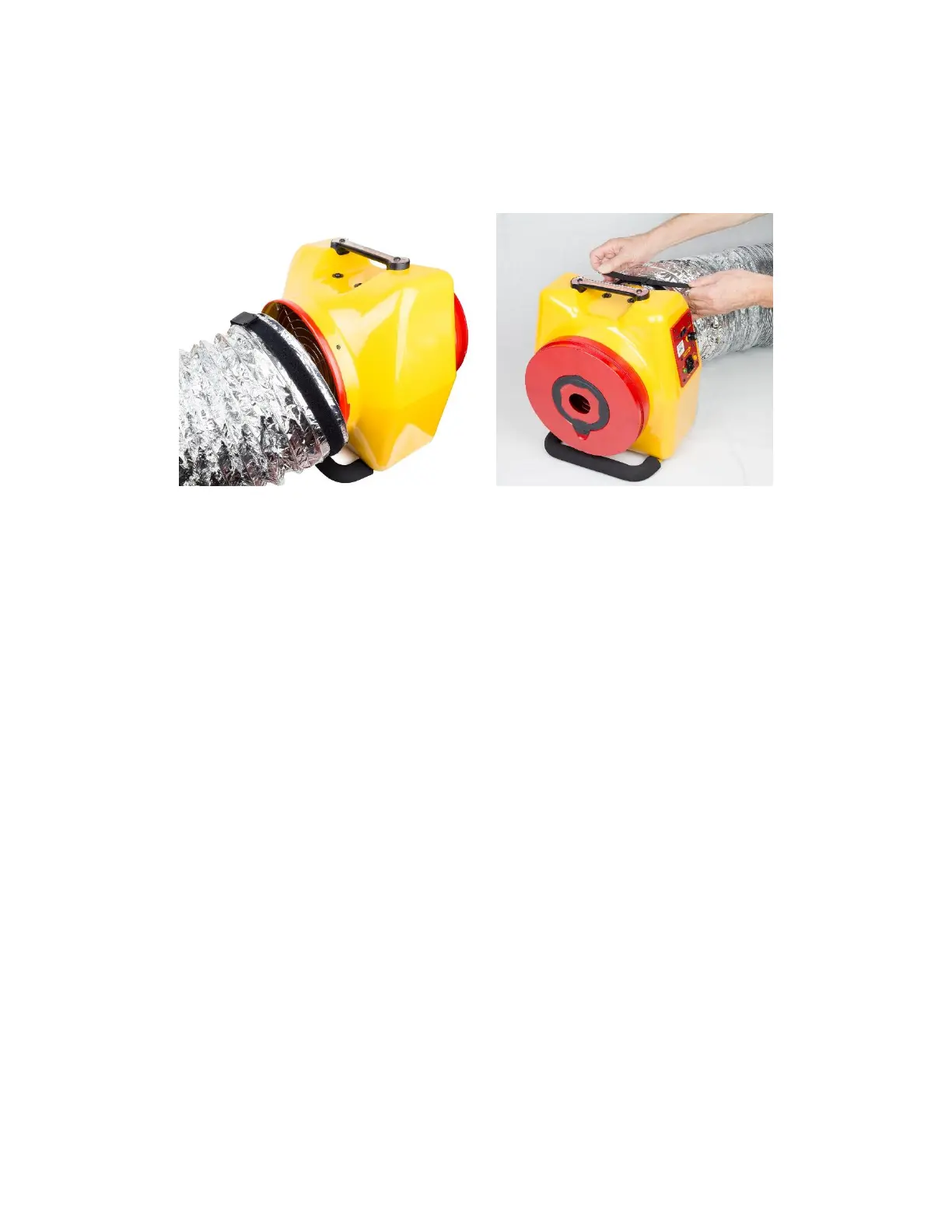

Figure 23: Install Flex Duct over the fan exhaust, for pressurization. Tighten the strap.
