Retsch PM400 - Operating the machine

08.02.2012 Retsch GmbH 22 Doc. Nr. GB 98.535.9999

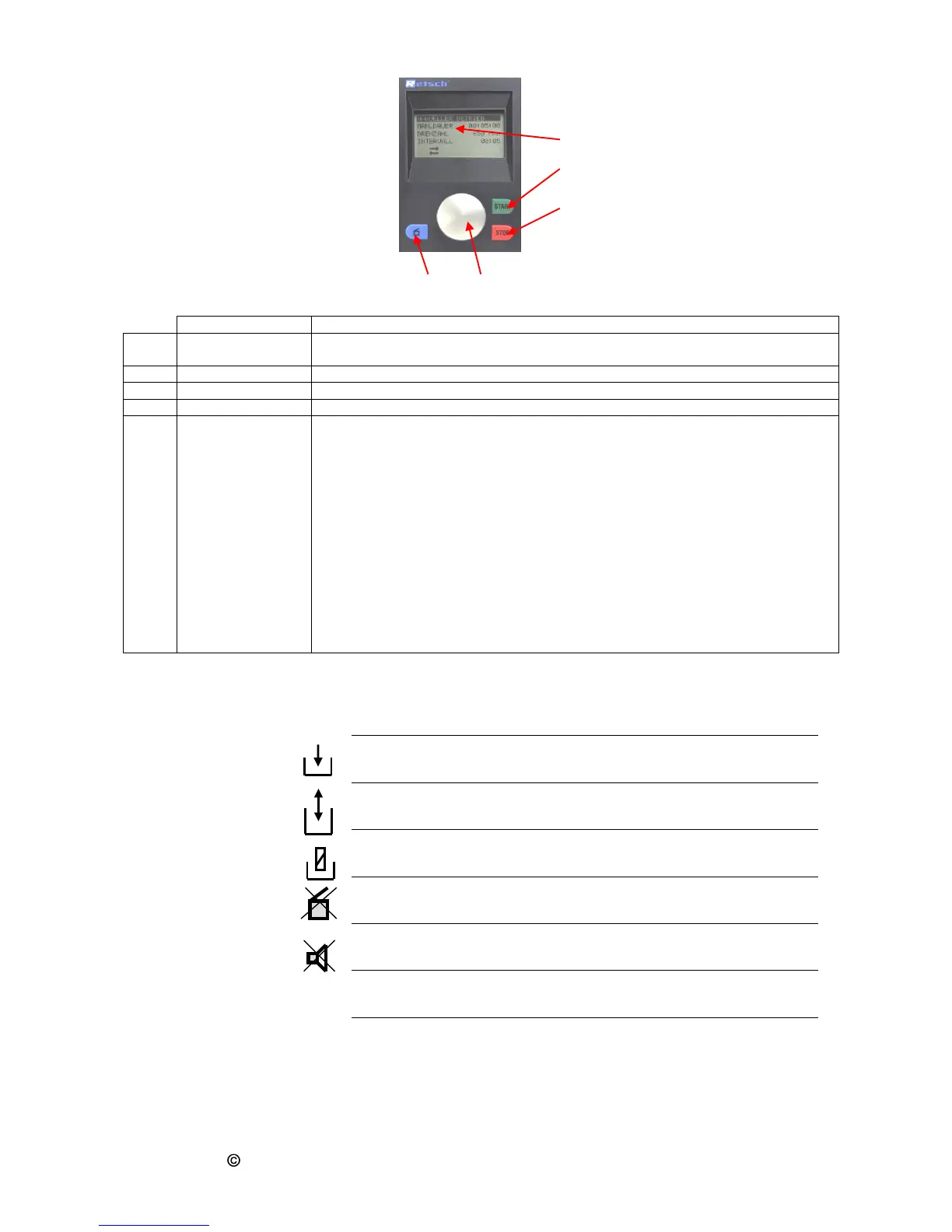

Operation via the display unit of the PM400
The mills have a new, very
comfortable operator control system.
All relevant data can be entered or
called via a graphic display with one
knob operation.
The menu system is multlingual.
D E
A
B
C
Name
Function
A
Display
Displays the menu, parameter settings, operating instructions and fault
signalling.
B
START button
Starts the milling process
C
STOP button
Stops the milling process
D
Button
Opens the milling chamber hood
E
Setting knob
By turning and pressing, all menu points can be selected and parameters set.
Turning 1
By turning, the various menu points can be selected. Selected menu points
are displayed inversely.
Turning 2
Setting of parameters in the opened menu points (see Pressing 1)
Pressing 1
Selected menu points are opened.
Pressing 2
Short pressing confirms setting of parameters.
Pressing 3
Continuous pressing: jump back to the 1st menu level.
Symbols in the display unit
Reversal of direction of rotation switched on
Programme mode – take over parameters
Programme mode – change programme
Programme mode – delete programme
Opening automatic control off
Warning sound off
Motor or frequency converter too hot

°C
