Disassembly, Assembly and Repair Instructions
27
3.8 Replacing the Motor-Driven Lid Lock
3.8.1 Required tools:
Hex key A/F 2.5
Needle-nose pliers
3.8.2 Required spare parts:
22.878.0015 motorised lock
3.8.3 Description of the procedure

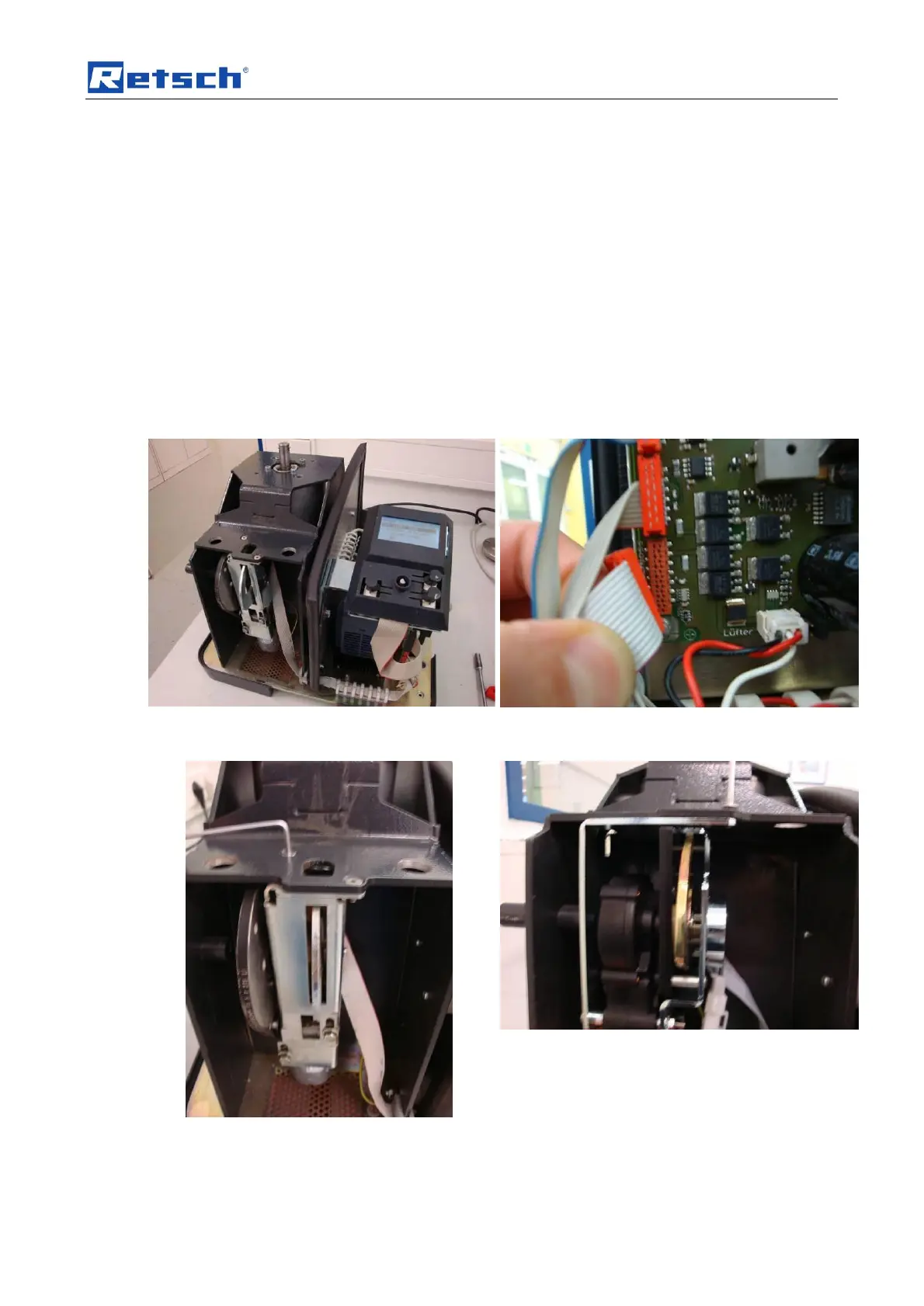

Disconnect the ZM 200 from the mains supply
and open the housing.
Pull the motorised lock connector off the control
PCB.
Remove the defective lock by loosening the two
socket-head cap screws.
Mount the new lock. It is essential to ensure that the
emergency release is securely in place.
