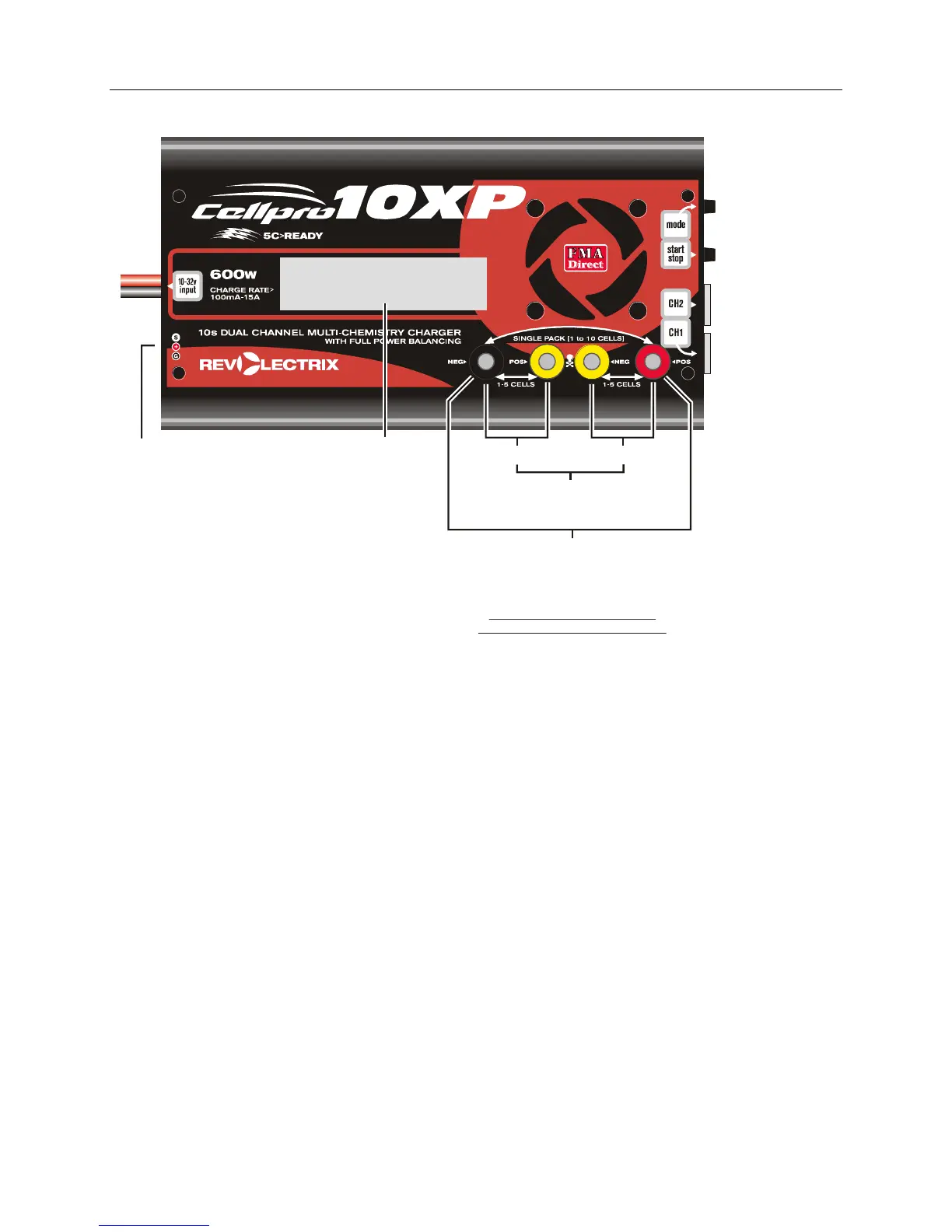

To DC
Power
Supply
DisplayConnect FUIM2 or FUIM3
PC USB Interface here when
connecting to Charge Control Software
(black wire toward outside wall of case)
Channel 1 Channel 2
Banana jacks for discharge
wires when charging
2 packs at the same time
Use two outer banana jacks for discharge
wires when charging only one pack.
Never connect pack discharge wires
across the two yellow banana jacks.
This will result in blowing the internal fuse.
Note the skull and crossbones
warning between the yellow jacks!
MODE button
START/STOP button
Channel 2
balance connector
Channel 1
balance connector
