When using XH/EH WIRING mode

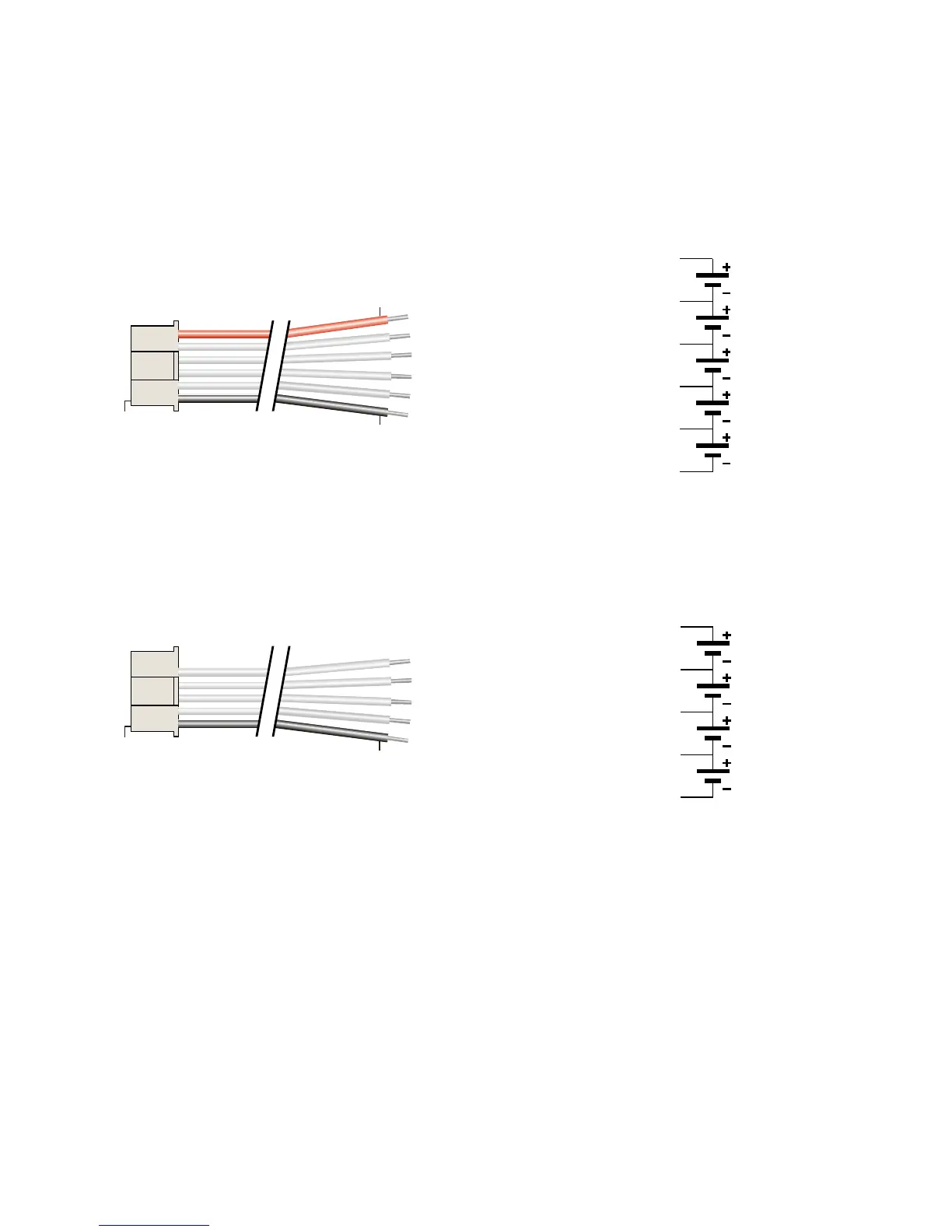

These diagrams show how a 6 pin Cellpro (JST PA series) balance connector (REVO PN CPBP6P-10-
US) must be wired to a 5s, 4s, 3s, 2s, and 1s battery pack when the Cellpro 10XP is set to XH/EH
WIRING mode. You may choose to set the CP10XP to XH MODE and splice the CP 6 position to an
XH adapter you already own. Use this illustration to guide you.
Pin 1
Red
Black
Pack positive
Node 4
Node 3
Node 2
Node 1
Pack negative
5s Pack
Pack positive
(red), 18.5V*
Node 4, 14.8V*
Node 3, 11.1V*
Node 2, 7.4V*
Node 1, 3.7V*
Pack negative
(blk), 0V
Cell 5
Cell 4
Cell 3
Cell 2
Cell 1
* Nominal voltage with
respect to pack negative
FMA Cellpro Connector/XH and EH Wiring Mode
Pin 1
Black
Pack positive
Node 3
Node 2
Node 1
Pack negative
4s Pack
Pack positive, 14.8V*
Node 3, 11.1V*
Node 2, 7.4V*
Node 1, 3.7V*
Pack negative
(blk), 0V
Cell 4
Cell 3
Cell 2
Cell 1
* Nominal voltage with
respect to pack negative
FMA Cellpro Connector/XH and EH Wiring Mode
