Reverso FPS-210 User Manual

4
Reverso Pumps, Inc.
Primary Inspection
• Upon delivery inspect the Fuel Polishing System
(FPS) for any damage that may have occurred during
shipment.
• Inspect the interior of the unit for mechanical or
electrical damage.
• If the unit is damaged upon delivery, contact the
shipping company immediately.
Mounting
• The FPS should be wall mounted on a hard, vertical
surface capable of supporting the weight of the unit
(using the bushing).
• A unit without an enclosure should be located under
shelter, out of the weather if possible. The unit with
the optional enclosure can be located in any location
accessible to the operator.
• In all cases the unit should be located as close as
possible to the tank being serviced. (refer to Max. Lift
in Technical Specications).
• When installing the unit below the level of the fuel
on above ground fuel tanks, consideration should
be made to the installation of an anti-siphon valve
to prevent fuel spillage in the case of a leak in the
piping system.
Electrical
• Installation of unit should only be performed by
qualied installation personnel who have thoroughly
read and understand the installation instructions
covered in this manual.
• To avoid the risk of electric shock, make sure that
the power supply is disconnected. Ensure that the
power supply is at zero volts with a multimeter before
making any electrical connections.
• To ensure operator safety the system must be
connected to properly grounded power sources.
• Make sure that your unit and power supply are
congured for the same voltage rating.
• Dry contacts are for external use.
• External control voltage must be supplied by
customer.
Piping
Use quality approved fuel line materials with the
recommended inner diameter (refer to Technical
Specications). Smaller plumbing will place excessive
load on the motor and shorten its life. A full port ball valve
should be installed on the inlet and outlet ports of the
system (not included).
The pickup line(s) (suction) should originate from the
lowest point of the tank and should be connected directly
to the inlet. For optimal performance, ensure that this line
is free and nothing is restricting ow. It is recommended
to install a foot valve to keep the system primed,
especially if the system is located above the lowest
possible fuel level in the tank.
If the system is mounted below tank top level, a priming
tee should be installed on the highest point of the suction
line to be able to easily prime the systems suction line.
The return line(s) (discharge) should be connected to the
outlet and enter the tank as far as possible from the pick
up tube and extending 2/3 down into the tank. For optimal
performance, ensure that the outlet, discharge or return,
line(s) are free and nothing is restricting their ow.
The suction line of the system must be independent
and separate from the suction line of the engine. Do not
integrate into engine fuel system.
When installing this unit, FLEXIBLE CONNECTIONS
MUST BE USED TO REDUCE STRESS on the plumbing
and prevent damage to the unit.

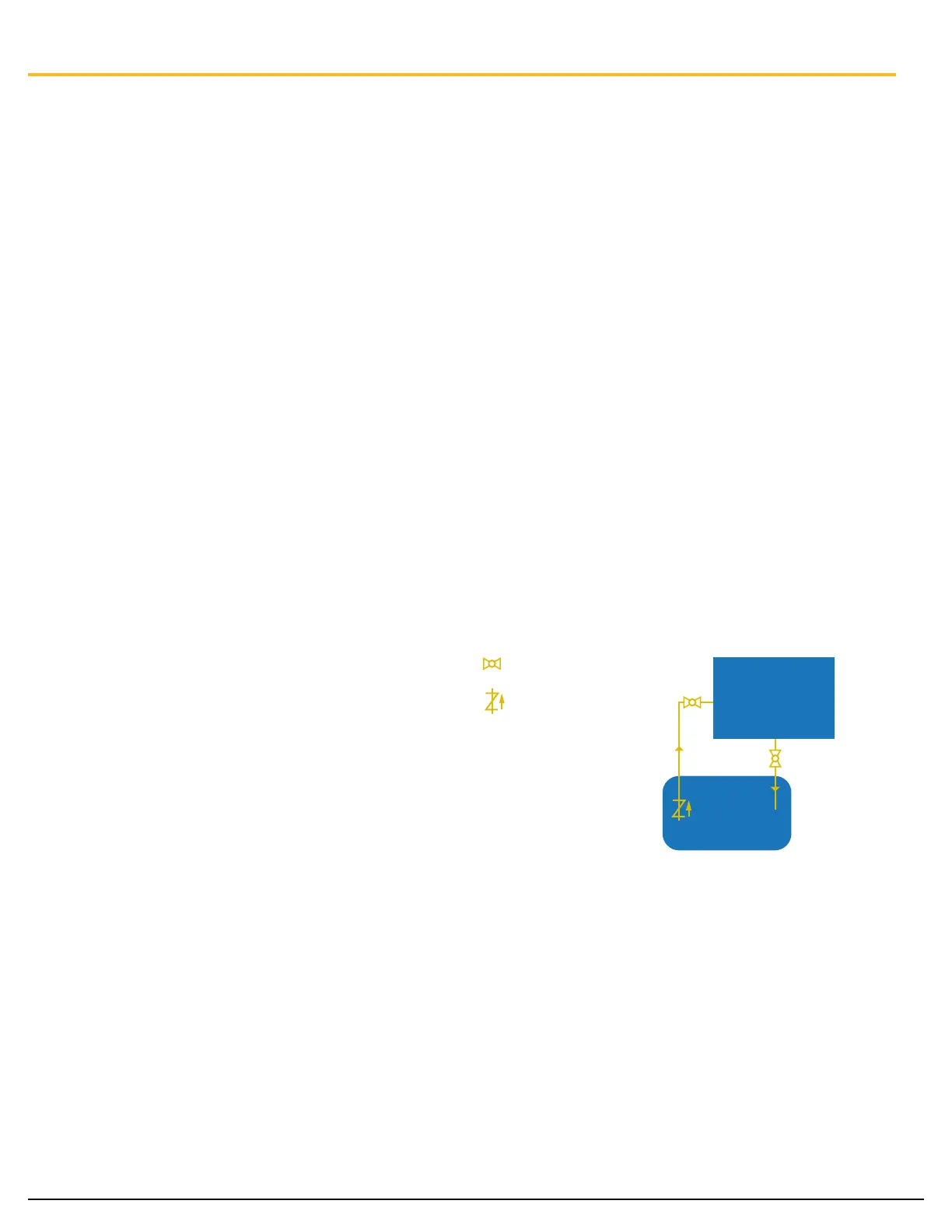

Hoses, piping, and foot valves shown in the diagrams
below are not provided with the system and must be
provided by the user/contractor, unless agreed upon
otherwise.
Electrical and Piping Installation
Fuel
Polishing
System
Fuel
Tank
Foot valve
Ball valve
Fuel
Polishing
System
Fuel
Tank
Foot valve
Ball valve
Warning
• The system has been developed to be used with
diesel fuel only. DO NOT USE WITH GASOLINE.
• The system is designed to meet environmental
standards for safe operation (NOT for use with uids
that have a ash point below 100°F (38°C) (e. g.
gasoline, alcohol).
