Revolv E7ED DOWNFLOW - Figure 17. E7 EM Physical Dimensions

13

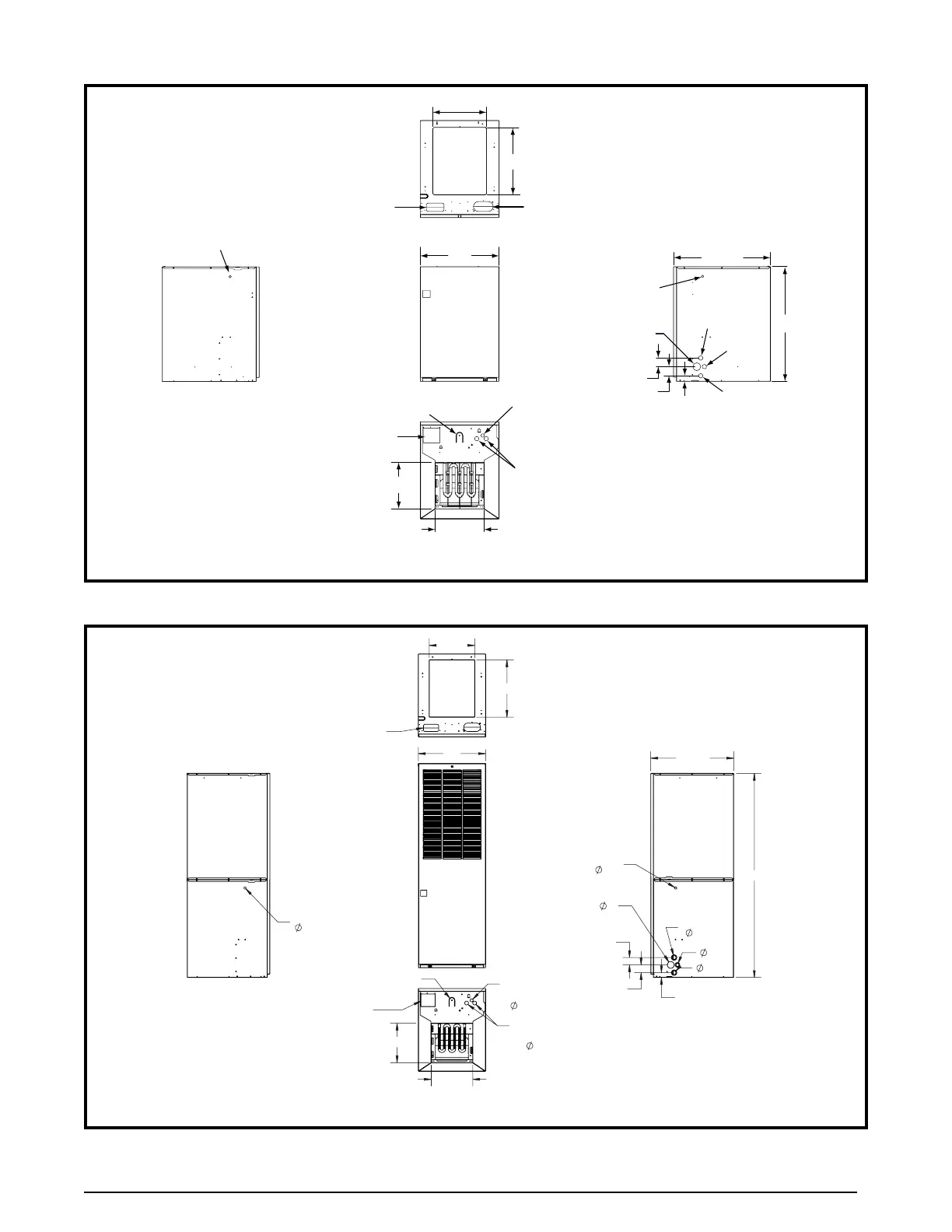

Figure 17. E7EM Physical Dimensions
20”
29
”
24 1/2”
1 3/8”
Ø 1 1/8”
2 5/16”
2 1/4”
Ø 2”
13 1/2”
17”
11 3/4”
12 5/16”
T-Stat
(Ø 5/8”)
Electric
Ø 1 1/8”
Ø 7/8”
T-Stat
(Ø 5/8”)
A.C. & H.P. Knockout
(4 1/4” X 3 3/4”)
FRONT
VIEW
TOP
VIEW
LEFT
SIDE
BOTTOM
VIEW
RIGHT
SIDE
VentilAire Knockout
(1 1/2” X 5”)
VentilAire Knockout
(1 1/8” X 4 1/2”)
Optional Electric
Ø 1”
Optional Electric
Ø 5/8”
Tie- Down Tab
Figure 18. E7EU & E7ED Physical Dimensions
FRONT
VIEW
TOP
VIEW
LEFT
SIDE
BOTTOM
VIEW
RIGHT
SIDE
20"
13 1/2"
17"
REFRIGERATOR
KNOCKOUT
(2 1/8" X 4 1/2")
24 5/8"
60 5/8"
1 7/16"
2 1/4"
2 5/16"
7/8"
2"
T-STAT
5/8"
ELECTRIC
1 1/8"
1 1/8"
RIGHT SIDE
T-STAT
5/8"
LEFT SIDE
11 3/4"
12 5/16"
OPTIONAL
ELECTRIC
1 "
TIE-DOWN TAB
A.C & H.P. KNOCKOUT
(4 1/4" X 3 3/4")
OPTIONAL
ELECTRIC
7/8"
