16
FURNACE MODELS E7- 010H 012H 015H 017H 020H 023H
Rated Heating Output, Btuh (see note 1) 35,000 41,000 53,000 57,000 70,000 75,000
Watts (Total kw, Heating Elements & Blower) 10.4 12.0 15.4 16.6 20.4 22.0
Supply Voltage 240 Volts/60Hz/1-Phase
Heating Elements, No. (Total kw) 2 (10.0) 2 (11.6) 3 (15.0) 3 (16.2) 4 (20.0) 4 (21.6)
Motor Speed, H.P. Rating, Amps 16 Speed, 1/2 HP, 3.6 A
Test ESP, in. w.c. Max 0.3
Optional Cooling Available with factory installed blower 2.0 - 4.0 Ton (See Note 3)
Optional Heat Pump Available with factory installed blower 2.0 - 4.0 Ton
Air Filter (Standard) 18" x 20" x 1" (nominal)
Furnace Dimensions
Multi-Poise
Width-20" (508mm), Height-29" (737mm) (see note 2), Depth-24 1/2"
(623mm)
Upflow/
Downflow
Width-20” (508mm), Height-60 5/8” (1546mm) (see note 2), Depth-24 1/2”
(623mm)
NOTE: Heating output rated at listed voltage.
Table 6. Unit Specifications
Electrical Data & Diagrams

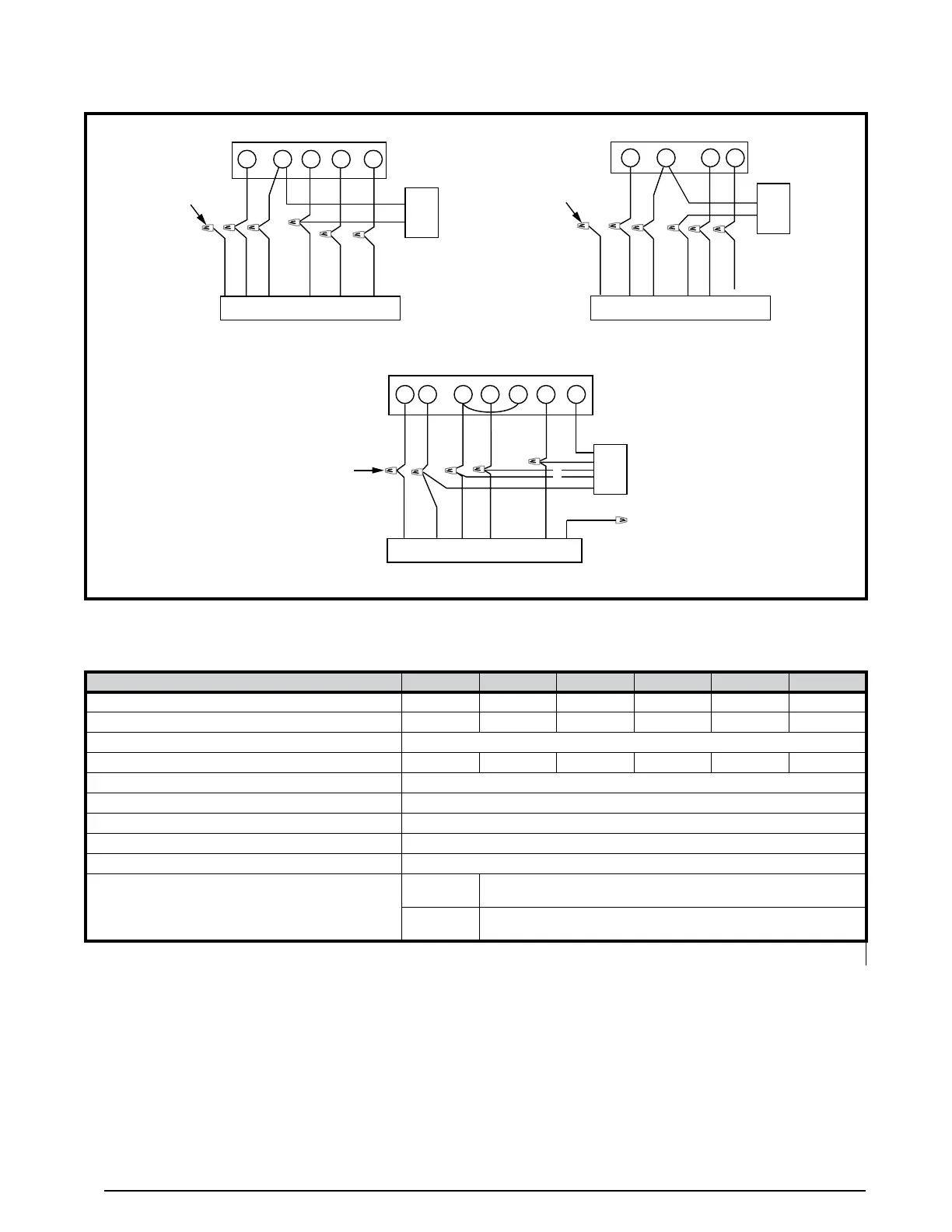

Figure 20. E7EB Thermostat Connection
W
Y
WHITE
GREY
RED
GREEN
4-WIRE THERMOSTAT
WHITE
GREY
RED
GREEN
TO
H/P
HEAT PUMP THERMOSTAT
TO
A/C
G
R
YELLOW
G
R
W2
C
E
Y
O
TO FURNACE CONTROL WIRING
TO FURNACE CONTROL WIRING
WIRE
NUTS
TO FURNACE CONTROL WIRING
YELLOW
W
G
WHITE
GREY
RED
5-WIRE THERMOSTAT
GREEN
Y
R
YELLOW
TO
A/C
WIRE
NUTS
C
VIOLET
WIRE
NUTS
VIOLET
VIOLET
NOTE: For optional dehumidifcation violet wire connection, refer to the Dehumidication Options section.
