Revox A77 Service Manual

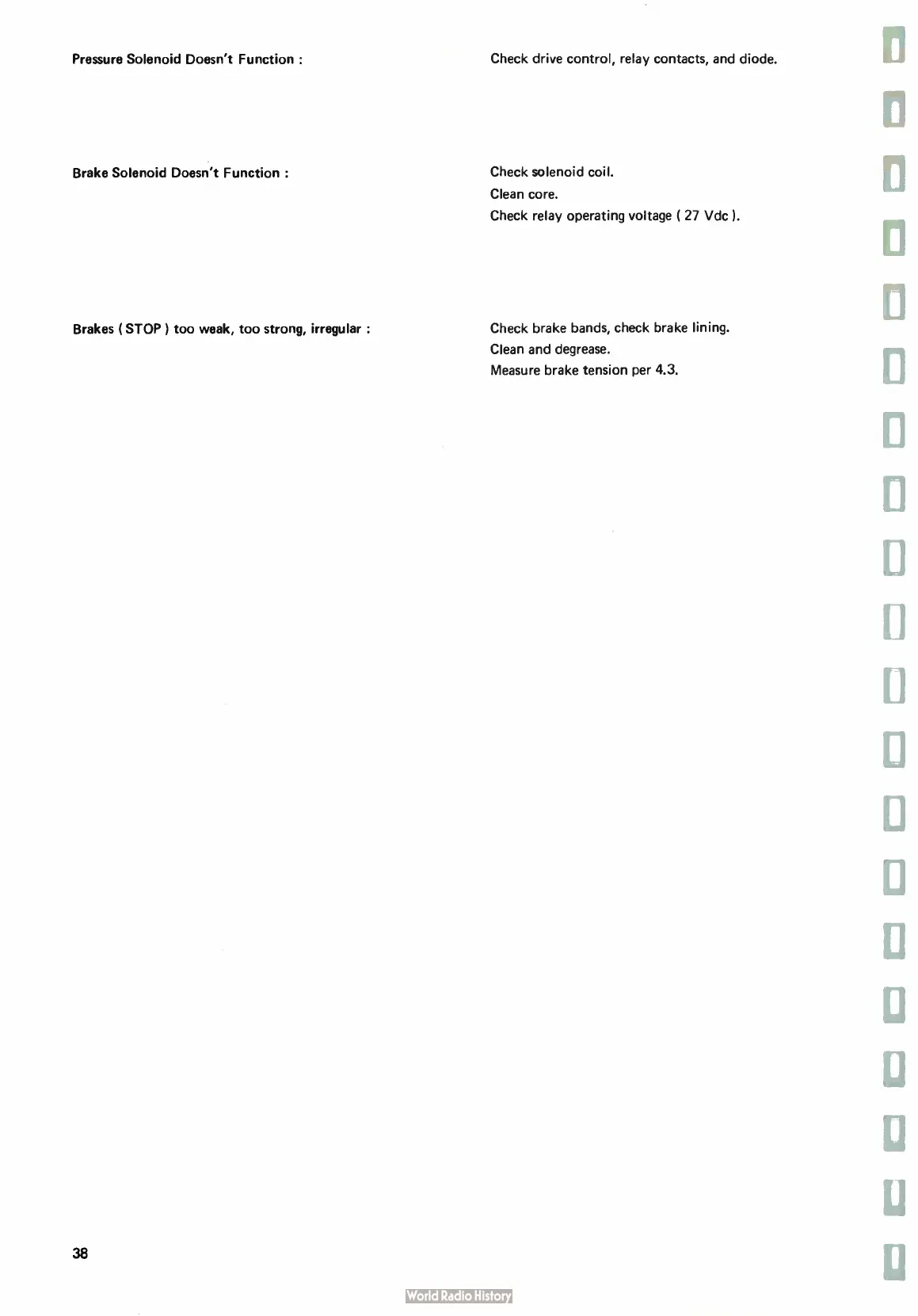

Pressure Solenoid Doesn't Function : Check drive control, relay contacts, and diode.
Brake Solenoid Doesn't Function :
Brakes ( STOP ) too weak, too strong, irregular :
38
Check solenoid coil.
Clean core.
Check relay operating voltage I 27 Vdc I.
Check brake bands, check brake lining.
Clean and degrease.
Measure brake tension per 4.3.
1
-,
,
n
n
n
11
n
n
n
11
li
LI
U
U
U
U
LJ
U
LI
U

Revox A77 Specifications

General

Wow and Flutter	0.08% (7 1⁄2 ips)
Frequency Response	30Hz to 20kHz (7 1⁄2 ips)
Signal to Noise Ratio	60dB
Type	Reel-to-Reel Tape Deck
Track System	4-track, 2-channel stereo/monaural
Reel Size	Up to 10.5 inch reel
Motor	2 x reel, 1 x capstan
Inputs	Mic, Line
Outputs	Line
Tape Speed	3 3⁄4 and 7 1⁄2 ips
