Revox A77 Service Manual

le
u
Ii
u
I.
h

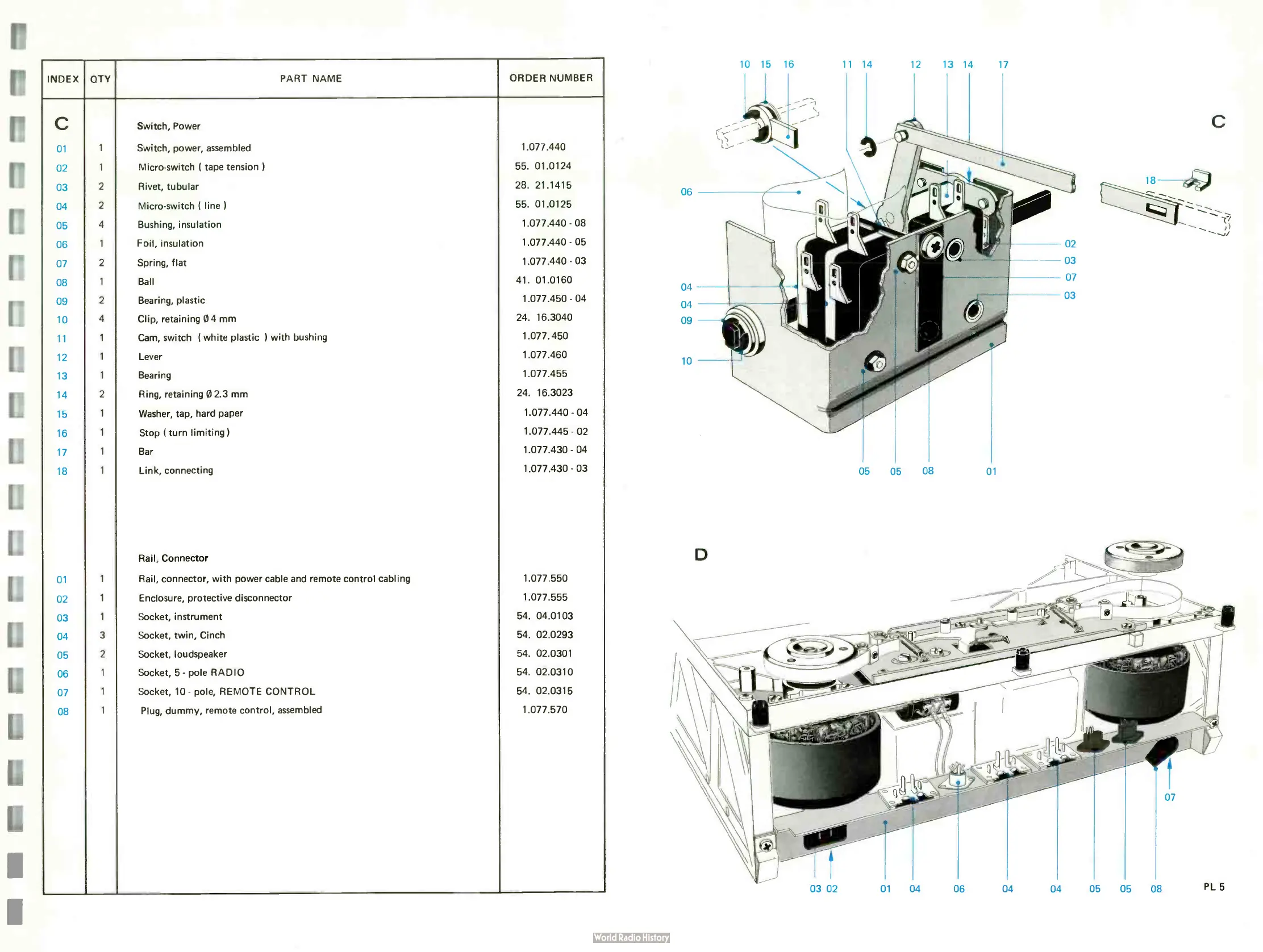

INDEX
QTY
PART NAME
ORDER NUMBER
C
Switch, Power
01
1
Switch, power, assembled
1.077.440
02
1
Micro- switch ( tape tension )
55. 01.0124
03
2
Rivet, tubular
28. 21.1415
04
2
Micro- switch ( line )
55. 01.0125
05
4 Bushing, insulation
1.077.440 - 08
06
1
Foil, insulation
1.077.440 - 05
07
2 Spring, flat
1.077.440 - 03
08
1 Ball
41. 01.0160
09
2 Bearing, plastic
1.077.450 - 04
10
4
Clip, retaining 0 4 mm
24. 16.3040
11
1 Cam, switch ( white plastic ) with bushing
1.077.450
12
1 Lever
1.077.460
13
1
Bearing
1.077.455
14
2 Ring, retaining 0 2.3 mm
24. 16.3023
15
1
Washer, tap, hard paper
1.077.440 - 04
16
1
Stop I turn limiting 1
1.077.445 - 02
17
1
Bar
1.077.430 - 04
18
1
Link, connecting
1.077.430 - 03
Rail, Connector
01
1
Rail, connector, with power cable and remote control cabling
1.077.550
02
1
Enclosure, protective disconnector
1.077.555
03
1
Socket, instrument
54. 04.0103
04
3
Socket, twin, Cinch
54. 02.0293
05
2
Socket, loudspeaker
54. 02.0301
06
1
Socket, 5 - pole RADIO
54. 02.0310
07
1
Socket, 10 - pole, REMOTE CONTROL
54. 02.0315
08
1 Plug, dummy, remote control, assembled
1.077.570
04
04
09
10
05
05
08
01
D
10 15 16 11 14
12 13 14
17
03 02 01 04 06 04 04 05 05 08 PL 5

Revox A77 Specifications

General

Wow and Flutter	0.08% (7 1⁄2 ips)
Frequency Response	30Hz to 20kHz (7 1⁄2 ips)
Signal to Noise Ratio	60dB
Type	Reel-to-Reel Tape Deck
Track System	4-track, 2-channel stereo/monaural
Reel Size	Up to 10.5 inch reel
Motor	2 x reel, 1 x capstan
Inputs	Mic, Line
Outputs	Line
Tape Speed	3 3⁄4 and 7 1⁄2 ips
