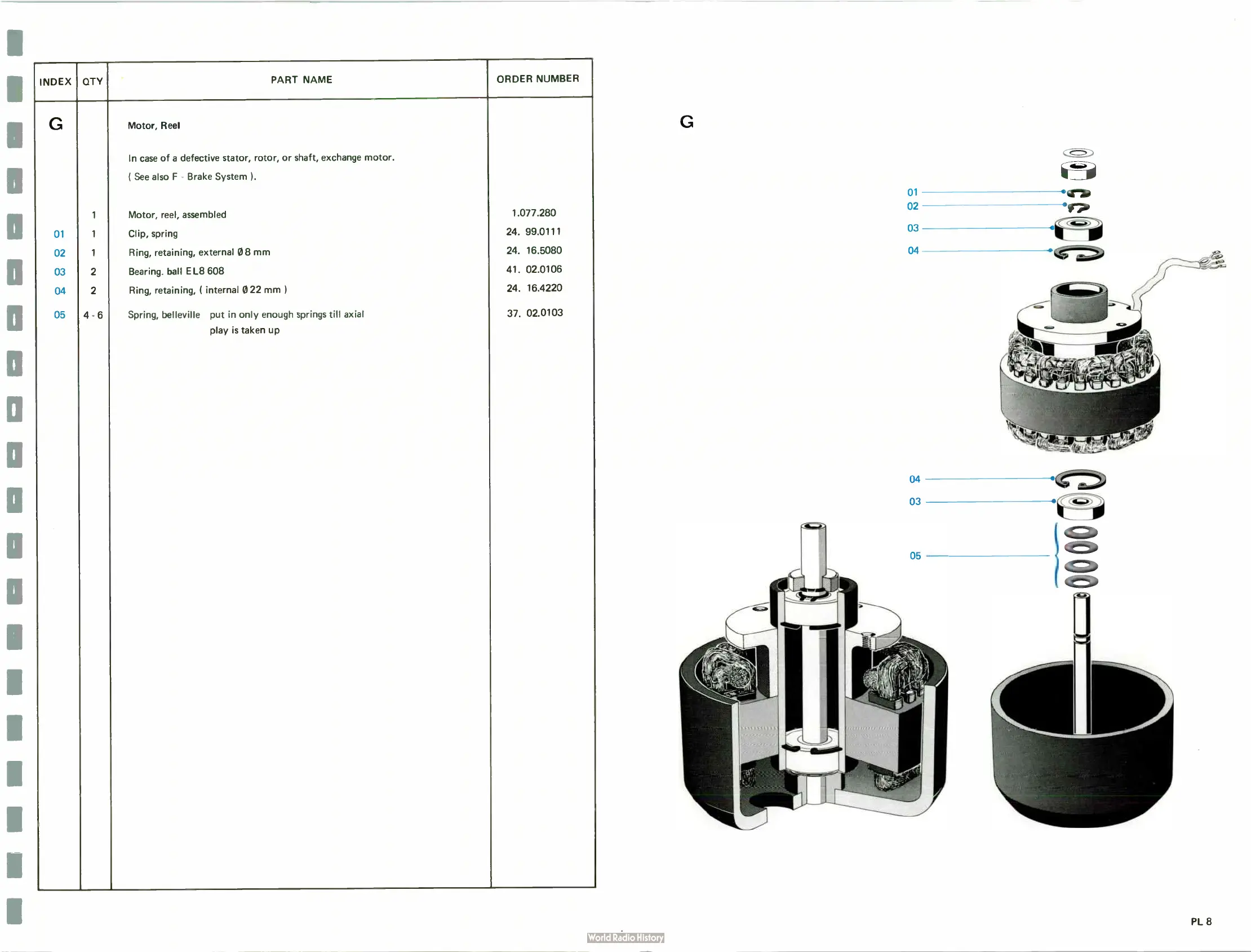

Revox A77

INDEX
QTY
PART NAME
ORDER NUMBER
G
Motor, Reel
In case of a defective stator, rotor, or shaft, exchange motor.
I See also F Brake System 1.
1
Motor, reel, assembled
1.077.280
)1 1 Clip, spring
24. 99.0111
1
Ring, retaining, external 08 mm
24. 16.5080
2
Bearing ball E L8 608
41. 02.0106
2
Ring, retaining, I internal 0 22 mm 1
24. 16.4220
, )J
4 - 6
Spring, belleville put in only enough springs till axial
play is taken up
37. 02.0103
G
01
02
03
04
04
03
sir»
PL 8
