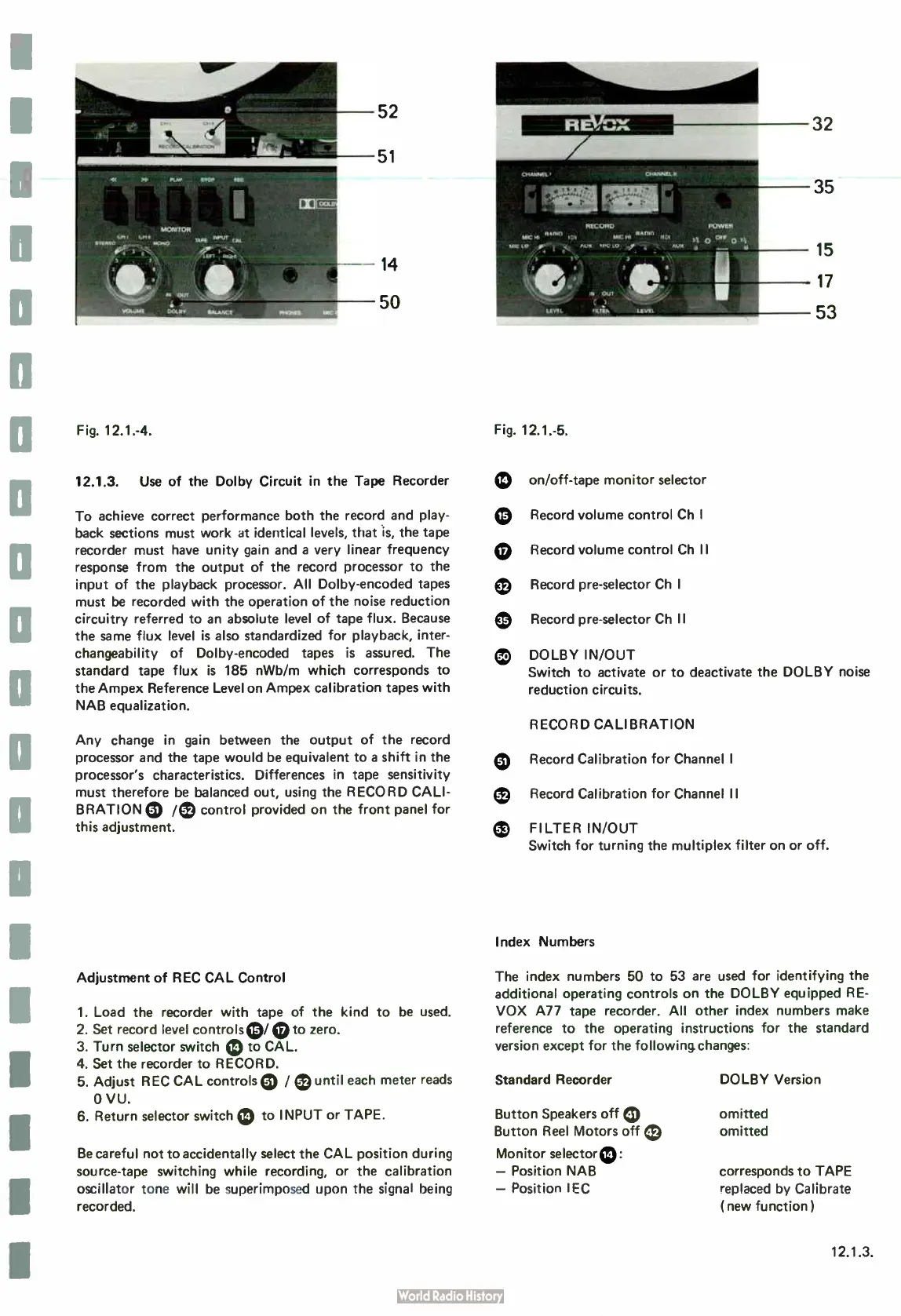

Fig.
12.1.-4.
52
51
14
50
12.1.3.
Use
of
the
Dolby
Circuit
in
the
Tape
Recorder
To
achieve
correct
performance
both
the
record
and
play-
back
sections
must
work
at
identical
levels,
that
is,
the
tape
recorder
must
have
unity
gain
and
a
very
linear
frequency
response
from
the
output
of
the
record
processor
to the
input
of
the
playback
processor.
All
Dolby-
encoded
tapes
must
be
recorded
with
the
operation
of the
noise
reduction
circuitry
referred
to
an
absolute
level
of
tape
flux.
Because
the
same
flux
level
is
also
standardized
for
playback,
inter-
changeability
of
Dolby-
encoded
tapes
is
assured.
The
standard
tape
flux
is
185
nWb/m
which
corresponds
to
the
Ampex
Reference
Level
on
Ampex
calibration
tapes
with
NAB
equalization.
Any
change
in
gain
between
the
output
of
the record
processor
and
the tape
would
be
equivalent
to
a
shift
in
the
processor's
characteristics.
Differences
in
tape
sensitivity
must
therefore
be
balanced
out,
using
the
RECORD
CALI-
BRATION
Q
/
0
control
provided
on
the
front panel
for
this
adjustment.
Adjustment
of
R
EC
CAL
Control
1.
Load
the
recorder
with
tape
of
the
kind
to
be
used.
2.
Set
record
level
controls°
0
to
zero.
3.
Turn
selector
switch
Q
to
CAL.
4.
Set
the
recorder
to
RECORD.
5.
Adjust
R
EC
CAL
controls
CD /
Q
until
each
meter
reads
O
VU.
6.
Return
selector
switch
Q
to
INPUT
or
TAPE.
Be
careful
not
to
accidentally
select
the
CAL
position
during
source-
tape
switching
while
recording,
or
the
calibration
oscillator
tone
will
be
superimposed
upon
the
signal
being
recorded.
Fig.
12.1.-5.
on/off-tape
monitor
selector
Record
volume
control
Ch
I
Record
volume
control
Ch
II
Record
pre-
selector
Ch
I
Record
pre-
selector
Ch
II
32
35
15
17
53
DOLBY
IN/OUT
Switch
to
activate
or
to
deactivate
the
DOLBY
noise
reduction
circuits.
RECORD
CALIBRATION
Record
Calibration
for
Channel
I
Record
Calibration
for
Channel
II
FILTER
IN/OUT
Switch
for
turning
the
multiplex
filter
on
or
off.
Index
Numbers
The
index
numbers
50
to
53
are
used
for
identifying
the
additional
operating
controls
on
the
DOLBY
equipped
RE-
VOX
A77
tape
recorder.
All
other
index
numbers
make
reference
to
the
operating
instructions
for
the
standard
version
except
for
the
following
changes:
Standard
Recorder
Button
Speakers
off
Button
Reel
Motors
off
Monitor
selector0:
Position
NAB
Position
IEC
DOLBY
Version
omitted
omitted
corresponds
to
TAPE
replaced
by
Calibrate
(
new
function
12.1.3.
