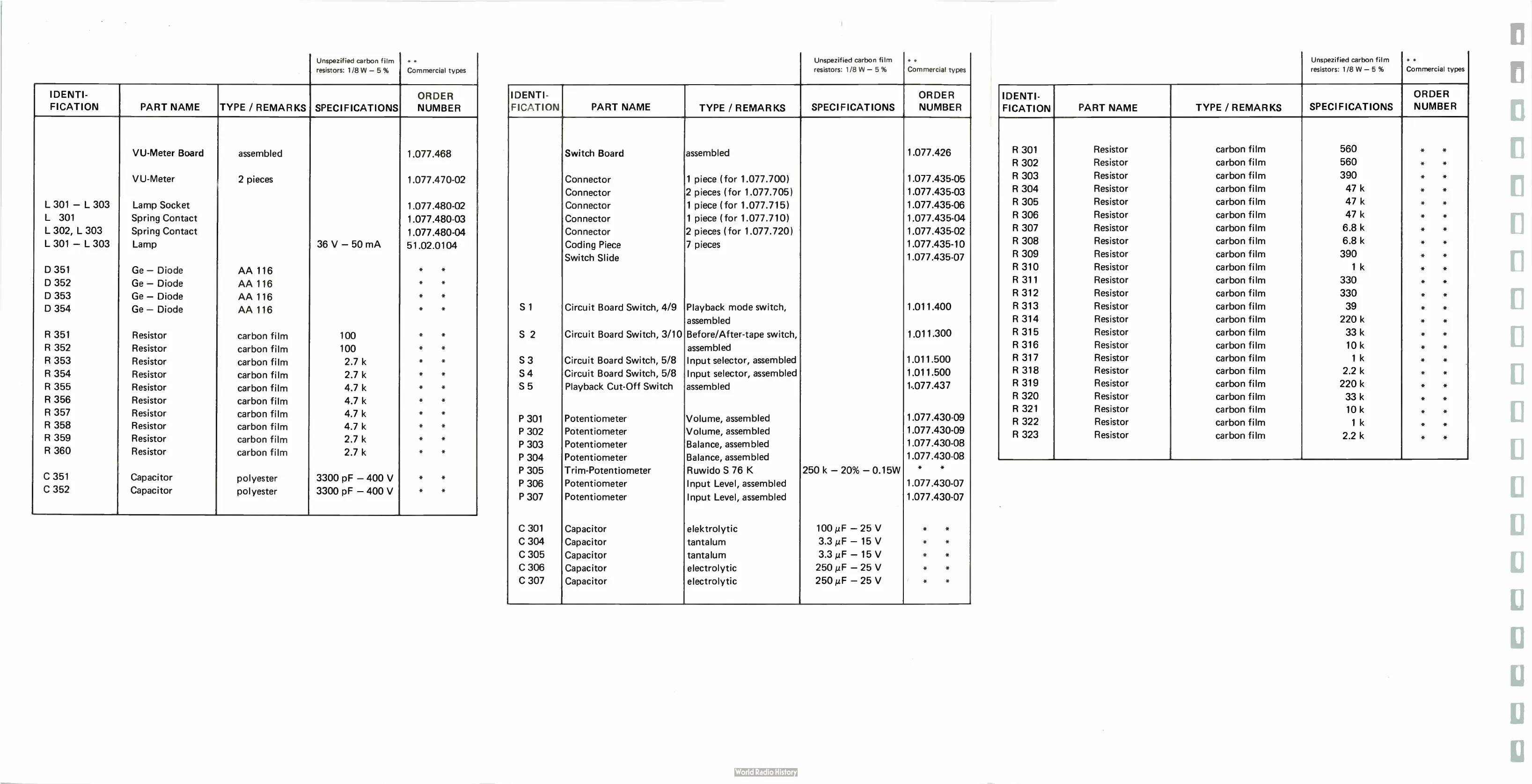

Revox A77

Unspezified carbon film
resistors: 1/8 W — 5 % Commercial types
IDENTI-
FICATION
PART NAME
TYPE / REMARKS
SPECIFICATIONS
ORDER
NUMBER
VU- Meter Board
assembled
1.077.463
VU- Meter
2 pieces
1.077.470-02
L 301 — L 303
Lamp Socket
1.077.480-02
L 301
Spring Contact
1.077.480-03
L 302, L 303
Spring Contact
1.077.480-04
L 301 — L 303
Lamp 36 V — 50 mA
51.02.0104
D 351
Ge — Diode
AA 116
* *
D 352
Ge — Diode
AA 116
* *
D 353
Ge — Diode
AA 116
* *
D 354
Ge — Diode
AA 116
* *
R 351
Resistor
carbon film
100
* *
R 352
Resistor
carbon film
100
* *
R 353
Resistor
carbon film
2.7 k
* *
R 354
Resistor
carbon film
2.7 k
* *
R 355
Resistor
carbon film
4.7 k
* *
R 356
Resistor
carbon film
4.7 k
* *
R 357
Resistor
carbon film
4.7 k
* *
R 358
Resistor
carbon film
4.7 k
* *
R 359
Resistor
carbon film
2.7 k
* *
R 360
Resistor
carbon film
2.7 k
* *
C 351
Capacitor
polyester
3300 pF — 400 V * *
C 352
Capacitor
polyester
3300 pF — 400 V
* *
Unspezified carbon film
resistors: 18 W — 5
. .
cm! types
IDENTI-
FIC^.TION
PART NAME
TYPE / REMARKS
SPECIFICATIONS
ORDER
NUMBER
Switch Board
assembled
1.077.426
Connector
1 piece ( for 1.077.700) 1.077.435-05
Connector
2 pieces ( for 1.077.705) 1.077.435-03
Connector
1 piece ( for 1.077.715)
1.077.435-06
Connector
1 piece ( for 1.077.710) 1.077.435-04
Connector
2 pieces ( for 1.077.720) 1.077.435-02
Coding Piece
7 pieces
1.077.435-10
Switch Slide
1.077.435-07
S 1
Circuit Board Switch, 4/9 Playback mode switch,
assembled
1.011.400
S 2
Circuit Board Switch, 3/10 Before/After-tape switch,
assembled
1.011.300
S 3 Circuit Board Switch, 5/8 Input selector, assembled
1.011.500
S 4 Circuit Board Switch, 5/8 Input selector, assembled
1.011.500
S 5
Playback Cut- Off Switch assembled
1-.077.437
P 301 Potentiometer Volume, assembled
1.077.430-09
P 302 Potentiometer
Volume, assembled
1.077.430-09
P 303
Potentiometer
Balance, assembled
1.077.430-08
P 304
Potentiometer Balance, assembled
1.077.430-08
P 305 Trim- Potentiometer Ruwido S 76 K 250 k — 20% — 0.15W
* *
P 306 Potentiometer Input Level, assembled
1.077.430-07
P 307 Potentiometer
Input Level, assembled
1.077.430-07
C 301
Capacitor elektrolytic
100pF — 25 V
* *
C 304
Capacitor tantalum
3.3 pF — 15 V
* *
C 305 Capacitor
tantalum
3.3 pF — 15 V
* *
C 306
Capacitor electrolytic
250 pF — 25 V
* *
C 307 Capacitor
electrolytic
250 pF — 25 V
Unspezified carbon film
resistors: 1/8 W — 5 %
Commercial types
IDENTI-
FICATION
PART NAME TYPE / REMARKS
SPECIFICATIONS
ORDER
NUMBER
R 301
Resistor
carbon film
560
*
R 302
Resistor
carbon film
560
.
R 303
Resistor carbon film
390
* *
R 304
Resistor carbon film
47 k
* *
R 305
Resistor carbon film 47 k
* *
R 306
Resistor
carbon film
47 k * *
R 307
Resistor carbon film 6.8 k
* *
R 308 Resistor
carbon film
6.8 k * *
R 309
Resistor
carbon film 390
* *
R 310
Resistor
carbon film
1 k
* *
R 311 Resistor
carbon film
330
* *
R 312
Resistor carbon film
330
* *
R 313 Resistor
carbon film
39
* *
R 314 Resistor
carbon film 220 k * *
R 315 Resistor
carbon film
33 k * *
R 316
Resistor
carbon film 10 k
* *
R 317
Resistor
carbon film
1 k * *
R 318
Resistor
carbon film
2.2 k * *
R 319
Resistor
carbon film
220 k * *
R 320
Resistor
carbon film
33 k * *
R 321
Resistor
carbon film
10 k
* *
R 322
Resistor
carbon film 1 k
* *
R 323
Resistor
carbon film
2.2 k *
