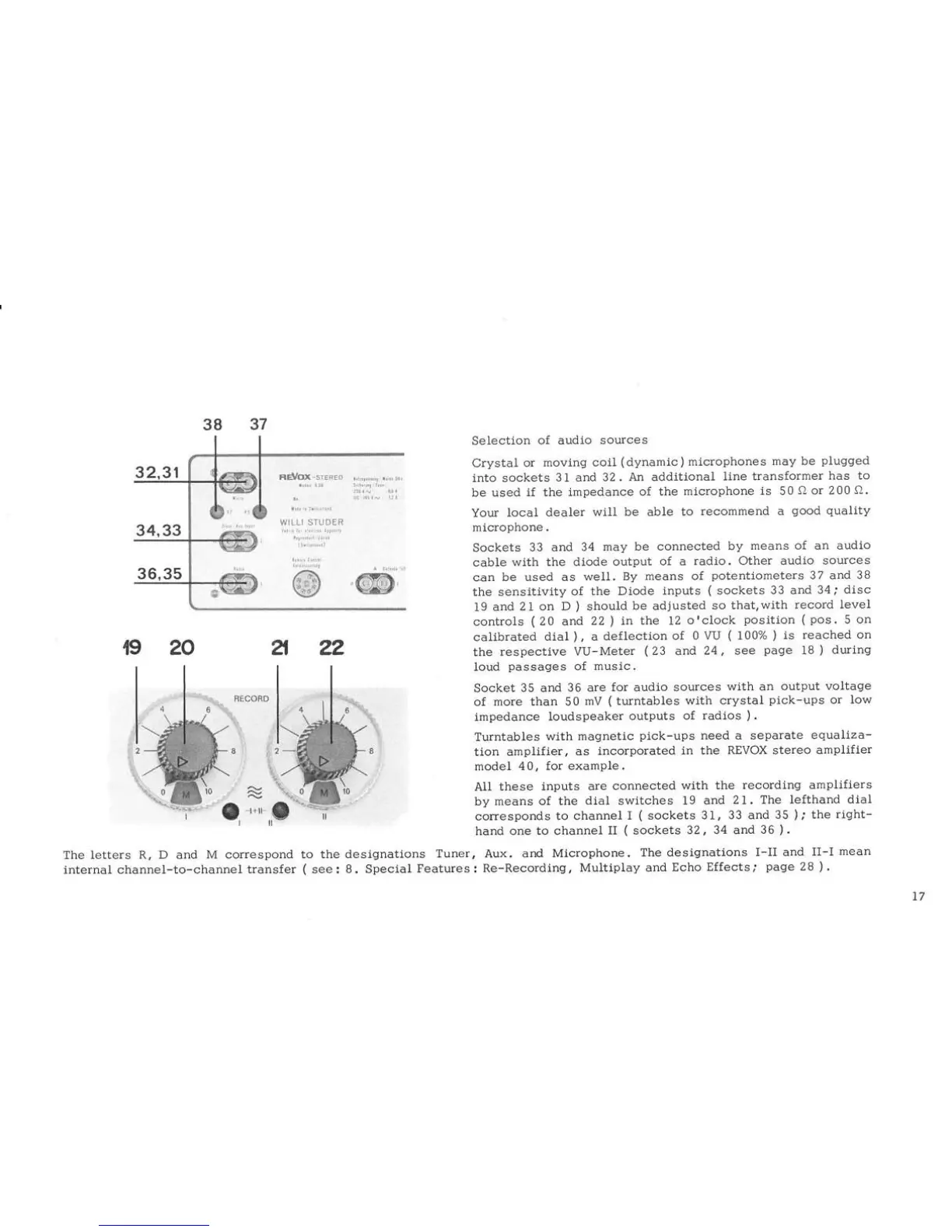

Selection
of audio
sources
Crystal
or
moving coil
(dynamic)
microphones
may be
plugged
into sockets
3 I and
32 .
An additional
line
transformer
has to
be used
if the lmpedance
of
the
microphone
is
50Qor
2001f.
Your
local dealer
wl]1 be
able
to
recommend
a
good
quality
microphone.
Sockets
33
and 34
may be connected
by
means of an audio
cable
with the diode
output
of a
radio. Other audio
sources
c.an
be used as
well.
By means
of
potentiometers
37 and
38
the sensitivityof
the Diode
inputs
(
sockets
33 and
34"
disc
19
and
2l on D
)
should
be adjusted
so
that,with
record
level
controls
(20
and
221 in lhe 12
o'clock
position
(pos.
5
on
calibrated
dial
),
a
deflection
of 0
VU
(
100%
)
is reached
on
the
respective
VU-Meter
(
23 and
24, see
page
18
)
durlng
loud
passages
of
music.
Socket
35 and
36 are
for audio sources
with an output
voltage
of
more than 50
mV
(
turntables
with crystal
pick-ups
or low
impedance
loudspeaker
outputs
of
radios
).
Turntables
wlth magnetic
pick-ups
need a separate
equaliza-
tlon amplifier,
as
incorporated
in the REVOX stereo
amplifier
model
40, for example.
A1I these
inputs
are connected
with the
recording amplifiers
bymeans
of the
dial
switches
19 and
21.
The lefthand
dial
corresponds
to channel
I
(
sockets
31, 33 and
35
),'the
right-
hand
one to channel
II
(
sockets
32, 34 and
36
).
The
letters R, D
and
M correspond
to the designations
Tuner, Aux. and
Microphone.
The
designatlons
I-II and
II-I
mean
internal
channel-to-channel
transfer
(
see: B. Speclal
Features :
Re-Recording,
Multiplay and
Echo
Effects.'
page
28
)
.
37
I7
