Revox G36 Service Manual

INDEX ORDER
N°
PART DESCRIPTION SERIES Qu Ind
III
I II III
A

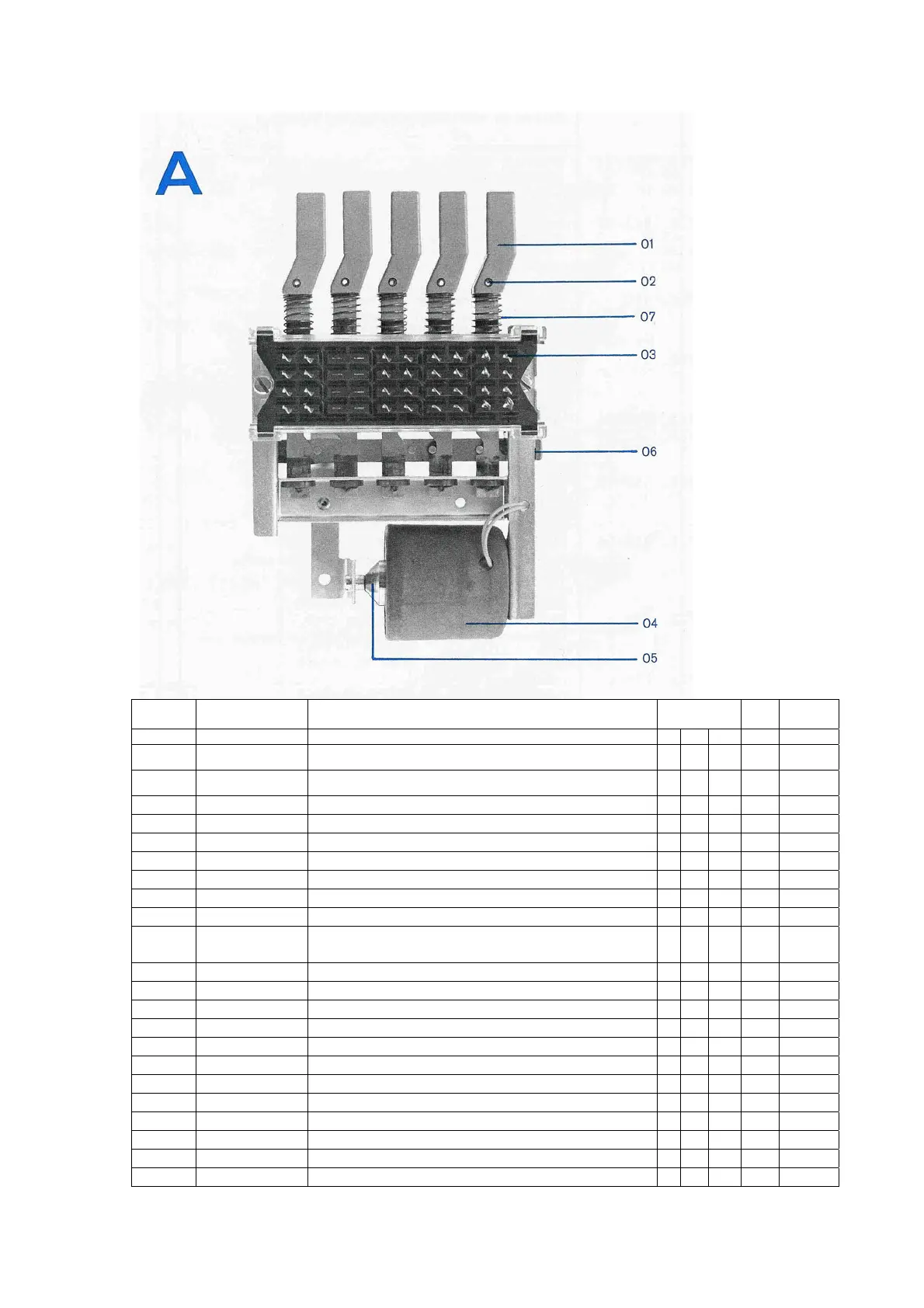

Push Button Assembly
1.736.550 Push Button Assembly Complete Colour 1035 x x 1 7140
1.736.550 Push Button Assembly Complete Colour 6760 x 1 7141
20.21.7203 Self Tapping Screw (Push Button Mounting) x x x 4 7142
01 1.736.578-02 Push Button Grey Colour 1035 x x 5 7143
01 1.736.578-02 Push Button Grey Colour 6760 x 5 7144
02 25.16.1211 Push Button Retaining Pin x x x 5 7145
54.04.0118 Diode, Noise Suppression 50V / 100mA
(Diode on Relay - socket Series III)
x x x 4 7146
50.04.0128 Switching Diode 50V / 500mA x 1
03 1.736.587 Contact, Stationary x 26 7147
03 1.736.592 Contact, Stationary x x 26 7148
1.736.591 Paxolin Switch Lever x x x 5 7149
1.736.588 Moving H Contact x x x 8 7150
04 1.014.300 Solenoid, Push Button Release x x x 1 7151
05 1.014.910-01 Slug, For all Solenoid x x x 3 7152
06 1.736.551-05 Leaf Spring, Locking Bar x x x 3 7153
1.736.551-11 Contact Spring x x x 8 7154
07 1.736.551-07 Push Button Spring x x x 5 7155
1.736.150 Speed Selector Switch Complete x x x 1 7156
1.736.151 Speed Selector Switch Complete 7.5/15 ips x 1

Revox G36 Specifications

General

Signal to Noise Ratio	60dB
Heads	3 (Erase, Record, Playback)
Inputs	Microphone, Line
Outputs	Line
Type	Reel-to-reel
Track System	2-track
Frequency Response	30Hz to 20kHz
Reel Size	Up to 10.5 inch
Tape Speed	3.75, 7.5, 15 ips
