Revox G36 Service Manual

INDEX ORDER
N°
PART DESCRIPTION SERIES Qu Ind
III
I II III

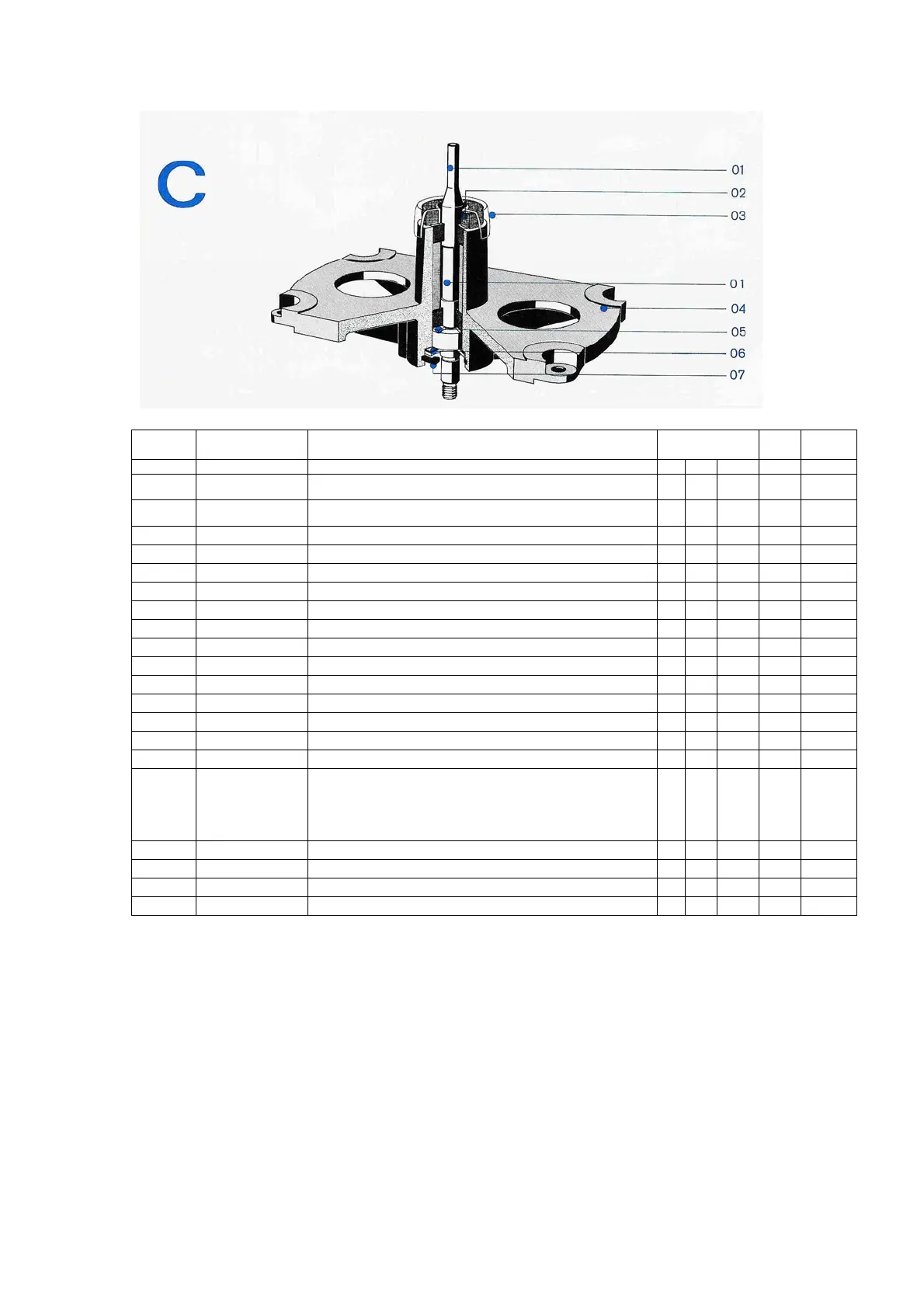

C
Capstan Bearing Plate with Shaft
1.736.128 Capstan Bearing Plate Complete with Shaft 50 Hz x x x 1 7082
1.736.129 Capstan Bearing Plate Complete with Shaft 60 Hz x x x 1 7087
01 1.736.128-02 Capstan Shaft 50 Hz x x x 1 7083
01 1.736.129-02 Capstan Shaft 60 Hz x x 1 7088
01 1.736.120-02 Capstan Shaft 50 Hz 7.5 / 15 ips 4/8 pol x 1
01 1.736.122-02 Capstan Shaft 50 Hz 7.5 / 15 ips 6/12 pol x 1 7084
02 1.736.128-08 Felt Ring (Lubrication) x x x 1
03 1.736.128-06 Grease Cup x x x 1 7086
04 1.736.130 Capstan Bearing Plate without shaft x x x 1
05 1.062.351-03 Thrust Washer, Top x x x 1
06 1.736.128-04 Felt Washer x x 1
06 1.736.125-03 Low friction Washer, Plastic Coated x 1
when replacing felt washer (1.736.128-04) with low
friction washer (1.736.125-03) the steel shim 1mm
(1.736.128-03) has to be interchanged with the steel
shim 1.736.125-04 of 0.5 mm thickness.
1.736.128-03 Steel Shim 1 mm x x 1
37.02.0107 Spring Washer EL9 x 1
Spring Washer x x 2
07 24.16.4240 True – arc ring 24 x x x 1

Revox G36 Specifications

General

Signal to Noise Ratio	60dB
Heads	3 (Erase, Record, Playback)
Inputs	Microphone, Line
Outputs	Line
Type	Reel-to-reel
Track System	2-track
Frequency Response	30Hz to 20kHz
Reel Size	Up to 10.5 inch
Tape Speed	3.75, 7.5, 15 ips
