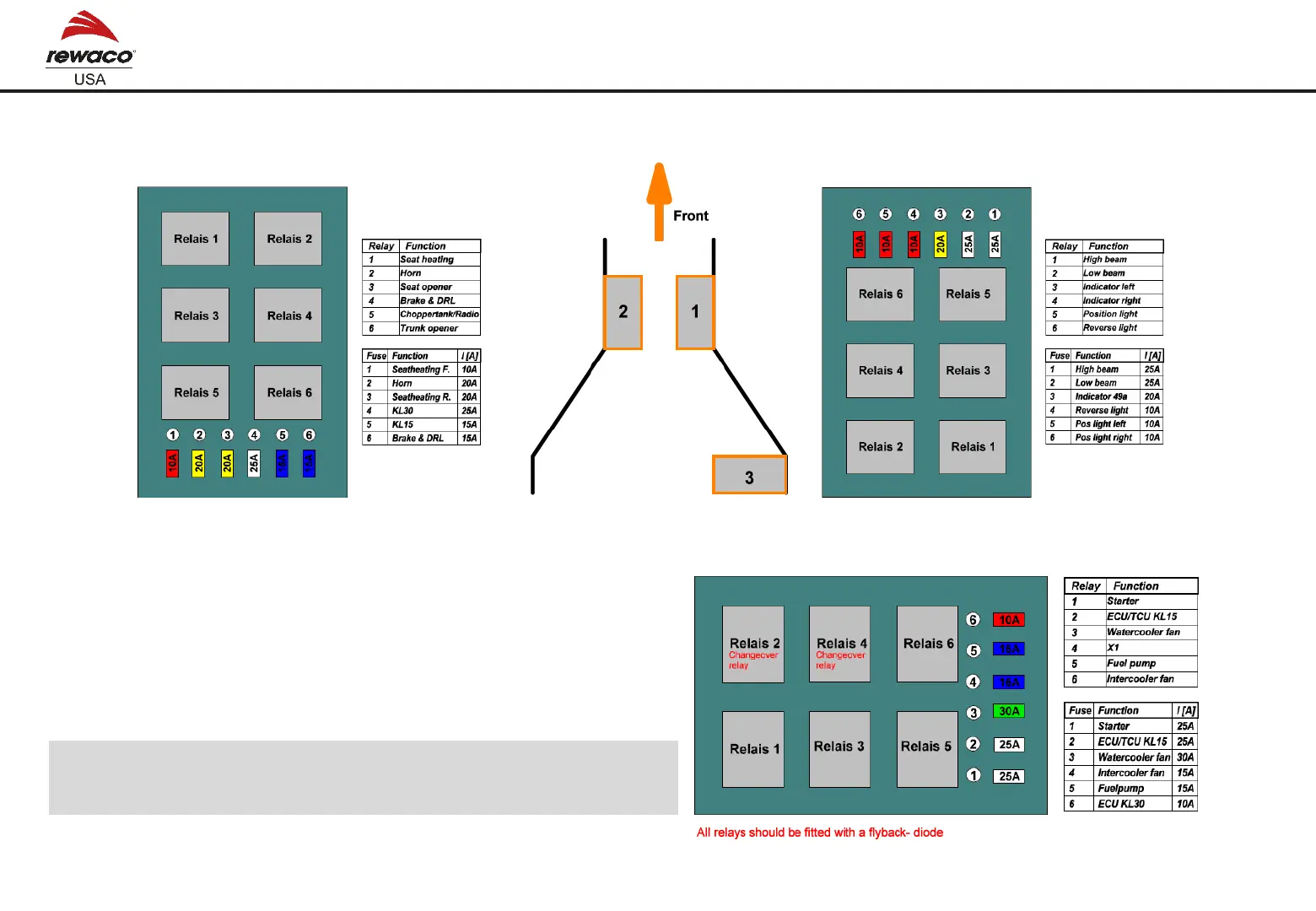

Electrical / Fuses - Layout 1
Access is via the folded-up driver's seat. To open the driver's seat, follow the
instructions on page 30.
Box 1 and Box 2 are in the front frame of the trike under the driver's seat, Box 3
is in the rear frame of the trike, on the right above the fuel tank. To access Box
3, the body must be opened. See page 38. In the event of a fuse defect, contact
a rewaco dealer.
As a rule, a defect in the vehicle electrics must be repaired by a rewaco dealer.
47
If the fault cannot be rectified by replacing a defective fuse, the electrical system
must be checked by a rewaco dealer as soon as possible. Replacing a defective
fuse several times can lead to further damage.
Faults and malfunctions
