ILLUSTRATED PARTS MANUAL:
FLOWLINE COMB & WIRE
BINDER RANGE
POSITION GEAR SHAFT RETAINER (D55236) AS SHOWN AND FASTEN GEARBOX END PLATE TO
GEARBOX ASSEMBLY USING 4 OFF M5x20 SCREWS.

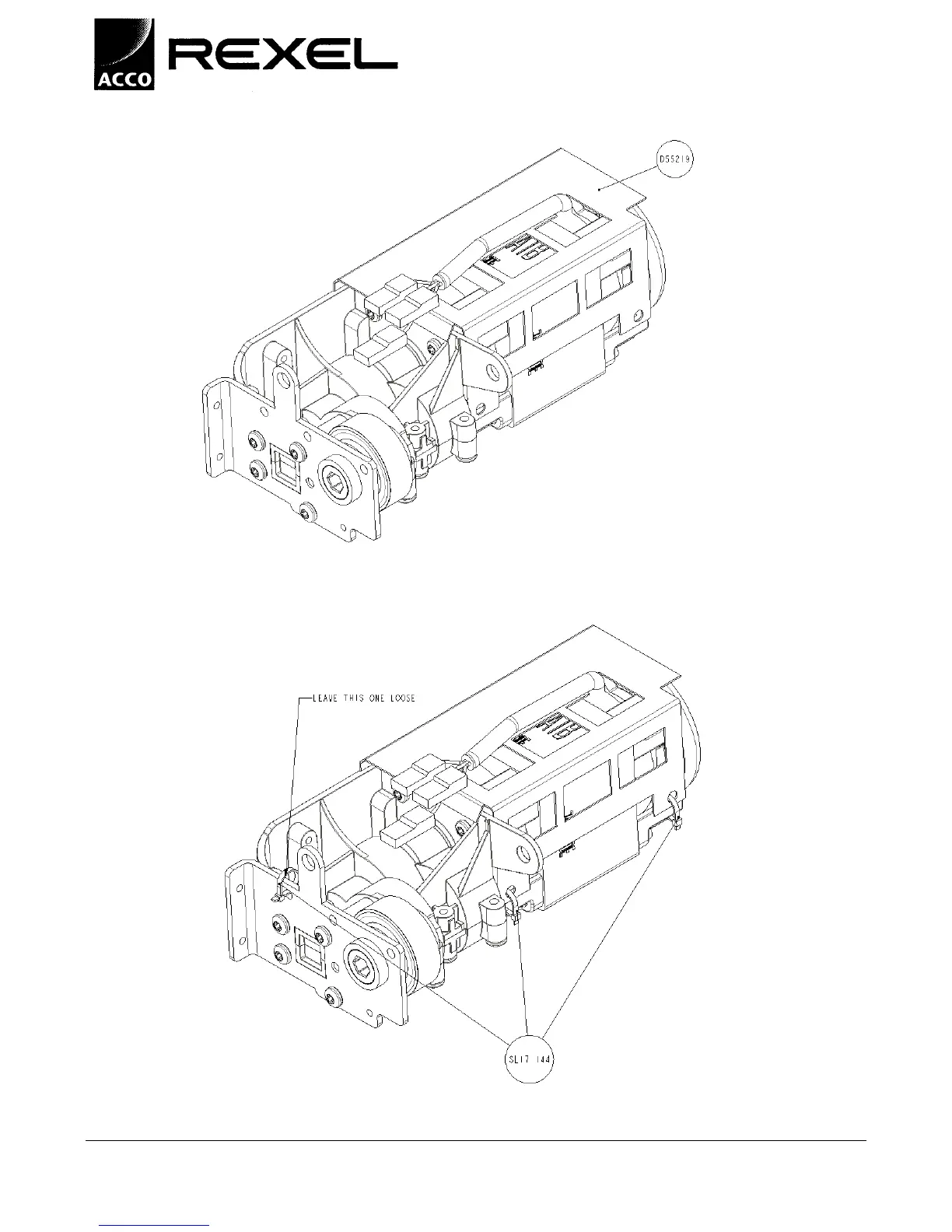

STEP 7 – (230V MOTOR): FOLD MOTOR INSULATOR (D55219) ALONG CREASES AND PUT AROUND
THE MOTOR. THE MOTOR WIRES GO THROUGH A HOLE AT THE TOP OF THE INSULATOR.
STEP 8 – (230V MOTOR): PUT ON 3 X CABLE TIES AS SHOWN. TIGHTEN THE CABLE TIES HOLDING
THE MOTOR INSULATOR TO THE MOTOR. LEAVE THE CABLE TIE ON THE END PLATE LOOSE
