ILLUSTRATED PARTS MANUAL:
FLOWLINE COMB & WIRE
BINDER RANGE

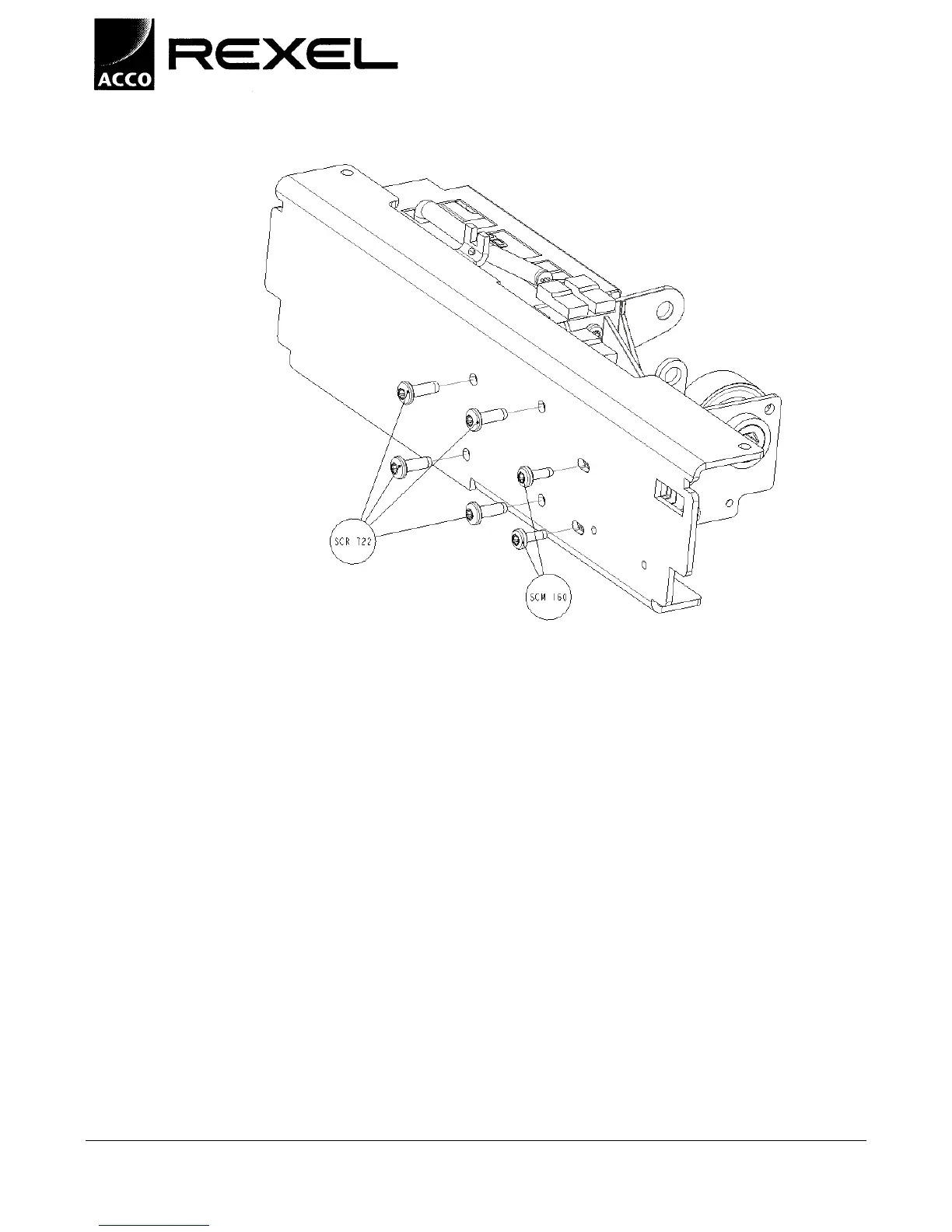

STEP 9 – (230V MOTOR): POSITION MOTOR SUPPORT BRACKET (D55193) AGAINST GEARBOX
ASSEMBLY, ENSURING THE HOLES IN THE MOTOR INSULATOR LINE UP WITH THE HOLES IN THE
GEAR- BOX AND MOTOR SUPPORT BRACKET. SECURE GEARBOX ASSEMBLY TO MOTOR
SUPPORT BRACKET USING 4 OFF M5x16 SCREWS (INTO GEARBOX CASINGS) AND 2 OFF M4x12
SCREWS (INTO GEARBOX END PLATE).
