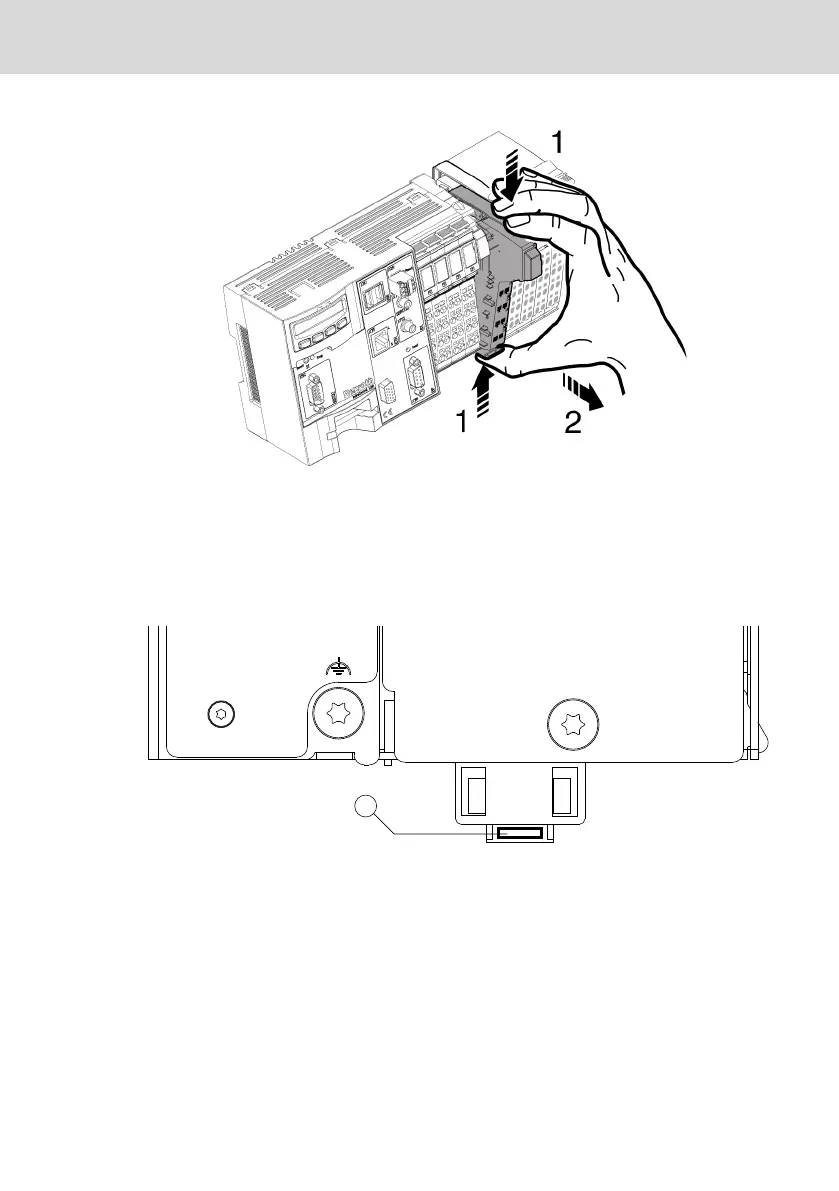

Fig. 10-15: Before demounting the control, remove the first Rexroth Inline terminal
10.5.3 Removing control from top-hat rail
1. Loosen the release levers mounted at the bottom side by pulling the re-
lease lever downwards using a screwdriver.
① Release lever
Fig. 10-16: Position of the release lever
2. Tilt the control upwards (C in figure 10-17).
L25, L45, L65, L75 and L85
Bosch Rexroth AG
Mounting, demounting and electric installation
DOK-CONTRL-IC*LX5*****-IT02-EN-P
27/53
