REXROTH MCR-C - Efficiencies; Efficiency Curves; Charge Pressure Requirements

Bosch Rexroth AG, RE 15197/02.2017
8 MCR-C | Radial piston motor for compact drives

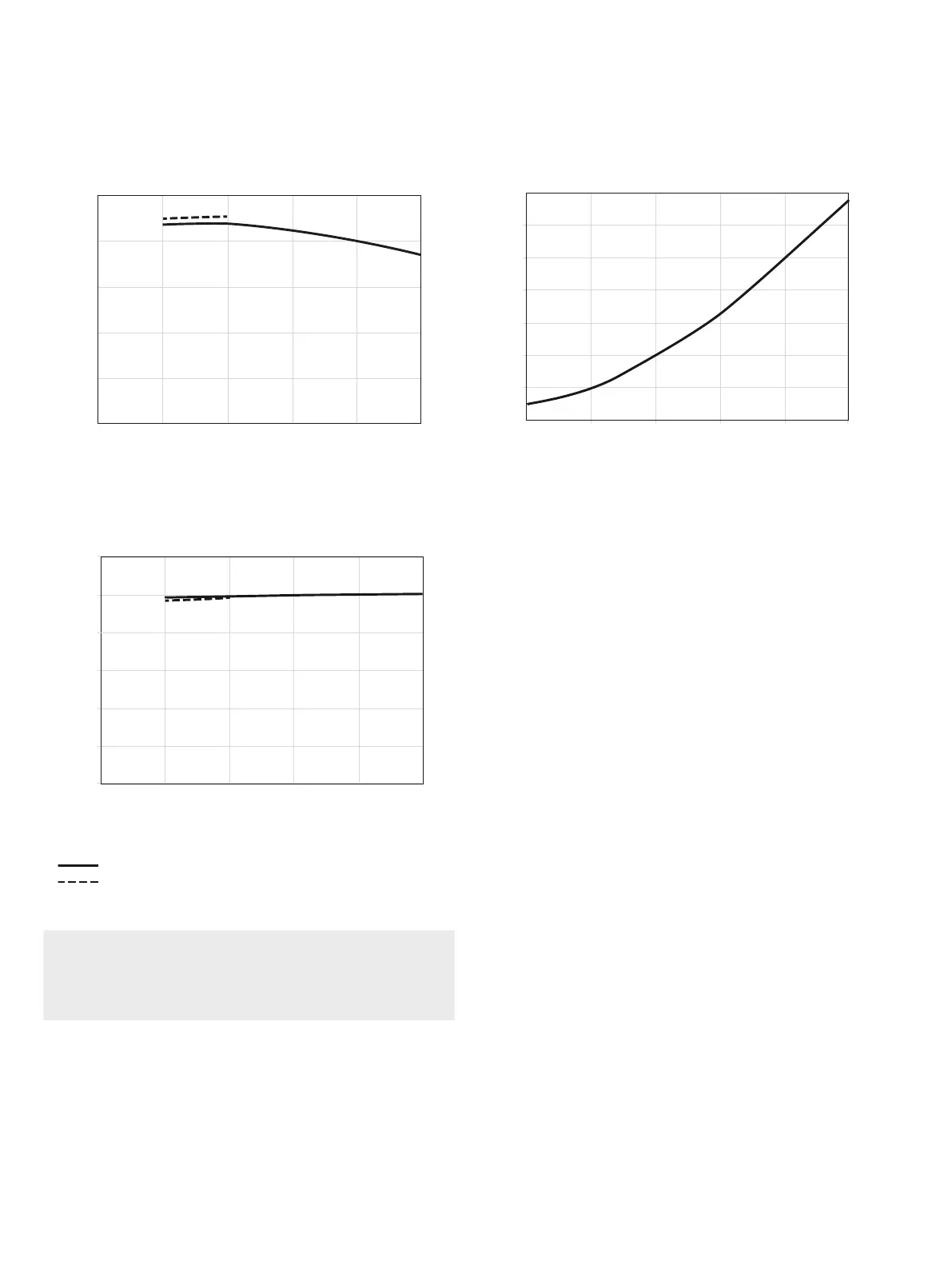

Effi ciencies
Effi ciencies
▼ Mechanical effi ciency
40
20
0
0 0.4 0.80.2 0.6 1.0
60
80
100
Speed n/n
max
Mechanical effi ciency [%]
▼ Volumetric effi ciency
40
60
100
20
0
120
100 bar / 1450 psi
300 bar / 4350 psi
0 0.4 0.80.2 0.6 1.0
80
Speed n/n
max
Volumetric effi ciency [%]
Notice
For specifi c performance information or operating
conditions contact the Engineering Department at
BoschRexroth, Glenrothes.
▼ Charge pressure
0 0.4 0.80.2 0.6 1.0
6
2
8
14
4
10
12
0
Speed n/n
max
Minimum charge pressure [bar]
