Radial piston motor for compact drives | MCR-C
Permitted loading on drive shaft
9

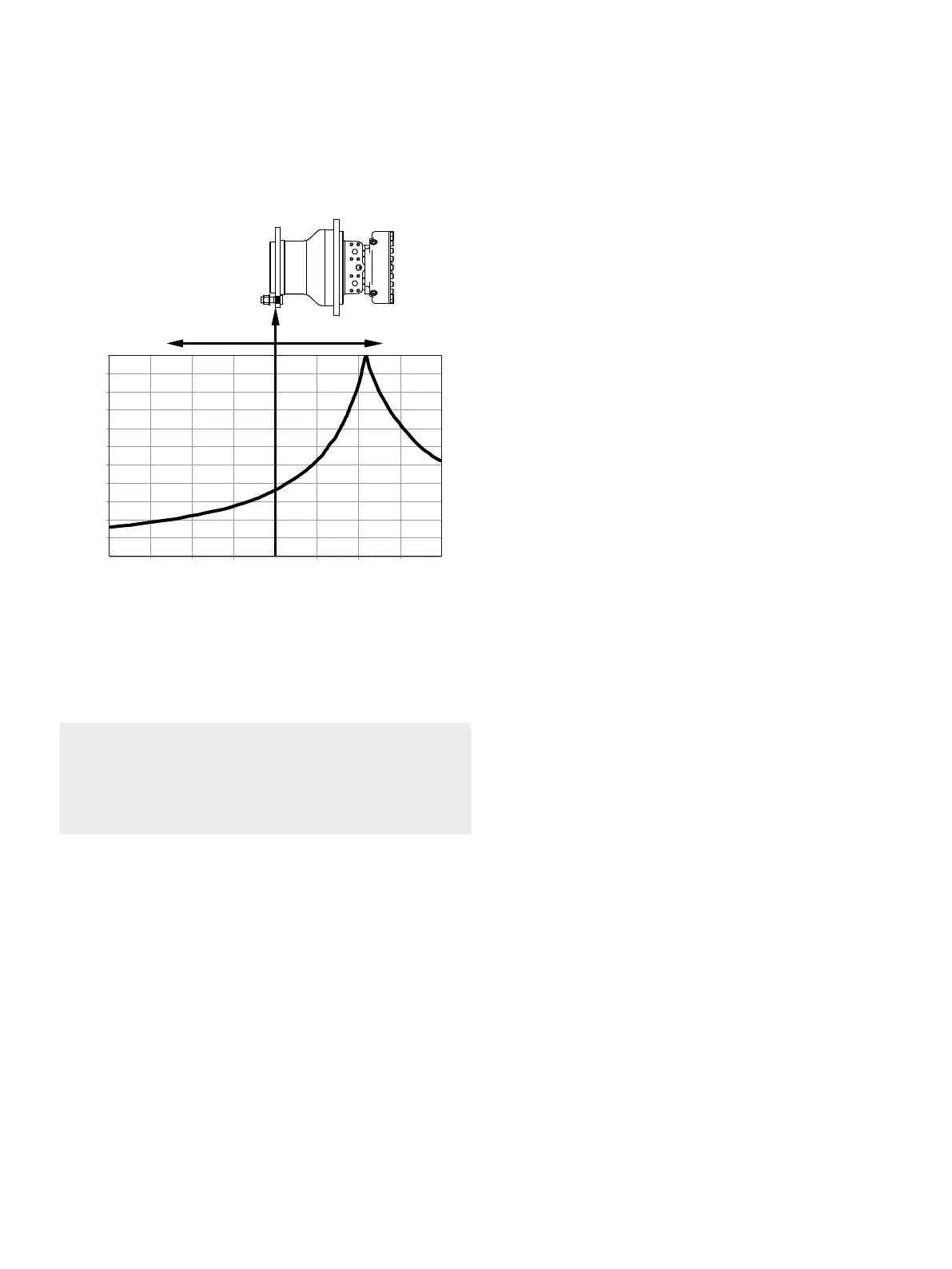

Permitted loading on drive shaft
(Speed n=50rpm, pressure diff erential Δp=250bar, 2000hrs L10 life at 50°C)
Drive shaft ...20C F280...
Maximum radial load F
R max
(with axial load F
ax
= 0)
200 150 100 50
0
-50 -100 -150 -200
+
220
200
160
120
80
40
0
–
Radial load F
R
[kN]
Off set x mm from shaft end face
Maximum axial load F
ax max
(with radial load F
R
= 0):
F
ax max
= 113000N ← +
F
ax max
= 49500N → —
Notice
▶ These values and graphs are for initial guidance only
▶ For actual motor life calculations under typical or
specifi ed duty cycles, contact the Engineering
Department at Bosch Rexroth, Glenrothes.
