REXROTH VT 3006 - Indicator; Adjustment Elements; Jumpers for Settings

+ 100 %
+ 50 %
+ 1 %
– 1 %
– 50 %
– 100 %
20
200
600
800
400
w
I
B
I
A
F1
2,5 A T
J6
J5
X1
VT
3006
R1
H1
R2
H2
R3
H3
R4
H4
H11
H1
2
t5
t1
t2
t3
t4
ramp time
5 s
1 s
J5
J5
J6
J6
Jx
Jx
= bridge
= open
= delivery state
6/8 Bosch Rexroth AG Hydraulics
VT 3006 RE 29926/10.06

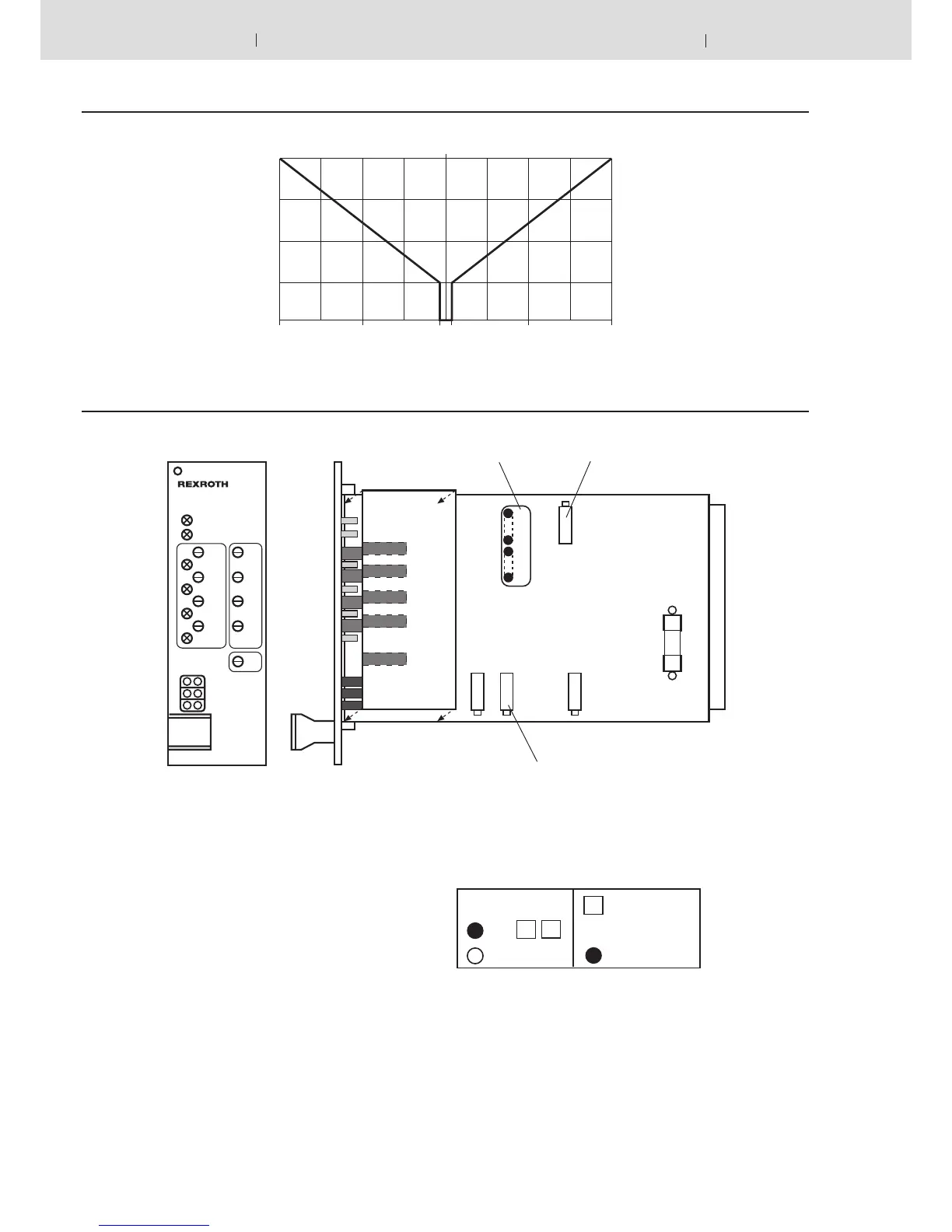

Output curve
← Command value in % →
Output current in mA →
Solenoid „A“ Solenoid „B“
Indicator / Adjustment elements
Max. ramp time
approx. 1 s or 5 s
Biasing current
solenoid “A“
Biasing current
solenoid “B“
LED-Anzeigen:
H1
Call-up command value 1
H2
Call-up command value 2
H3
Call-up command value 3
H4
Call-up command value 4
H11
Operating voltage „power on“ (yellow)
H12
Indication „Ready for operation“ (green)
Potentiometer:
R1
Command value 1
R2
Command value 2
R3
Command value 3
R4
Command value 4
t1 to t5
Ramp times
Measuring sockets:
w
Command value solenoid current
I
A
Actual current value solenoid „A“
I
B
Actual current value solenoid „B“
Meaning of the jumpers on the card for the settings
(Label on the back of the front plate)
jumper plugged in
jumper open
delivery condition
ramp time
Note:
The loss of unused jumpers can be avoided by plugging these
jumpers into only one pin.
