Ruijie RG-NBS3100 Series Switches Hardware Installation and Reference Guide Product Overview
6

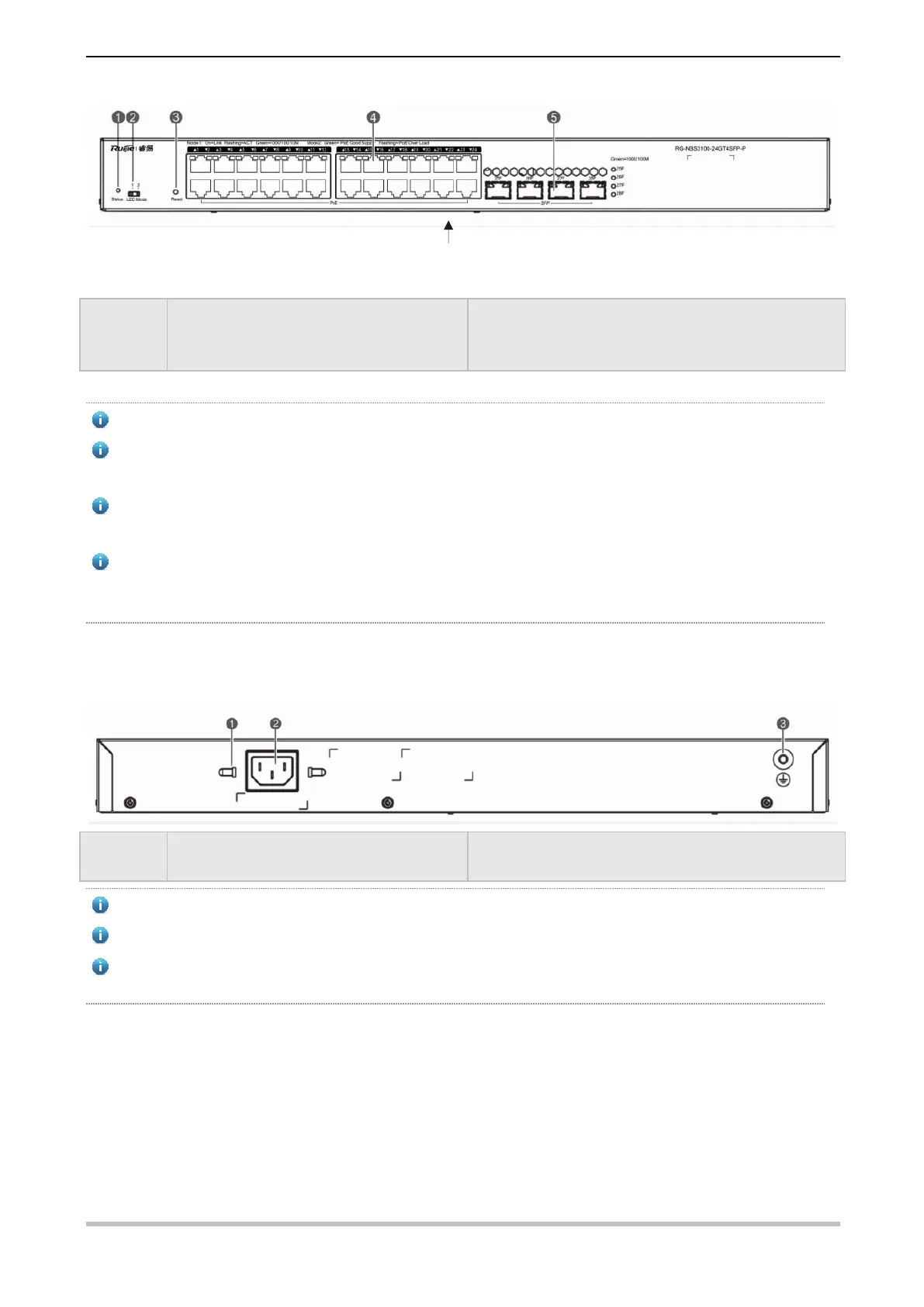

1. System status LED
2. PoE mode switch-over button
3. Reset button
4. 10/100/1000 Base-T Ethernet port
5. 1000Base-X SFP port
6. Nameplate on the bottom of the device
The switch restarts after the reset button is pressed for less than 2 seconds.
The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the
status LED blinks).
When the button is turned to the left position (Mode 1), the LED indicates the switching status of the port. When
the LED is solid green, the link is Up. When the LED blinks green, data is being transmitted or received.
When the button is turned to the right position (Mode 2), the LED indicates the PoE status of ports. When the LED
is solid green, the PoE-supported ports are supplying power. When the LED blinks green, the power of the ports is
overloaded.
Back Panel
Figure 1-6 Back Panel of the RG-NBS3100-24GT4SFP-P
1. Power cord retention clips
2. Three-hole AC power receptacle
3. Protective earthing terminal
This device relies on the separate protective earthing terminal.
The device installation must be permanently grounded.
The device must be intended to be used in a location with equipotential bonding (such as a telecommunication
center, a dedicated computer room, or a restricted access area).
Heat Dissipation
The RG-NBS3100-24GT4SFP-P adopts fans for heat dissipation, thereby ensuring normal operation. You must reserve
10 cm distance space at both sides and the back plane of the cabinet to allow airflow. It is recommended that you clean
the device once every three months to avoid dust from blocking vents.
Figure 1-7 Flow Scheme of Heat Dissipation
To Next Page
