Ruijie RG-NBS3100 Series Switches Hardware Installation and Reference Guide Product Installation
23

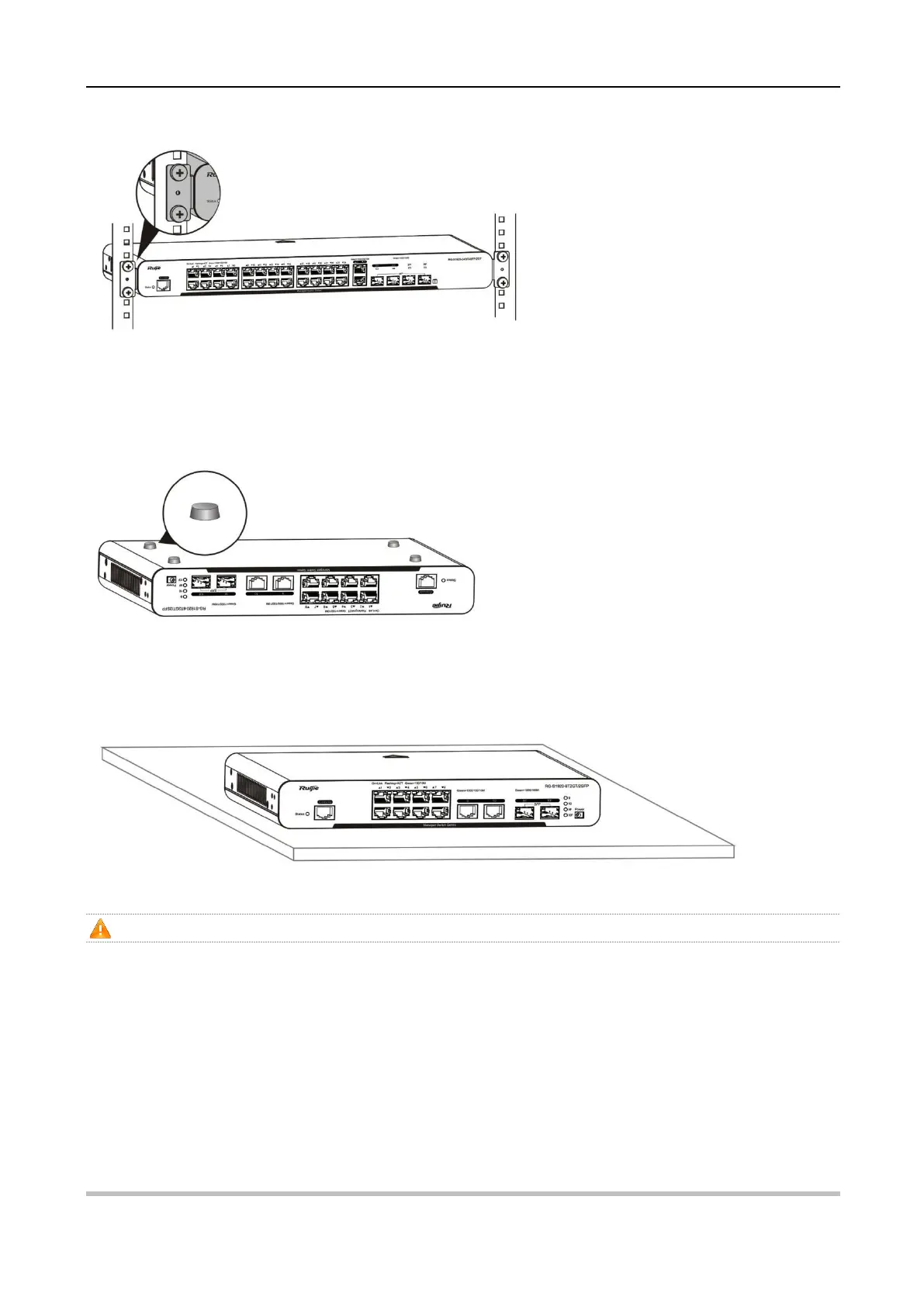

Figure 3-6 Attaching the Brackets to the Rack (24-Port Switch)
3.3.2 Mounting the Switch on a Table
Attach the four rubber pads to the recessed areas on the bottom of the switch, as shown in Figure 3-7 and Figure 3-8.
Figure 3-7 Attaching the Rubber Feet to the Recessed Areas
Place the switch on the table, as shown in Figure 3-8.
Figure 3-8 Mounting the Switch on the Table
The device must be installed and operated in the place that can restrict its movement.
3.4 Grounding the Switch
The RG-NBS3100 has a PGND on the back panel. First connect the PGND to the grounding lug of the rack and then
connect the grounding lug to the grounding bar of the equipment room.
Precautions
