Ruijie RG-NBS3100 Series Switches Hardware Installation and Reference Guide Product Overview
9
Front Panel

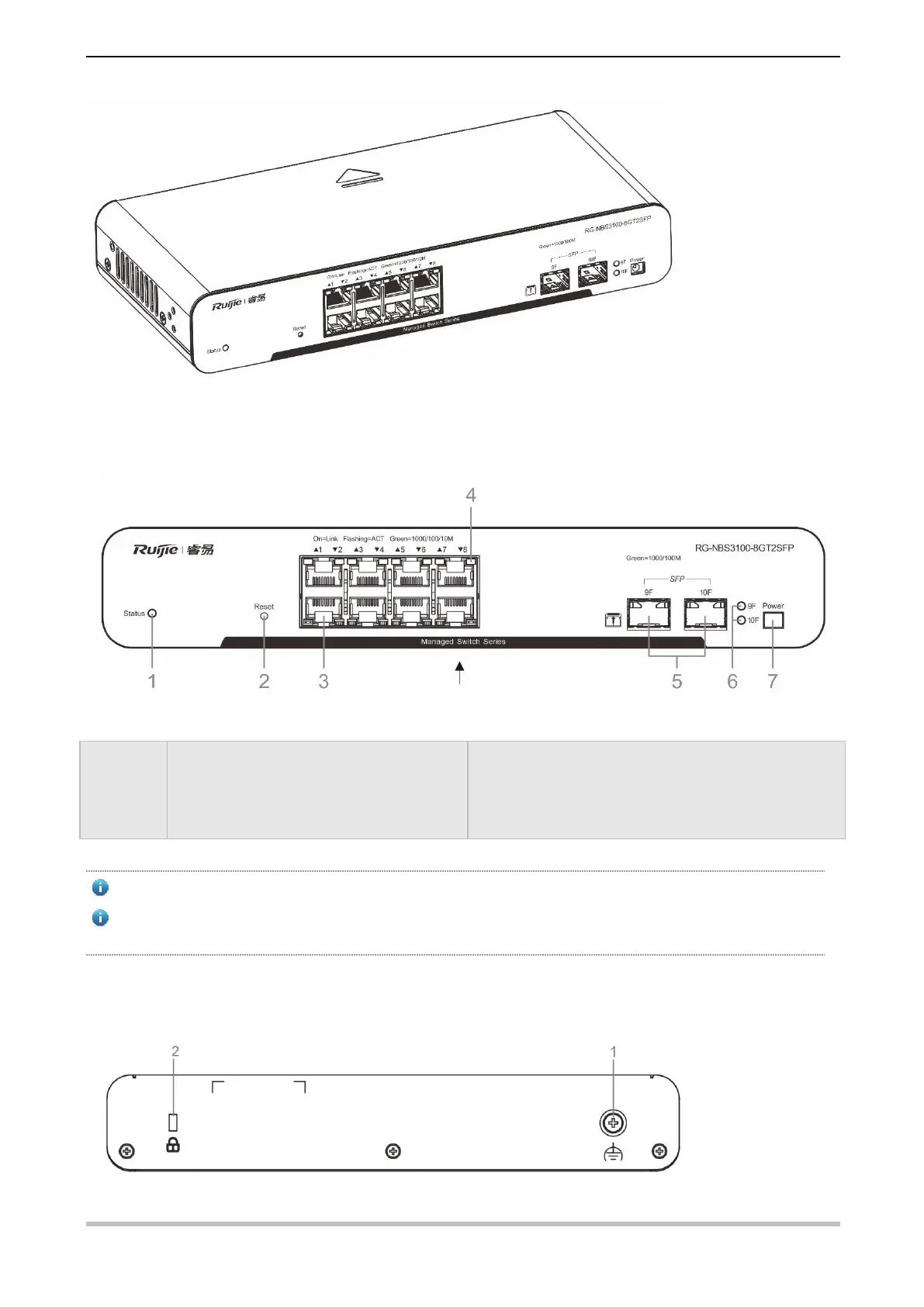

Figure 1-9 Front Panel of the RG-NBS3100-8GT2SFP
8
Note:
1. System status LED
2. Reset button
3. 10/100/1000 Base-T Ethernet port
4. Copper port status LED
5. 1000 Base-X SFP port
6. SFP port status LED
7. DC power port
8. Nameplate on the bottom of the device
The switch restarts after the reset button is pressed for less than 2 seconds.
The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the
status LED blinks).
Back Panel
Figure 1-10 Back Panel of the RG-NBS3100-8GT2SFP

Reyee Ruijie RG-NBS3100 Series Specifications

General

Brand	Reyee
Model	Ruijie RG-NBS3100 Series
Category	Switch
Language	English
