Ruijie RG-NBS3100 Series Switches Hardware Installation and Reference Guide Product Overview
13

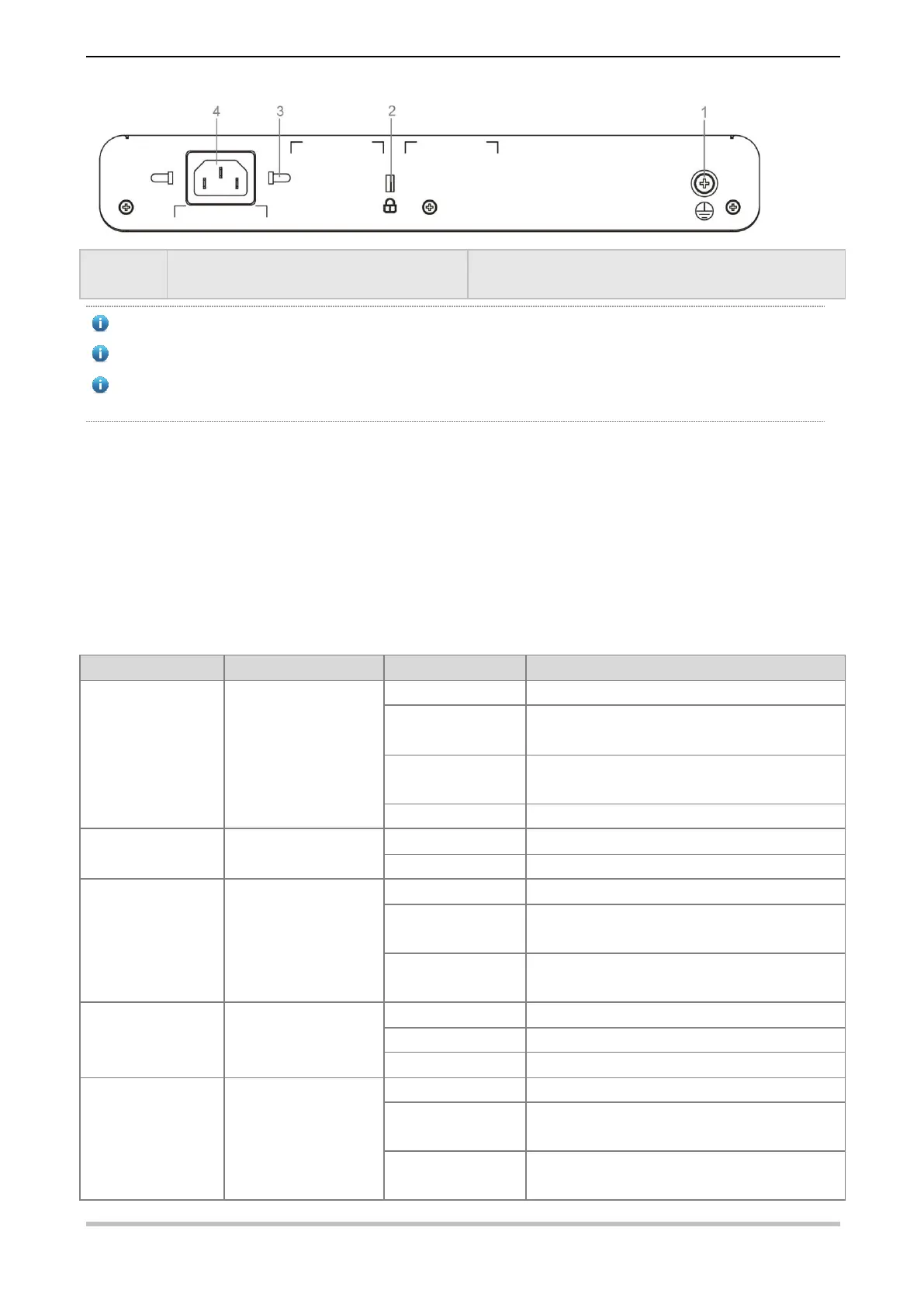

Note:
1. Protective earthing terminal
2. Hole for anti-theft lock
3. Power cord retention clips
4. Three-hole AC power receptacle
This device relies on the separate protective earthing terminal.
The device installation must be permanently grounded.
The device must be intended to be used in a location with equipotential bonding (such as a telecommunication
center, a dedicated computer room, or a restricted access area).
Heat Dissipation
RG-NBS3100-8GT2SFP-P adopts natural heat dissipation, thereby ensuring normal operation. You must reserve 10
cm distance space at both sides and the back plane of the cabinet to allow airflow. It is recommended that you clean the
device once every three months to avoid dust from blocking vents.
LED
LED
Panel Identification
State
Meaning
System status LED
Status
Off
The switch is not receiving power.
Blinking green
(0.5 Hz)
The switch is running, but is not connected to
Ruijie Cloud.
Blinking green (10
Hz)
The switch is being upgraded or initialized.
Solid green
The switch is connected to Ruijie Cloud.
Port mode LED
LED Mode
Off
Switching mode.
Solid green
PoE mode.
10/100/1000Base-T
Ethernet port status
LED
1–8
Off
The port is not connected.
Solid green
The port is connected at a rate of 10/100/1000
Mbps.
Blinking green
The port is receiving or transmitting traffic at a
rate of 10/100/1000 Mbps.
RJ45 port PoE
status LED
1–8
Off
PoE is not enabled.
Solid green
PoE is enabled. The port is operational.
Blinking green
The port has a PoE fault of overload.
SFP port status LED
9F–10F
Off
The port is not connected.
Solid green
The port is connected at a rate of 100/1000
Mbps.
Blinking green
The port is receiving or transmitting traffic at a
rate of 100/1000 Mbps.
