Ruijie RG-NBS3100 Series Switches Hardware Installation and Reference Guide Product Overview
3

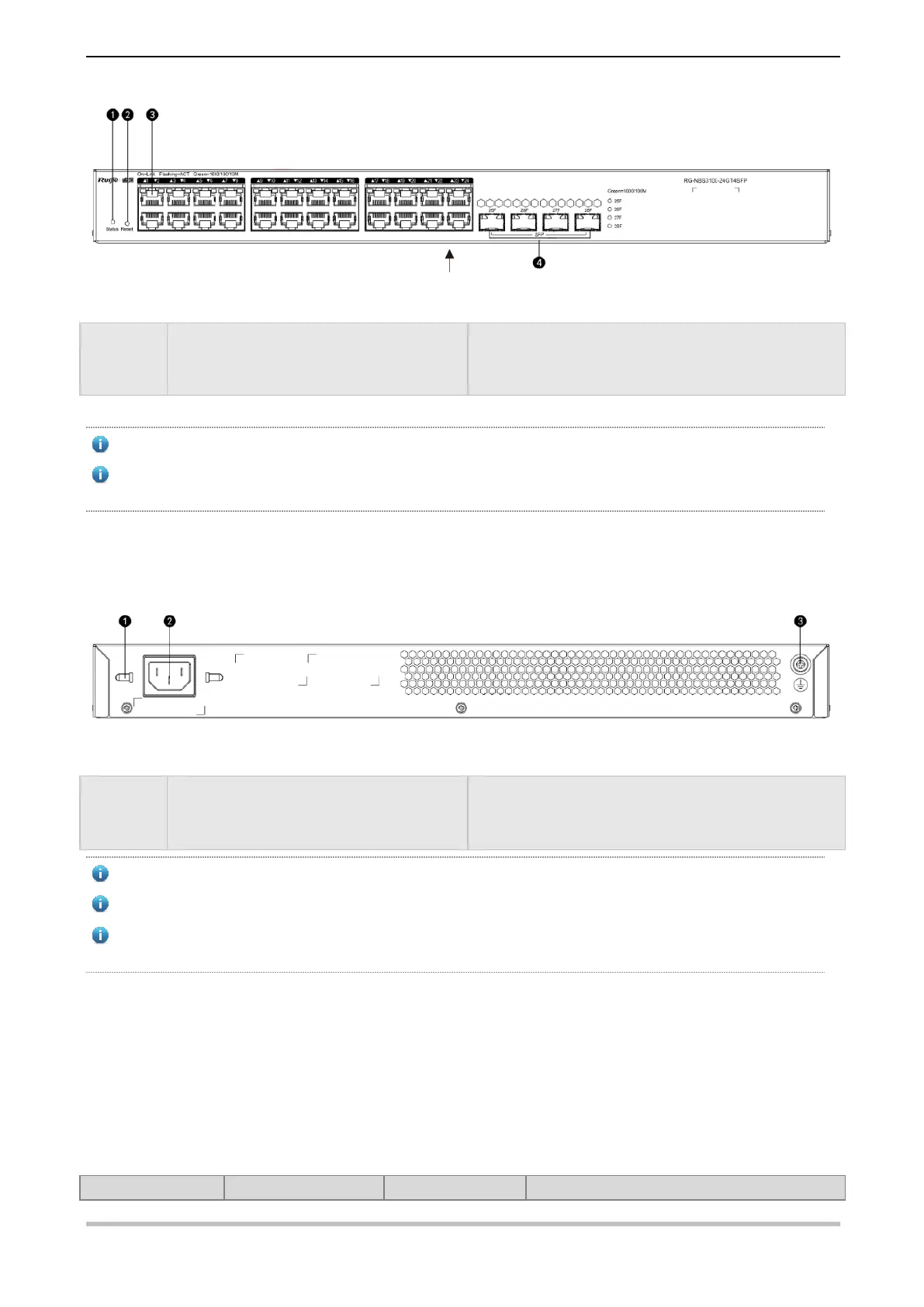

1. System status LED
2. Reset button
3. 10/100/1000 Base-T Ethernet port
4. 1000Base-X SFP port
5. Nameplate on the bottom of the device
The switch restarts after the reset button is pressed for less than 2 seconds.
The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the
status LED blinks).
Back Panel
Figure 1-3 Back Panel of the RG-NBS3100-24GT4SFP
1. Power cord retention clips
2. Three-hole AC power receptacle
3. Protective earthing terminal
Nameplate (on the bottom of the device)
This device relies on the separate protective earthing terminal.
The device installation must be permanently grounded.
The device must be intended to be used in a location with equipotential bonding (such as a telecommunication
center, a dedicated computer room, or a restricted access area).
Heat Dissipation
The RG-NBS3100-24GT4SFP adopts natural heat dissipation, thereby ensuring normal operation. You must reserve 10
cm distance space at both sides and the back plane of the cabinet to allow airflow. It is recommended that you clean the
device once every three months to avoid dust from blocking vents.
