0108MLOOGBEN
4

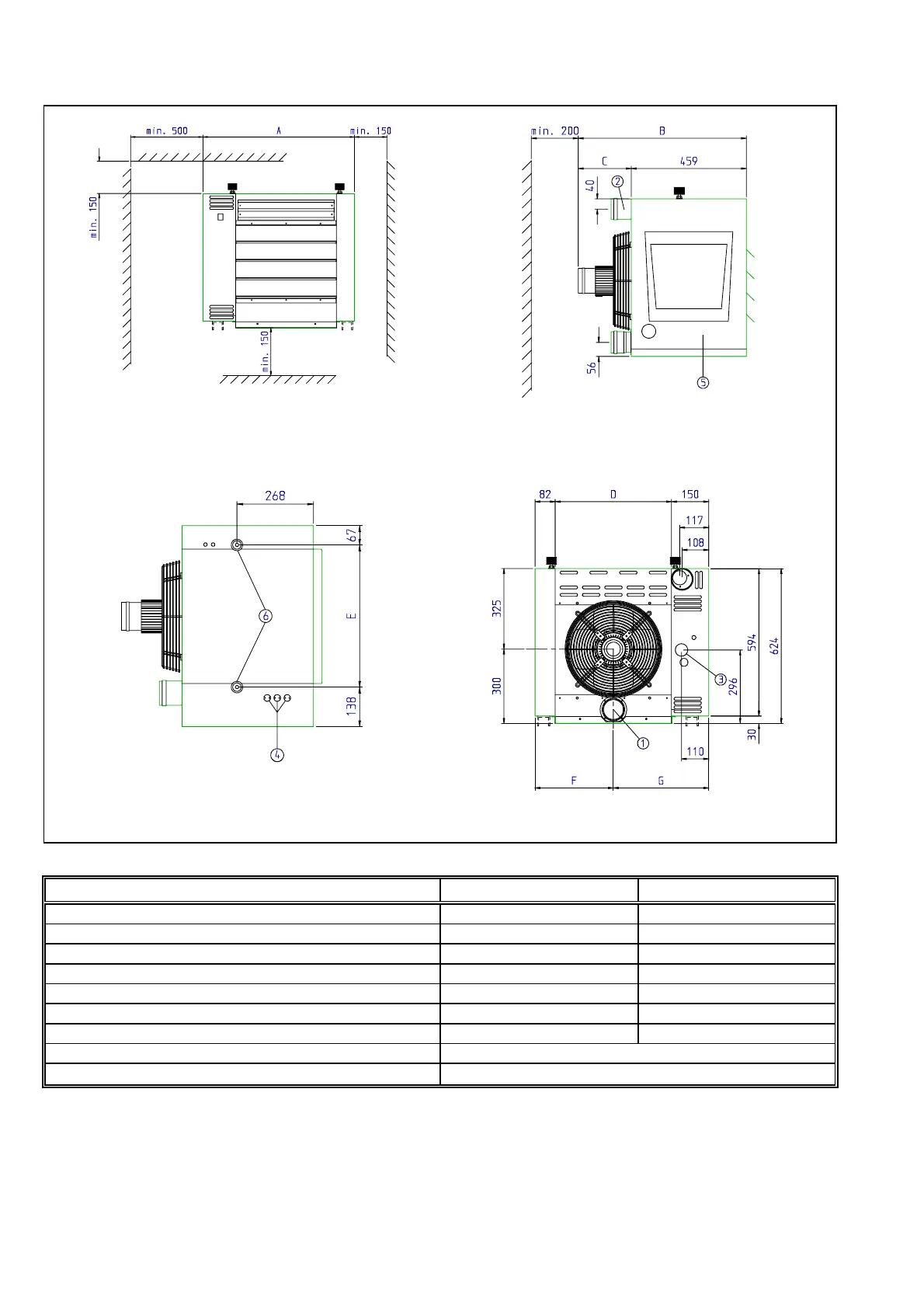

Figure 1. DIMENSIONS
FRONT VIEW SIDE VIEW CONTROLS SIDE
PLAN REAR VIEW
Table 2. DIMENSIONS Re: FIGURE 1
MODEL 1511 1515 / 1520
A Width overall 562 702
B Depth overall 639 670
C Depth of fan assembly 180 211
D Width of casing (burner access) 330 470
E Suspension socket centres 357 497
F Centre Combustion air inlet to opposite side 247 317
G Centre Combustion air inlet to controls side 315 385
Flue socket, diameter internal
80,0
Combustion air inlet socket, diameter internal
80,0
Legend figure 1.
1. Combustion air inlet socket
2. Flue connection socket
3. Gas inlet connection
4. Electrical & controls inlets
5. Service access panel
6. Suspension sockets 1" BSPT
