0108MLOOGBEN
5
SECTION 3 INSTALLING
3.1 Figure 2 shows the clearances necessary to ensure
safety for combustibles and service access.
3.2 Ensure that the structural elements which will be
used to suspend or support the appliance, are
adequate to carry the weight of the appliance and its
ancillary components i.e. ue system.
3.3 The location where the air heater is to be installed,
must provide sucient space around the heater for
servicing and clearances for safety.
3.4 Ensure that the air heater is installed in a level plain.
3.5 Base mounting is optional; see gure 2 & 3. The air
heater must be fastened securely to any base
mounting arrangement. Note especially that the
burner access on the ML series air heaters is via the
base of
the appliance. A space of at least 500 mm
must be allowed for this purpose. Base support
elements must be installed respecting the criteria
shown in gure 3.
3.6 Two threaded sockets are supplied on top of
the appliance for suspension purposes. An alternative
location for the socket on the controls side is
available which serves if used, for better balancing.
Alternatively the sockets can be removed and other
forms of suspension employed.
Specially designed wall brackets are available from
your Reznor dealer.
3.7 After suspension, the air heater should be rigid so as
to avoid placing a strain on the ue system, gas
services and electrical wiring.

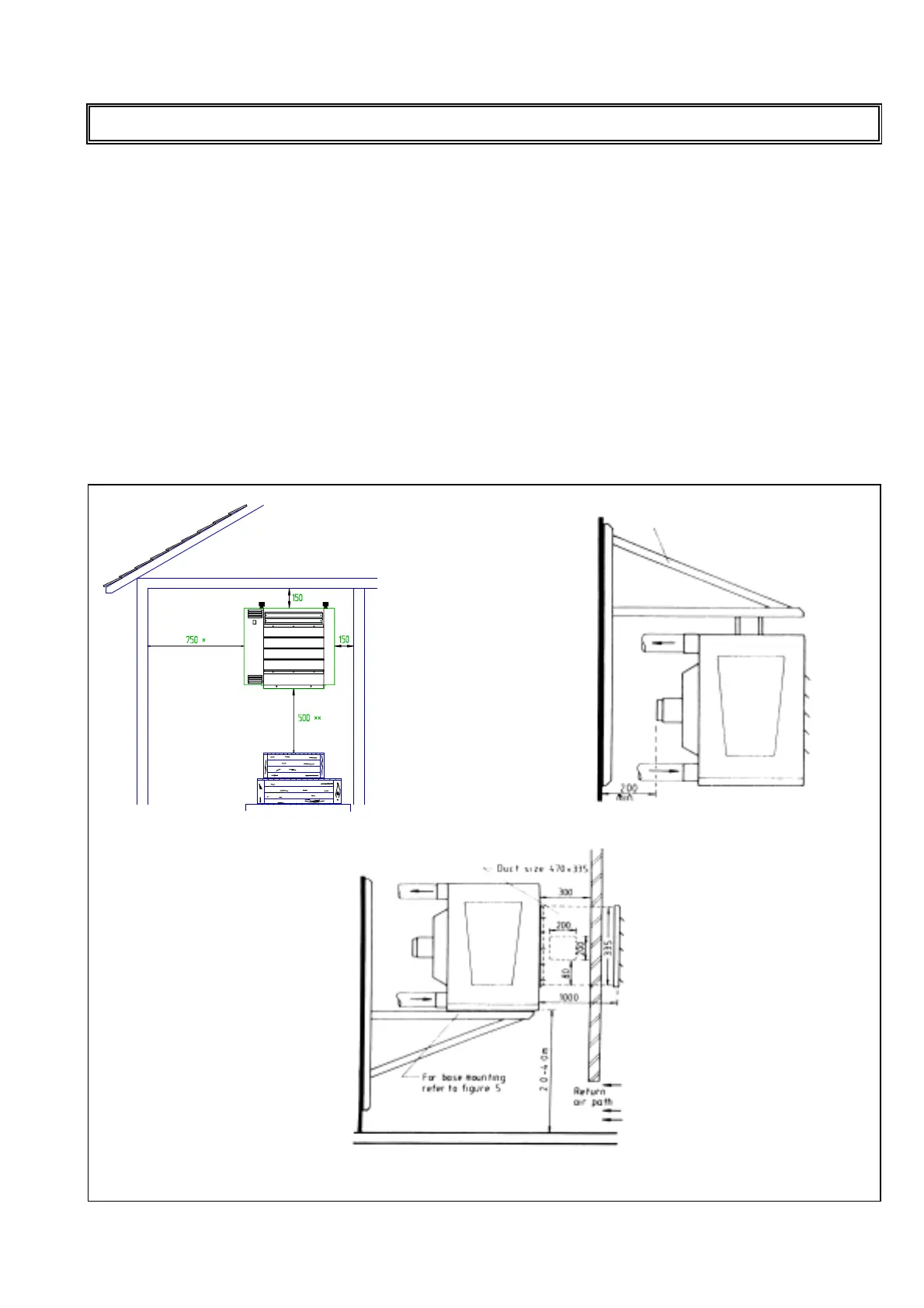

Figure 2. INSTALLATION CLEARANCES, SUSPENSION & MOUNTING
Reznor wall bracket part number 80 28006
noisnepsuSsecnaraelc noitallatsnI
Base mounting on wall bracket Showing stub duct for blow through a wall application
200
Min
