Reznor RDH Series User Manual

1307SDH_RDH--EN,page 7/32

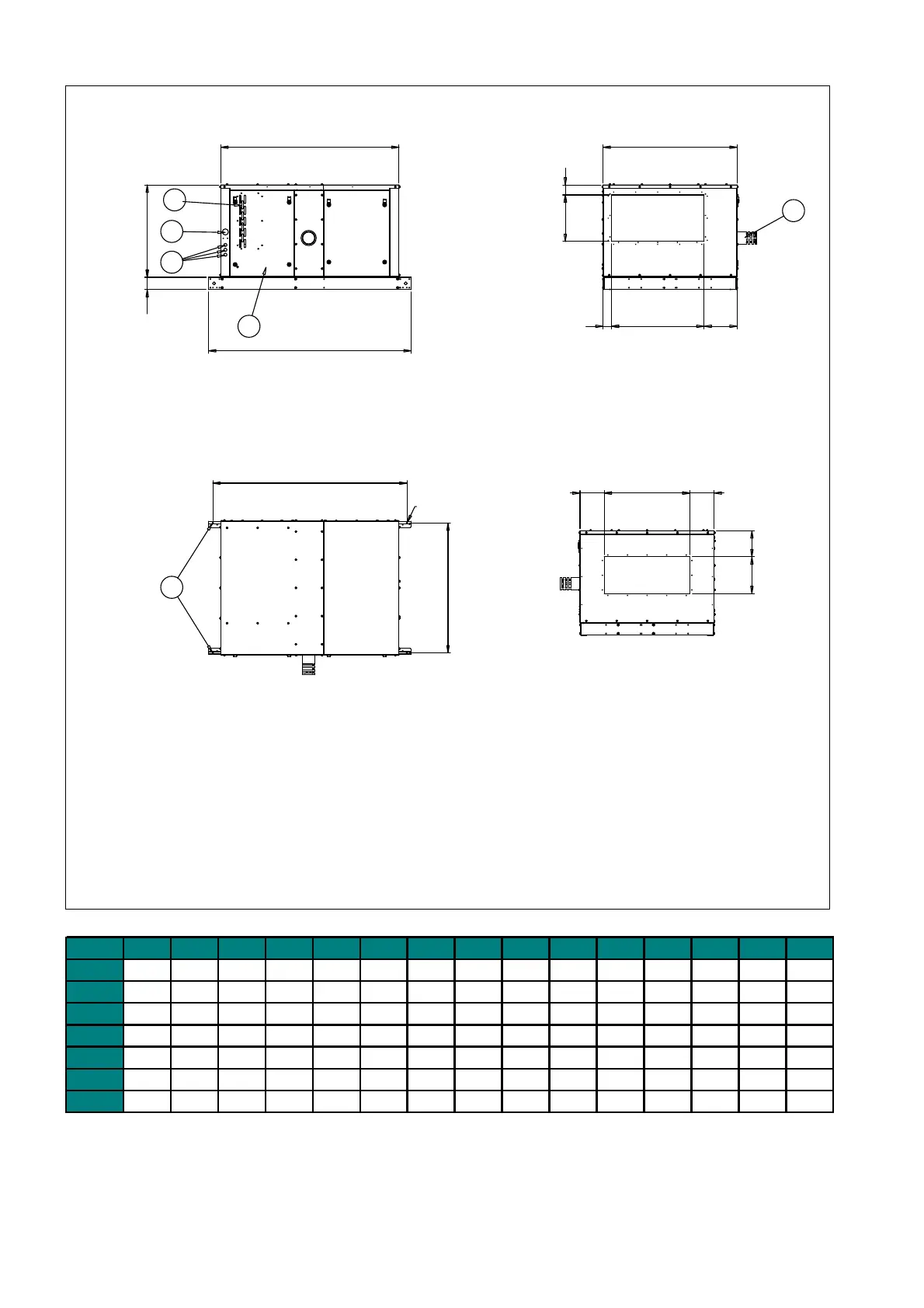

Figure 2.3 : RDH model- Standard
OMO
LP
100 N
E1
C1 K
TS
UQR
A1
Suspension Points
B
Suspension Points
dia 11
1. Combustion Inlet Air.
2. Combustion Outlet Air.
3. Electrical Connections.
4. Gas Connection.
5. Service Panel.
6. Suspension Points.
All Dimensions are in mm.
Tolernace All Dimensions `3 mm.
4
3
5
2
6
SIDE VIEW
FRONT VIEW
TOP VIEW
REAR VIEW
1
RDH A1 B C1 E1 K L M N O P Q R S T U
025 1584 806 1454 1654 840 212 600 753 120 300 502 270 380 81 68
030
1584 1060 1454 1654 1094 212 700 753 197 300 756 270 380 81 68
035
1584 1060 1454 1654 1094 212 700 753 197 300 756 270 380 81 68
043
1852 806 1722 1922 840 229 600 988 120 500 502 270 615 81 68
055
1852 806 1722 1922 840 229 600 988 120 500 502 270 615 81 68
073
1852 1234 1722 1922 1268 229 1000 988 134 500 629 365 615 81 274
100
1852 1434 1722 1922 1468 229 1200 988 134 500 820 373 615 81 275
1. Combustion inlet air
2. Combustion outlet air
3. Electrical connections
4. Gas connection
5. Service panel
6. Suspension points
All dimensions are in mm.
Tolerance all dimensions 3mm
